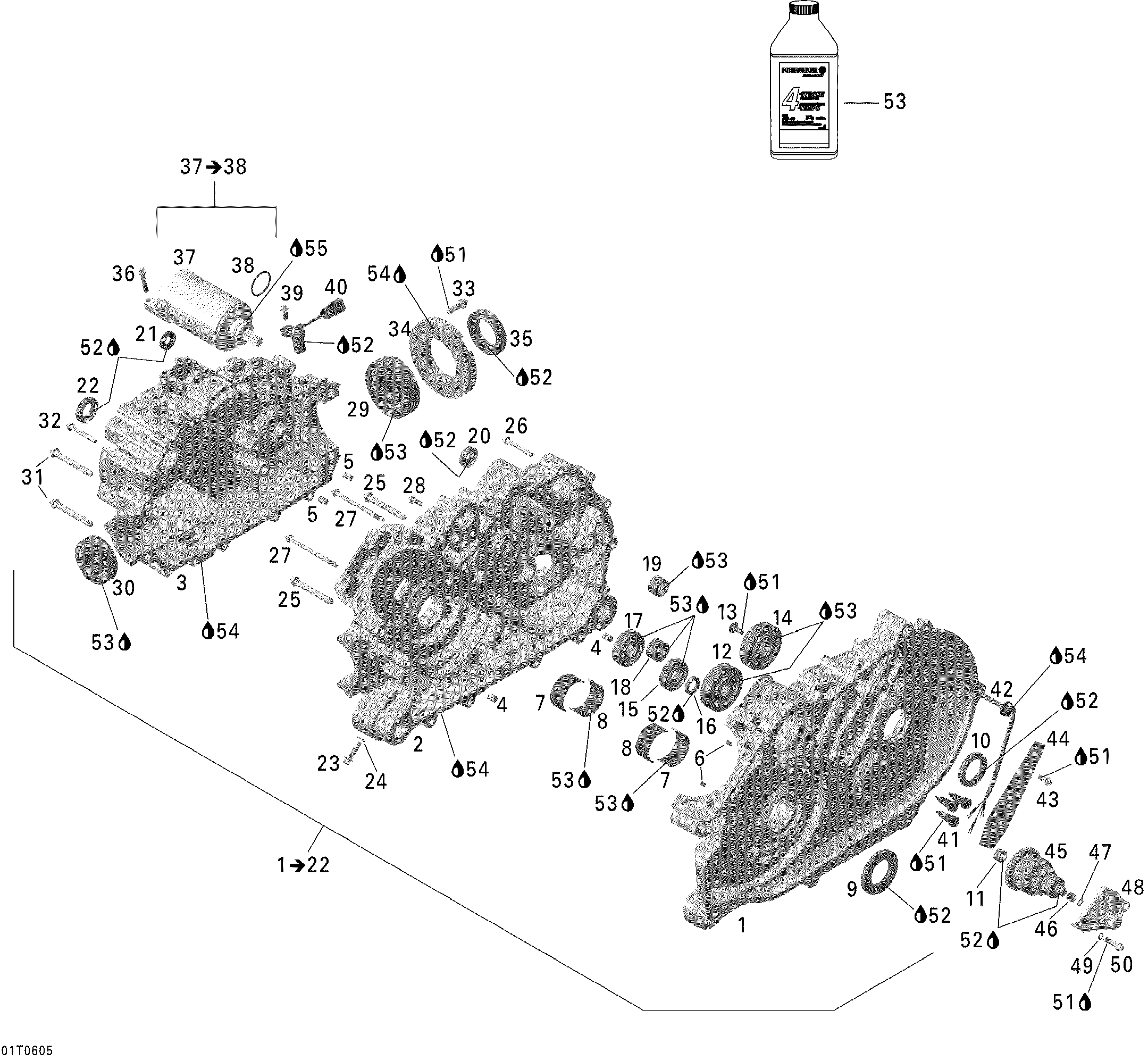

01- Crankcase для BRP Outlander 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1420296761 Crankcase Ass'y. Includes 1 to 22Crankcase Ass'y. Includes 1 to 22
-
4420632010 Pin M8 X 12Pin M8 X 12
-
5420632010 Pin M8 X 12Pin M8 X 12
-
6420929650 Drive Pin 5 X 10Drive Pin 5 X 10
-
7420233960 Plain BearingPlain Bearing
-
8420233965 Plain BearingPlain Bearing
-
9420630152 Oil SealOil Seal
-
10420950087 Oil SealOil Seal
-
11420232480 Needle BushingNeedle Bushing
-
12420632290 Ball Bearing 6403Ball Bearing 6403
-
13420241526 Torx Screw M6 X 16Torx Screw M6 X 16
-
14420932825 Ball Bearing 6305Ball Bearing 6305
-
15420232291 Ball Bearing 6302Ball Bearing 6302
-
16420250130 Oil SealOil Seal
-
17420932430 Ball Bearing 6204Ball Bearing 6204
-
18420232085 Needle Bushing Nki 15/16Needle Bushing Nki 15/16
-
19420832240 Needle Bushing 18 X 24 X 16Needle Bushing 18 X 24 X 16
-
20420250450 Oil SealOil Seal
-
21420650310 Oil SealOil Seal
-
22420930392 Oil SealOil Seal
-
23420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
24420950141 Sealing RingSealing Ring
-
25420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
26420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
27420440342 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
28420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
29420632280 Ball Bearing 6405Ball Bearing 6405
-
30420932825 Ball Bearing 6305Ball Bearing 6305
-
31420440342 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
32420440322 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
33420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
34420610243 Bearing CoverBearing Cover
-
35420650682 Oil SealOil Seal
-
36420440272 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
37420684280 Electrical Starter Ass'Y. Includes 37 to 38Electrical Starter Ass'Y. Includes 37 to 38
-
39420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
40420265622 Speed SensorSpeed Sensor
-
41420241856 Contact Screw M10Contact Screw M10
-
42420265831 Wiring HarnessWiring Harness
-
43420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
44420251290 Cover SheetCover Sheet
-
45420684050 Starter Drive Ass'YStarter Drive Ass'Y
-
46420938204 SpringSpring
-
47420927571 WasherWasher
-
48420610890 Reduction Cover GearReduction Cover Gear
-
49420845020 Spring WasherSpring Washer
-
50420240031 Hex Screw M6 X 25Hex Screw M6 X 25
-
51293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
52293550030 Grease, Super LubeGrease, Super Lube
-
53293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
54293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
55420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
