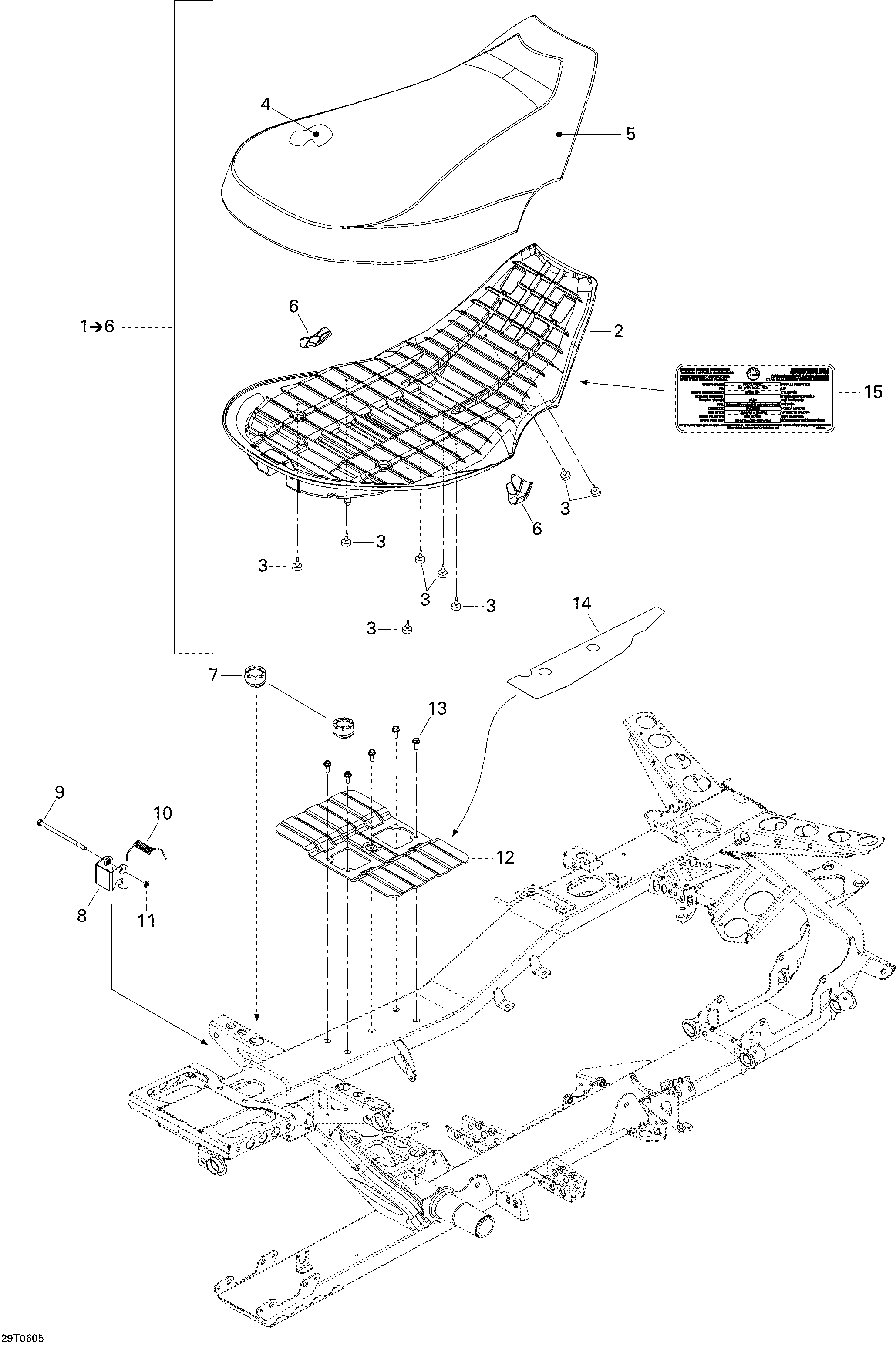

09- Seat для BRP Outlander 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1708000471 Seat Ass'y. Includes 1 to 6Seat Ass'y. Includes 1 to 6
-
3708000125 Rubber StopperRubber Stopper
-
6708000127 Seat Corner, BlackSeat Corner, Black
-
7708000323 Rubber BumperRubber Bumper
-
8708000144 Latch, BlackLatch, Black
-
9230061044 Hex Screw M6 X 110Hex Screw M6 X 110
-
10708000369 SpringSpring
-
11732610072 Push NutPush Nut
-
12708000425 Seat ReinforcementSeat Reinforcement
-
13210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
14708000198 Reflecting SheetReflecting Sheet
-
15704901033 Emission LabelEmission Label
