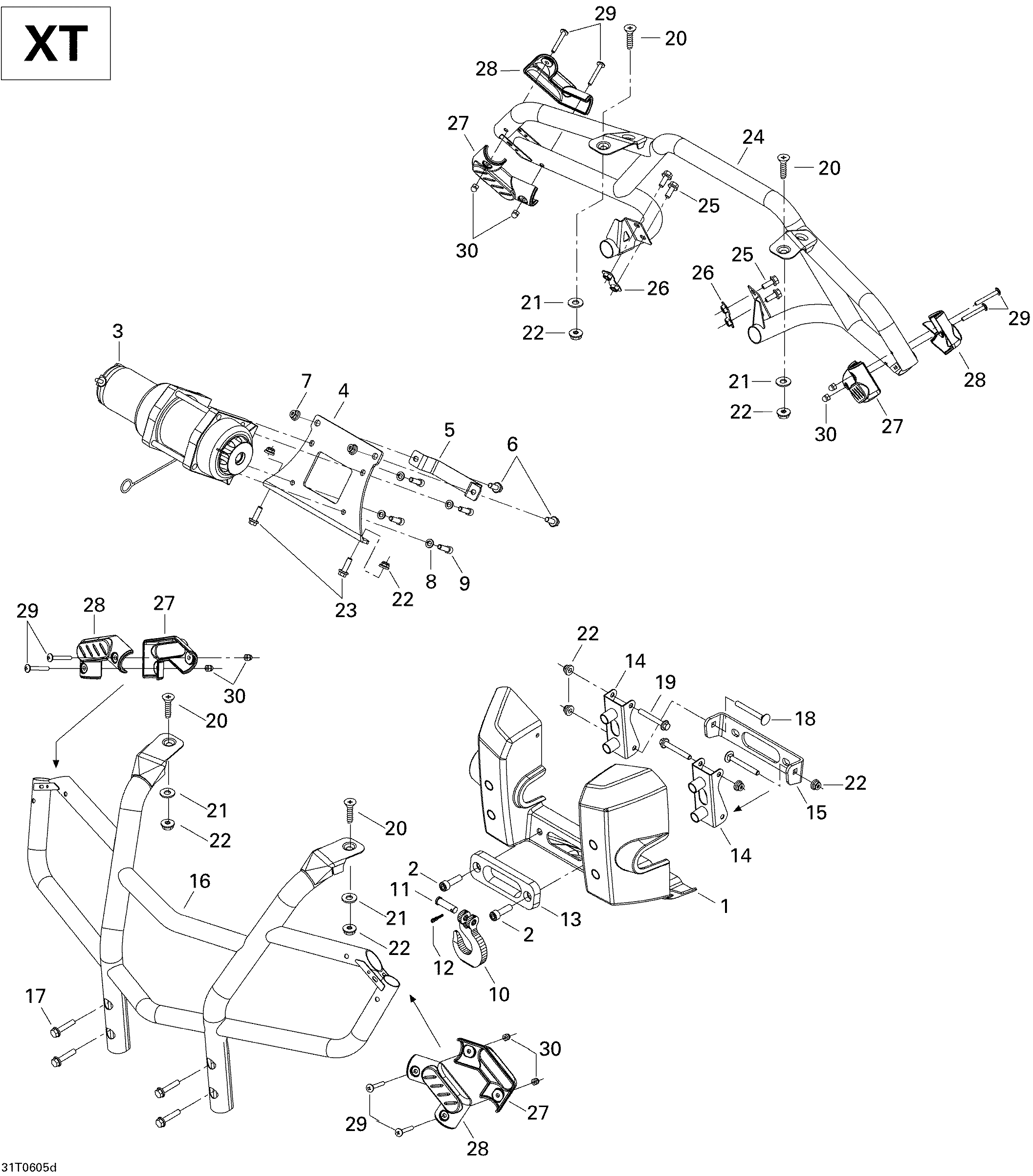

09- Body And Accessories XT для BRP Outlander 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1705001531 Front Protection Plate. XTFront Protection Plate. XT
-
2205003544 Socket Screw M10 X 35. XTSocket Screw M10 X 35. XT
-
3705000839 Winch. XTWinch. XT
-
4705001351 Mounting Plate, Black. XTMounting Plate, Black. XT
-
5705001460 Winch Bracket, Black. XTWinch Bracket, Black. XT
-
6207682544 Hex Flanged Screw M8 X 25. XTHex Flanged Screw M8 X 25. XT
-
7233281414 Hex Flanged Elastic Nut M8. XTHex Flanged Elastic Nut M8. XT
-
8234181401 Lock Washer 8 mm. XTLock Washer 8 mm. XT
-
9250000041 Socket Screw 5/16''-18 X 1''. XTSocket Screw 5/16''-18 X 1''. XT
-
10705000618 Hook. XTHook. XT
-
11250400021 Clevis Pin. XTClevis Pin. XT
-
12250400022 Cotter Pin. XTCotter Pin. XT
-
13705000194 Cable Guide. XTCable Guide. XT
-
14705001058 Bumper Anchoring. XTBumper Anchoring. XT
-
15705001073 Winch Bracket. XTWinch Bracket. XT
-
16705001964 Front Bumper. XTFront Bumper. XT
-
17207584044 Hex Flanged Screw M8x40, Scotch Grip. XTHex Flanged Screw M8x40, Scotch Grip. XT
-
18207787044 Carriage Bolt M8 X 70. XTCarriage Bolt M8 X 70. XT
-
19207686044 Hex Flanged Screw M8 X 60. XTHex Flanged Screw M8 X 60. XT
-
20235482084 Torx Screw M8 X 20. XTTorx Screw M8 X 20. XT
-
21234082410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
22233281414 Hex Flanged Elastic Nut M8. XTHex Flanged Elastic Nut M8. XT
-
23207682544 Hex Flanged Screw M8 X 25. XTHex Flanged Screw M8 X 25. XT
-
24705001973 Rear Bumper. XTRear Bumper. XT
-
25207582044 Hex Flanged Screw M8 X 20, Scotch Grip. XTHex Flanged Screw M8 X 20, Scotch Grip. XT
-
26705001075 Attachment Plate. XTAttachment Plate. XT
-
27705001042 Male Cap. XTMale Cap. XT
-
28705001043 Female Cap. XTFemale Cap. XT
-
29250000215 Torx Screw M6 X 45. XTTorx Screw M6 X 45. XT
-
30232361493 Cap Nut M6. XTCap Nut M6. XT
