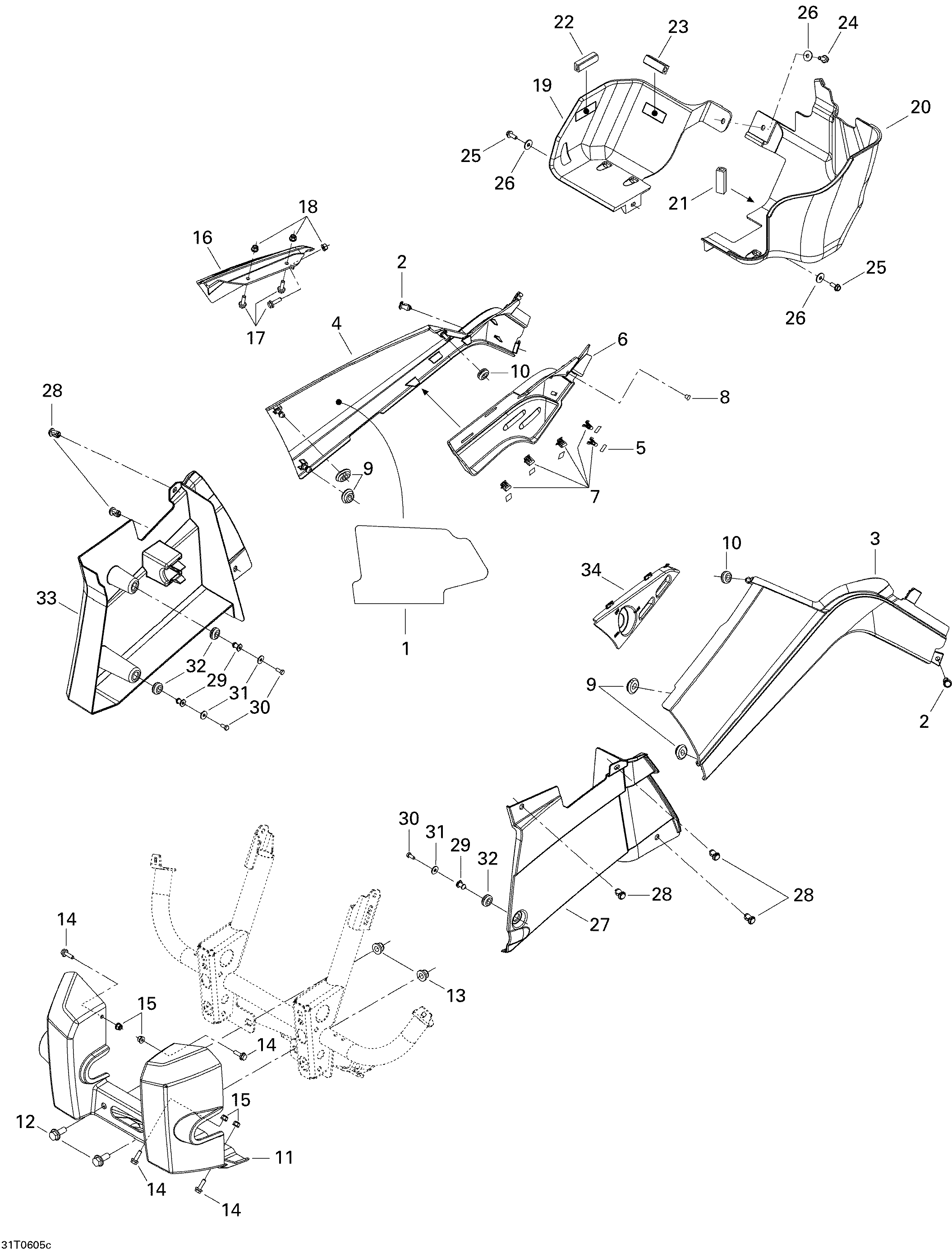

09- Body And Accessories для BRP Outlander 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1705000750 Reflective SheetReflective Sheet
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3705000438 LH Side Panel. RedLH Side Panel. Red
-
3705000751 LH Side Panel. GreenLH Side Panel. Green
-
3705000863 LH Side Panel. YellowLH Side Panel. Yellow
-
3705002254 LH Side Panel. CamoLH Side Panel. Camo
-
4705000439 RH Side Panel. RedRH Side Panel. Red
-
4705000752 RH Side Panel. GreenRH Side Panel. Green
-
4705000865 RH Side Panel. YellowRH Side Panel. Yellow
-
4705002256 RH Side Panel. CamoRH Side Panel. Camo
-
5705000809 Reflective SheetReflective Sheet
-
6705001685 Muffler CoverMuffler Cover
-
7517302785 ClipClip
-
8293830005 Rubber Plug, BlackRubber Plug, Black
-
9705005156 Oblong WasherOblong Washer
-
10705002149 GrommetGrommet
-
11705001530 Front Protection Plate. StandardFront Protection Plate. Standard
-
12207602544 Hex Flanged Screw M10 X 25. StandardHex Flanged Screw M10 X 25. Standard
-
13233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
16705001529 Lever IndicatorLever Indicator
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19705000554 RH Tank ProtectorRH Tank Protector
-
20705002176 LH Tank ProtectorLH Tank Protector
-
21293200093 Neoprene SealNeoprene Seal
-
22293200093 Neoprene SealNeoprene Seal
-
23293200093 Neoprene SealNeoprene Seal
-
24207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
25210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
26391302000 Flat WasherFlat Washer
-
27705000652 LH Inner FenderLH Inner Fender
-
28293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
29517303439 KnobKnob
-
30250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
31391301600 WasherWasher
-
32293720053 GrommetGrommet
-
33705000653 RH Inner FenderRH Inner Fender
-
34705001691 Valve SupportValve Support
