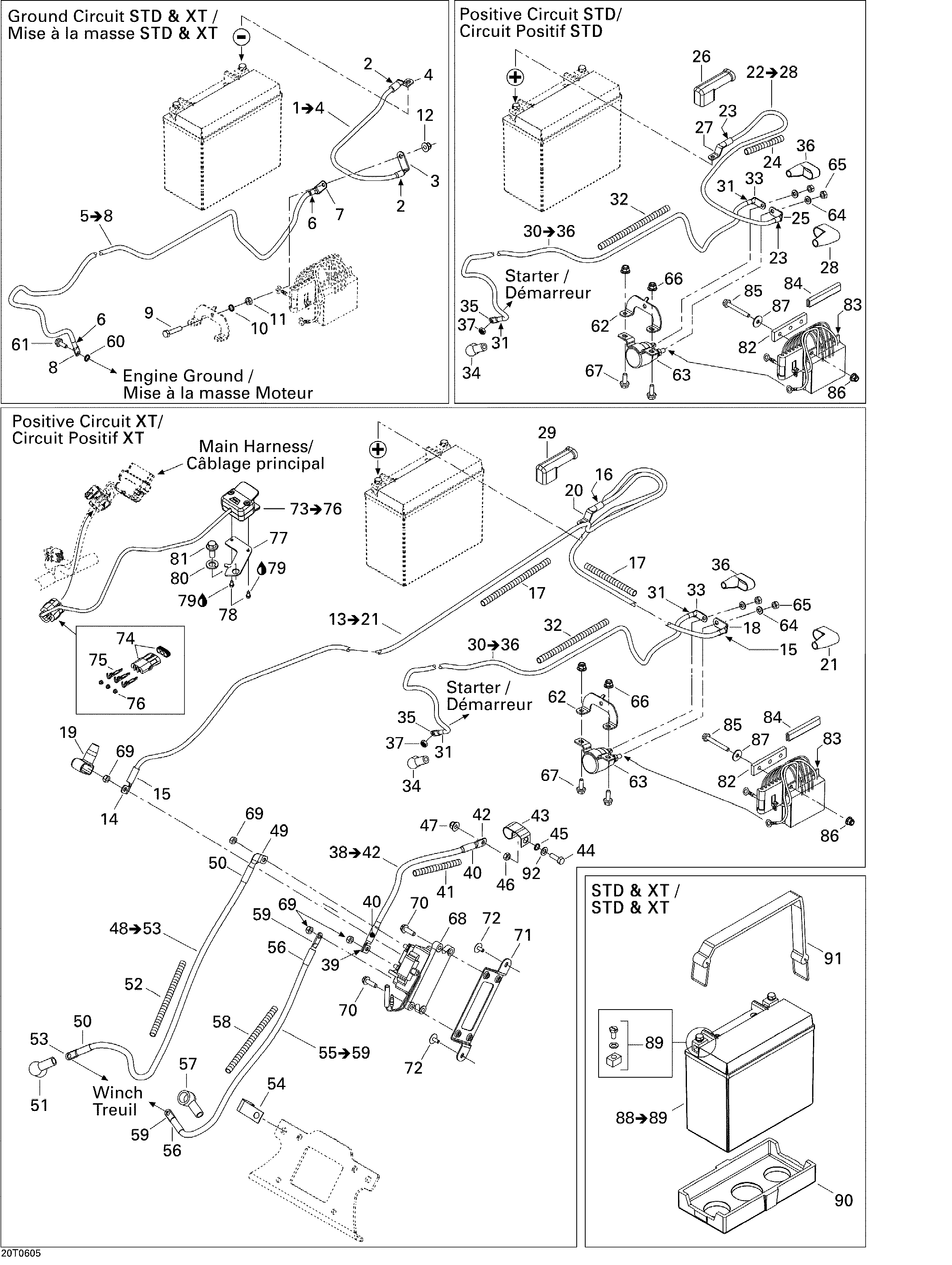

10- Electrical System XT для BRP Outlander 400 XT 4 X 4 - 2006
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 4Ground Cable, Battery/frame. Includes 1 to 4
-
2710000483 Shrink TubingShrink Tubing
-
3710000508 Open BarrelOpen Barrel
-
4710000518 Open BarrelOpen Barrel
-
5710000831 Ground Cable. Includes 5 to 8Ground Cable. Includes 5 to 8
-
6710000483 Shrink TubingShrink Tubing
-
7710000508 Open BarrelOpen Barrel
-
8710000530 TerminalTerminal
-
9207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
10234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
11232061414 Hex Nut M6Hex Nut M6
-
12233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
13710000832 Positive Cable. XT, Includes 13 to 21Positive Cable. XT, Includes 13 to 21
-
14710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
15710000483 Shrink Tubing. XTShrink Tubing. XT
-
16275500578 Shrink Tubing. XTShrink Tubing. XT
-
17710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
18710000508 Open Barrel. XTOpen Barrel. XT
-
19710000522 Protector Cap. XTProtector Cap. XT
-
20710000519 Open Barrel. XTOpen Barrel. XT
-
21710000902 Protector Cap. XTProtector Cap. XT
-
29710000516 Protector Cap. XTProtector Cap. XT
-
30710000833 Positive Cable, Starter Relay/starter. Includes 30 to 36Positive Cable, Starter Relay/starter. Includes 30 to 36
-
31710000483 Shrink TubingShrink Tubing
-
32710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
33710000508 Open BarrelOpen Barrel
-
34710000526 Protector CapProtector Cap
-
35710000530 TerminalTerminal
-
36710000902 Protector CapProtector Cap
-
37232561414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
38710000455 Negative Cable. XT, Includes 38 to 42Negative Cable. XT, Includes 38 to 42
-
39710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
40710000483 Shrink Tubing. XTShrink Tubing. XT
-
41710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
42710000530 Terminal. XTTerminal. XT
-
43705600311 Clamp. XTClamp. XT
-
44207162544 Hex Cap Screw M6 X 25. XTHex Cap Screw M6 X 25. XT
-
45234461608 External Serrated Lock Washer 6 mm. XTExternal Serrated Lock Washer 6 mm. XT
-
46232061414 Hex Nut M6. XTHex Nut M6. XT
-
47233261414 Hex Flanged Elastic Nut M6. XTHex Flanged Elastic Nut M6. XT
-
48710000451 Winch Positive Cable, Blue. XT, Includes 48 to 53Winch Positive Cable, Blue. XT, Includes 48 to 53
-
49710000476 Open Barrel, 6.6 mm. XTOpen Barrel, 6.6 mm. XT
-
50710000483 Shrink Tubing. XTShrink Tubing. XT
-
51710000494 Protector Cap. XTProtector Cap. XT
-
52710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
53710000530 Terminal. XTTerminal. XT
-
54705600311 Clamp. XTClamp. XT
-
55710000454 Winch Positive Cable, Yellow. XT, Includes 55 to 59Winch Positive Cable, Yellow. XT, Includes 55 to 59
-
56710000483 Shrink Tubing. XTShrink Tubing. XT
-
57710000494 Protector Cap. XTProtector Cap. XT
-
58710000497 Protector Tube, 9 mm. XTProtector Tube, 9 mm. XT
-
59710000530 Terminal. XTTerminal. XT
-
60234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
61207561644 Hex Flanged Screw M6 X 16, Scotch GripHex Flanged Screw M6 X 16, Scotch Grip
-
62705201325 Starter Relay SupportStarter Relay Support
-
63515176011 Starter RelayStarter Relay
-
64234161601 Lock Washer Helical M6Lock Washer Helical M6
-
65232061600 Hex Nut M6Hex Nut M6
-
66233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
67207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
68710000826 Winch Solenoid. XTWinch Solenoid. XT
-
69232561414 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
70210262080 Hex Forming Screw M6 X 20. XTHex Forming Screw M6 X 20. XT
-
71710000798 Relay Support, Winch. XTRelay Support, Winch. XT
-
72390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
73710000827 Winch Interrupter. XT, Includes 73 to 76Winch Interrupter. XT, Includes 73 to 76
-
74278000281 Female Terminal Housing, 3 Circuits. XTFemale Terminal Housing, 3 Circuits. XT
-
75278000222 Male Terminal. XTMale Terminal. XT
-
76278001065 Wire Seal. XTWire Seal. XT
-
77710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
78250000153 Hex Cap Screw 6-32 X 1/4''. XTHex Cap Screw 6-32 X 1/4''. XT
-
79293800060 Loctite 243, 10 ml. XTLoctite 243, 10 ml. XT
-
80234101601 Helicoidal Lock Washer M10. XTHelicoidal Lock Washer M10. XT
-
81250000029 Hex Screw M10 X 16. XTHex Screw M10 X 16. XT
-
82710000912 SpacerSpacer
-
83710000907 Voltage Regulator A'ssyVoltage Regulator A'ssy
-
84271000110 Protection TrimProtection Trim
-
85207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
86233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
87224061201 Flat WasherFlat Washer
-
88410922990 Battery, 18 Amperes. Includes 88 to 89Battery, 18 Amperes. Includes 88 to 89
-
89295500849 Battery Fastener KitBattery Fastener Kit
-
90710000279 Insulator PadInsulator Pad
-
91293850097 Rubber StrapRubber Strap
-
92224061121 Flat Washer. XTFlat Washer. XT
