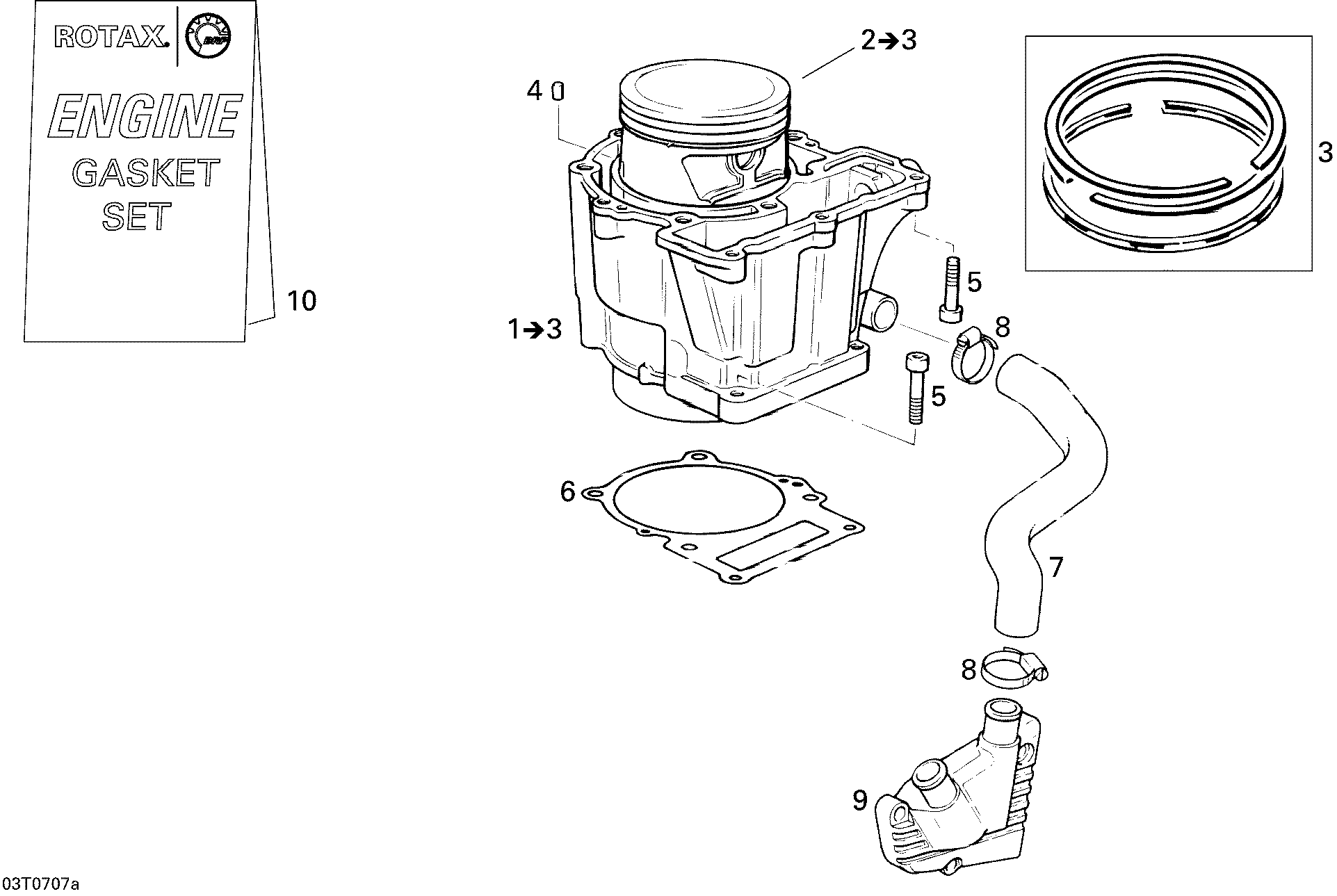

01- Cylinder для BRP DS 650 X - 2007
-
№АртикулНазвание
-
1420223906 Cylinder With Piston Ass'Y. Includes 1 to 3Cylinder With Piston Ass'Y. Includes 1 to 3
-
2420295185 Piston Ass'Y. Includes 2 to 3Piston Ass'Y. Includes 2 to 3
-
3420295184 Piston Ring SetPiston Ring Set
-
4420929650 Drive Pin, 5 X 10Drive Pin, 5 X 10
-
5205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420650010 GasketGasket
-
7420222450 Water Cooling HoseWater Cooling Hose
-
8420951870 ClampClamp
-
9420211270 Waterpump CoverWaterpump Cover
-
10420294768 Gasket SetGasket Set
