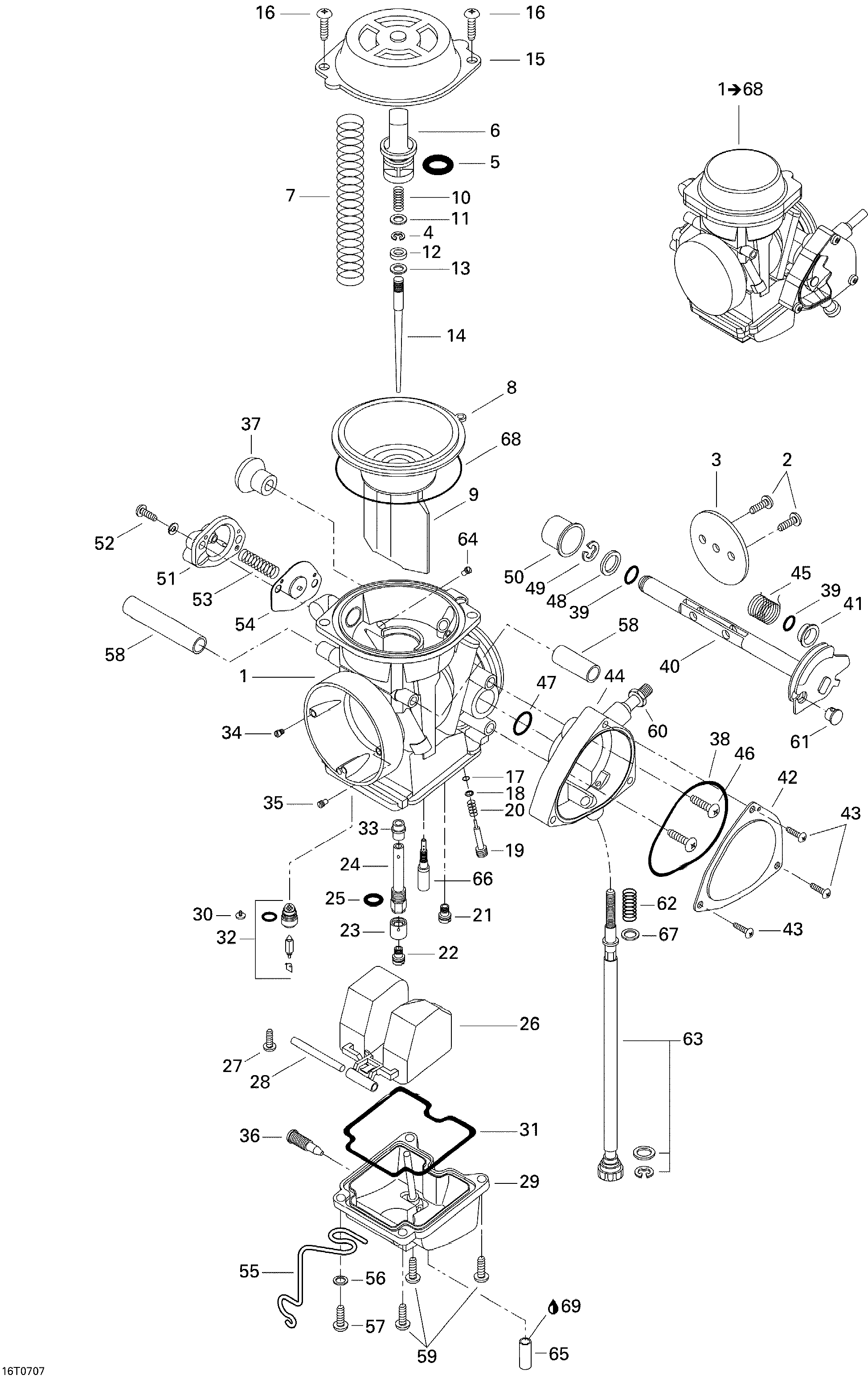

02- Carburetor для BRP DS 650 X - 2007
-
№АртикулНазвание
-
1707200142 Carburator Bsr42-4. Includes 1 to 68Carburator Bsr42-4. Includes 1 to 68
-
4404152200 E-RingE-Ring
-
5270500144 O-RingO-Ring
-
6707200067 HolderHolder
-
7707200147 SpringSpring
-
8707200113 DiaphragmDiaphragm
-
9707200114 Piston ValvePiston Valve
-
10707200071 SpringSpring
-
11707200072 WasherWasher
-
12707200065 RingRing
-
13707200064 WasherWasher
-
14707200137 Needle J8-6Bcy22-60Needle J8-6Bcy22-60
-
15707200116 Diaphragm CoverDiaphragm Cover
-
16404161903 ScrewScrew
-
17404139900 O-RingO-Ring
-
18707200018 WasherWasher
-
19707200117 AdjusterAdjuster
-
20707200078 SpringSpring
-
21707200108 Starter Jet 45.0Starter Jet 45.0
-
22270500411 Main Jet 165Main Jet 165
-
23707200148 RingRing
-
24707200080 Jet HolderJet Holder
-
25270500119 O-RingO-Ring
-
26707200103 Float Ass'yFloat Ass'y
-
27404138600 ScrewScrew
-
28404123400 PinPin
-
29707200119 Float Body Ass'yFloat Body Ass'y
-
30404161861 ScrewScrew
-
31707200083 O-RingO-Ring
-
32707200139 Valve-Needle 3.0Valve-Needle 3.0
-
33707200121 Jet-needleJet-needle
-
34707200122 Pilot Jet 110Pilot Jet 110
-
35707200123 Jet 120Jet 120
-
36707200024 ScrewScrew
-
37707200124 Plunger Ass'YPlunger Ass'Y
-
38707200092 O-RingO-Ring
-
42707200093 CoverCover
-
43707200091 ScrewScrew
-
51707200105 Cover Ass'yCover Ass'y
-
52404901400 ScrewScrew
-
53707200129 SpringSpring
-
54707200106 Diaphragm Ass'yDiaphragm Ass'y
-
55707200130 ClipClip
-
56707200101 WasherWasher
-
57404138700 ScrewScrew
-
58707200131 HoseHose
-
59404159300 ScrewScrew
-
60707200132 NutNut
-
61707200058 Cable GuideCable Guide
-
62404101700 SpringSpring
-
63707200140 Cable-AdjusterCable-Adjuster
-
64707200134 Air Jet 1.3Air Jet 1.3
-
65707200135 HoseHose
-
66707200136 Jet-Pilot 40Jet-Pilot 40
-
67707200141 WasherWasher
-
68404162023 RingRing
-
69413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
