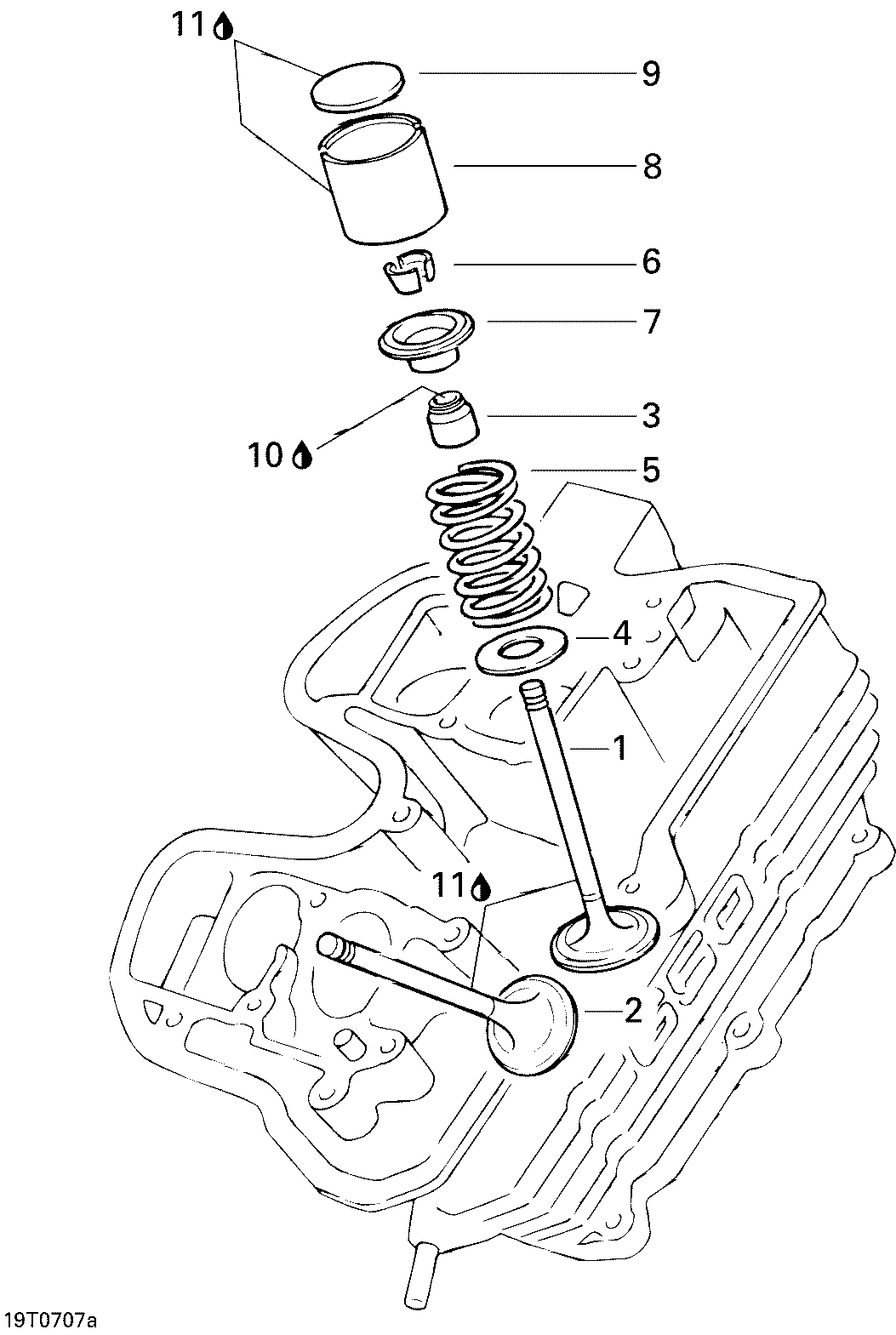

01- Valve 1 для BRP DS 650 X - 2007
-
№АртикулНазвание
-
1420253770 Inlet ValveInlet Valve
-
2420253780 Exhaust ValveExhaust Valve
-
3420230510 SealSeal
-
4420227982 Thrust WasherThrust Washer
-
5420239290 Valve SpringValve Spring
-
6420253645 Valve CotterValve Cotter
-
7420253760 Valve Spring RetainerValve Spring Retainer
-
8420253545 Valve TappetValve Tappet
-
9420253741 Shim 2,1''Shim 2,1''
-
9420253742 Shim 2,2''Shim 2,2''
-
9420253743 Shim 2,3''Shim 2,3''
-
9420253744 Shim 2,4''Shim 2,4''
-
9420253745 Shim 2,5''Shim 2,5''
-
9420253746 Shim 2,6''Shim 2,6''
-
9420253747 Shim 2,7''Shim 2,7''
-
9420253748 Shim 2,8''Shim 2,8''
-
9420253749 Shim 2,9''Shim 2,9''
-
9420253752 Shim 2,15''Shim 2,15''
-
9420253753 Shim 2,25''Shim 2,25''
-
9420253754 Shim 2,35''Shim 2,35''
-
9420253755 Shim 2,45''Shim 2,45''
-
9420253756 Shim 2,55''Shim 2,55''
-
10293550030 Grease, Super LubeGrease, Super Lube
-
11293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
