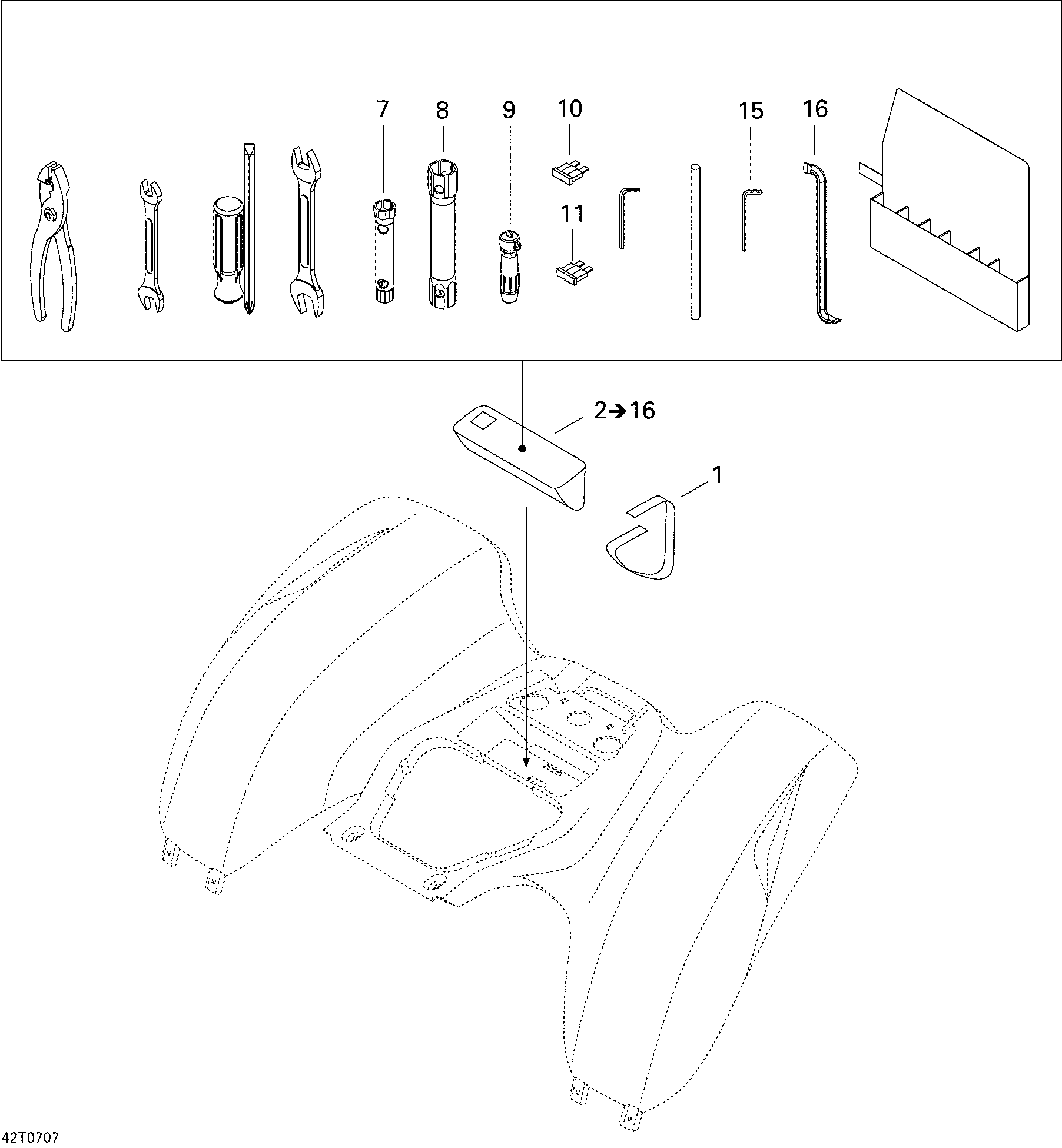

09- Rear Cargo Box для BRP DS 650 X - 2007
-
№АртикулНазвание
-
1708200008 StrapStrap
-
2529000000 Owner Tool Kit. Includes 2 to 16Owner Tool Kit. Includes 2 to 16
-
7529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
8295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
9704700003 Pressure GaugePressure Gauge
-
10278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
11278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
15529035781 Key Allen 3 mmKey Allen 3 mm
-
16708200032 Schock ScrewdriversSchock Screwdrivers
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Cylinder
- 01- Cylinder Head
- 01- Engine 1
- 01- Engine 2
- 01- Exhaust System
- 01- Valve 1
- 01- Valve 2
- 02- Air Intake
- 02- Carburetor
- 02- Fuel System
- 03- Ignition And Magneto
- 05- Clutch
- 05- Clutch Housing And Water Pump
- 05- Gear Shift
- 06- Brakes
- 07- Drive System, Front
- 07- Front Suspension
- 07- Steering System
- 08- Drive System, Rear
- 08- Rear Suspension
- 09- Body And Accessories
- 09- Body And Accessories
- 09- Body And Accessories
- 09- Decals
- 09- Frame
- • 09- Rear Cargo Box
- 09- Seat
- 10- Electrical Accessories
- 10- Electrical System
- 10- Main Harness
