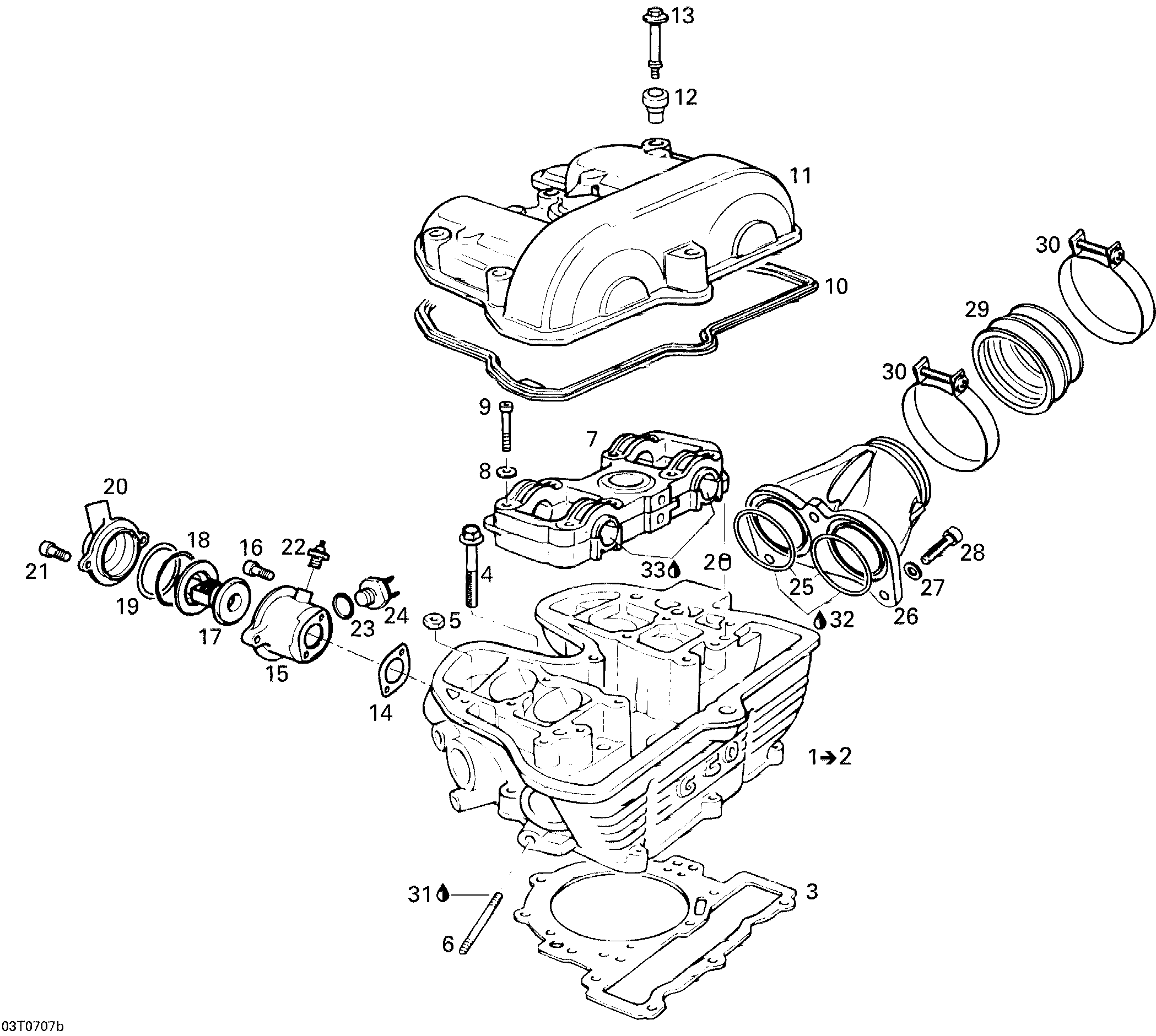

01- Cylinder Head для BRP DS 650 X - 2007
-
№АртикулНазвание
-
1420223916 Cylinder Head. Includes 1 to 2Cylinder Head. Includes 1 to 2
-
2420632010 Pin M8 X 12Pin M8 X 12
-
3420650020 GasketGasket
-
4207684544 Hex Flanged Screw M8 X 45Hex Flanged Screw M8 X 45
-
5420242855 Hex Flanged Nut M10Hex Flanged Nut M10
-
6420240362 Stud M8 X 58Stud M8 X 58
-
7420211326 Camshaft BridgeCamshaft Bridge
-
8420927945 Flat WasherFlat Washer
-
9420241820 Socket Head Screw M6 X 45Socket Head Screw M6 X 45
-
10420250900 GasketGasket
-
11420211301 Valve CoverValve Cover
-
12420260050 Rubber BushingRubber Bushing
-
13420240906 Distance Screw M6 X 47.9Distance Screw M6 X 47.9
-
14420650060 GasketGasket
-
15420222430 Thermostat HousingThermostat Housing
-
16420840518 Socket Head Screw M5 X 18Socket Head Screw M5 X 18
-
17420222463 ThermostatThermostat
-
18420245770 Corrugated WasherCorrugated Washer
-
19420650030 O-RingO-Ring
-
20420222440 Thermostat CoverThermostat Cover
-
21420840512 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
22420265392 Thermostatic SwitchThermostatic Switch
-
23420230380 O-RingO-Ring
-
24420265390 Thermostatic Switch (fan)Thermostatic Switch (fan)
-
25293300059 O-RingO-Ring
-
26420267230 Intake AdaptorIntake Adaptor
-
27234061410 Flat Washer 6 mmFlat Washer 6 mm
-
28205062544 Socket Screw M6 X 25Socket Screw M6 X 25
-
29420267240 Carburator Flange 52 mmCarburator Flange 52 mm
-
30293650090 Norma Gear ClampNorma Gear Clamp
-
31413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
32293550030 Grease, Super LubeGrease, Super Lube
-
33293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
