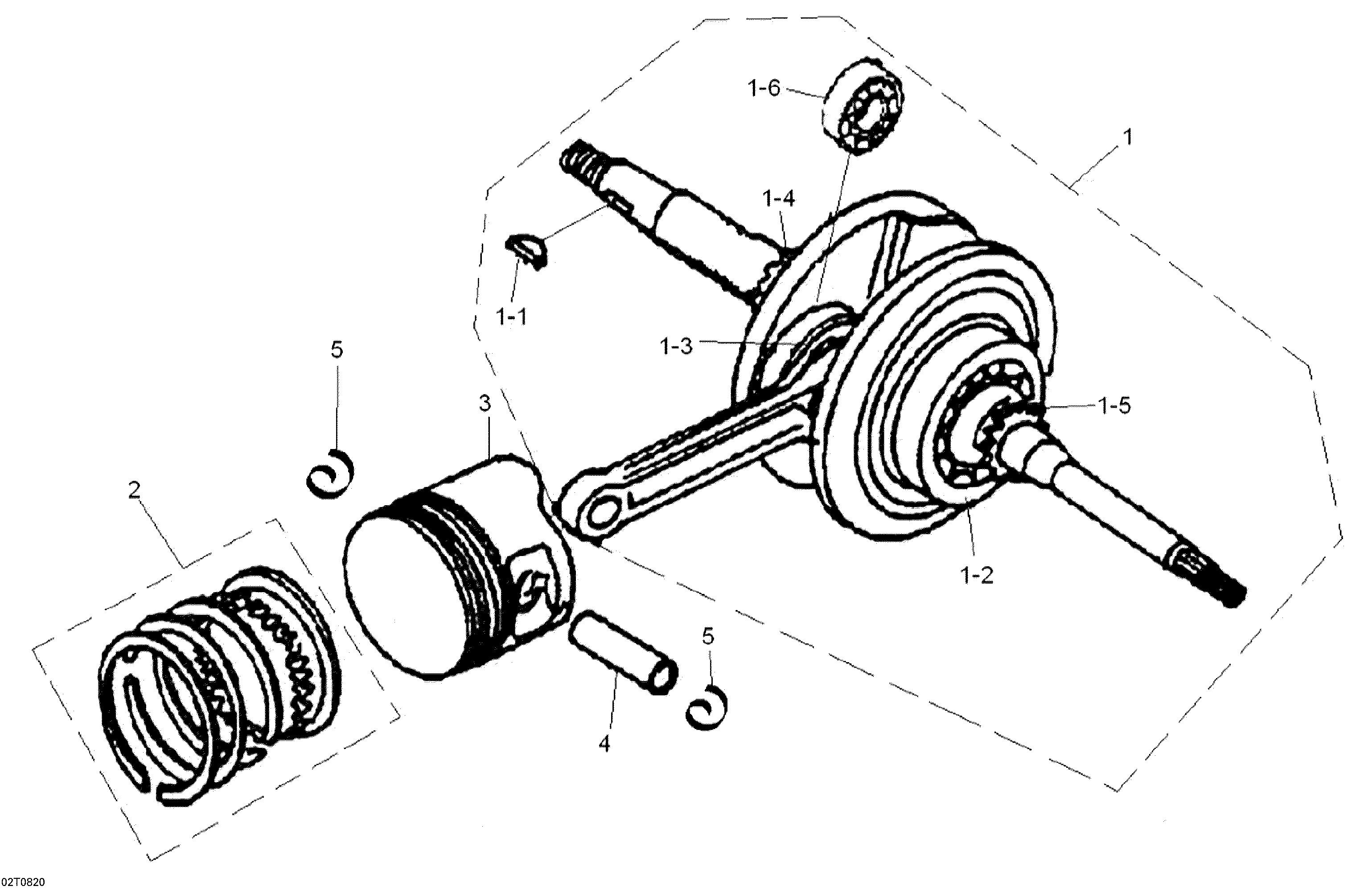

01- Crankshaft And Pistons для BRP Mini DS X 90cc 4T Black - 2008
-
№АртикулНазвание
-
1V13000CJF010 Crankshaft Ass'y,Crankshaft Ass'y,
-
2V13011CJF010 Piston Ring Set,Piston Ring Set,
-
3V13100CJF010 Piston,Piston,
-
4V13111CJF010 Piston PinPiston Pin
-
5V13115CJF000 Clip Piston PinClip Piston Pin
