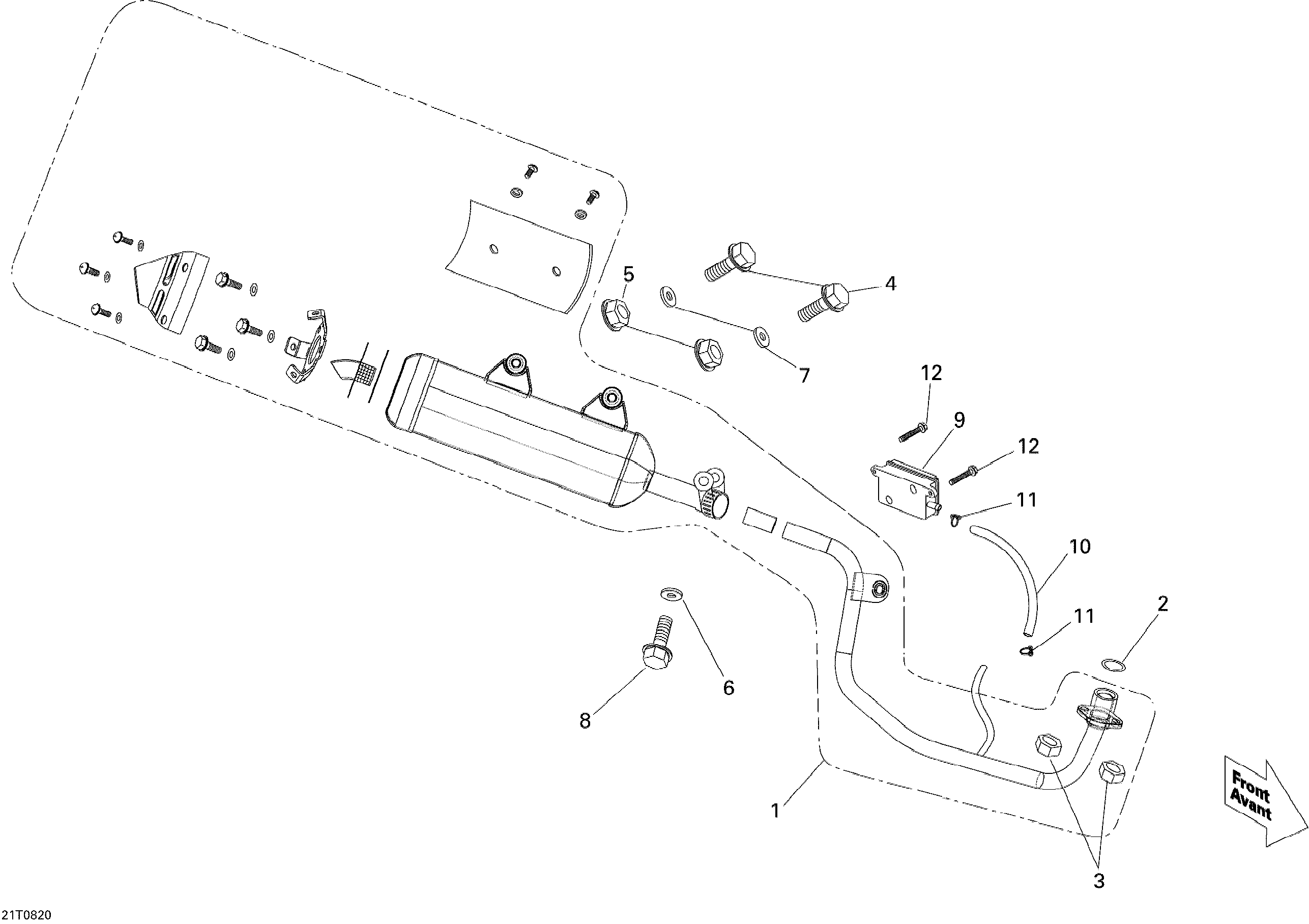

01- Exhaust System для BRP Mini DS X 90cc 4T Black - 2008
-
№АртикулНазвание
-
1V18301DGF00H MufflerMuffler
-
2V18291MAD000 Exhaust Pipe GasketExhaust Pipe Gasket
-
3V9400106000 Hex. NutHex. Nut
-
4207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
5232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6234181601 Lock Washer 8 mmLock Washer 8 mm
-
7V941010817016 WasherWasher
-
8207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9V18350DGF000 Air Cleaner BoxAir Cleaner Box
-
10V18401DGF030 Air HoseAir Hose
-
11V0940115101 ClipClip
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
