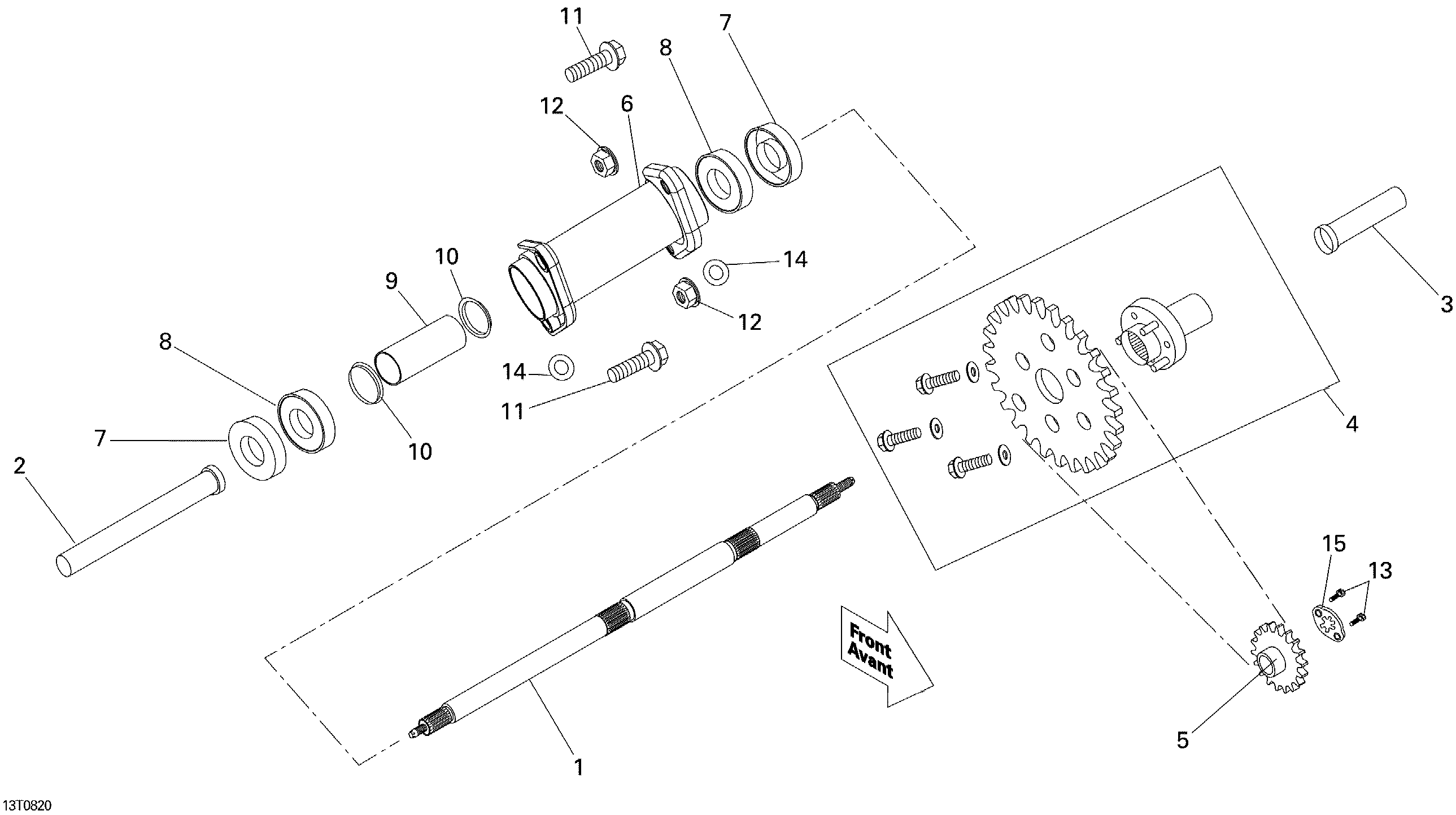

08- Drive System, Rear для BRP Mini DS X 90cc 4T Black - 2008
-
№АртикулНазвание
-
1V23511DGF00H Rear Wheel AxleRear Wheel Axle
-
2V44150DGF01H RH Spacer CollarRH Spacer Collar
-
3V44160DGF00HBK LH Spacer CollarLH Spacer Collar
-
4V15239DGF000 Cam Chain Sprocket 40TCam Chain Sprocket 40T
-
5V15237DGF000 Cam Chain Sprocket 16TCam Chain Sprocket 16T
-
6V52350MAA050BK Rear Wheel AxleRear Wheel Axle
-
7V91203MAA000 Oil SealOil Seal
-
8A961006006ZZ Radial Ball Bearing, 6006ZZRadial Ball Bearing, 6006ZZ
-
9V44620MAA000 SpacerSpacer
-
10V51312MAA000 SpacerSpacer
-
11V9600012028 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
12A9035012000 Hexagonal Nut M12Hexagonal Nut M12
-
13V9200006010 ScrewScrew
-
14V941011326020 WasherWasher
-
15V128114DM00 Fixing PlateFixing Plate
