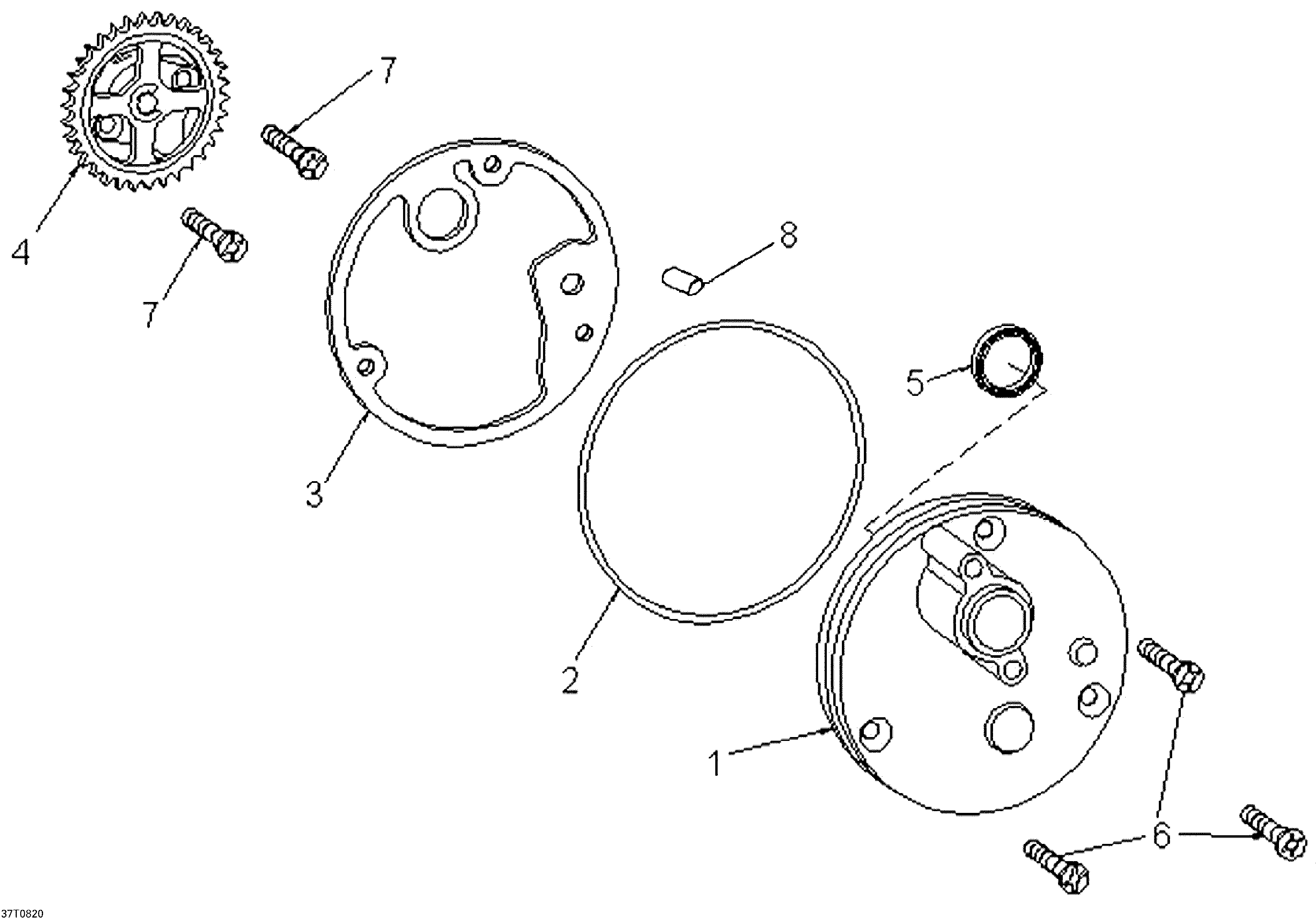

02- Oil Pump для BRP Mini DS X 90cc 4T Black - 2008
-
№АртикулНазвание
-
1V11335CJF000 Oil SeparatorOil Separator
-
2V91303CJF000 O-RingO-Ring
-
3V11396CJF000 GasketGasket
-
4V15100CJF000 Oil PumpOil Pump
-
5V91201CJF000 O-RingO-Ring
-
6A9390206016 Flat Head Phillips Screw M6 X 16Flat Head Phillips Screw M6 X 16
-
7V9390206020 Hexagonal Flanged ScrewHexagonal Flanged Screw
-
8A9430108120 Dowel Pin, 8 X 12Dowel Pin, 8 X 12
