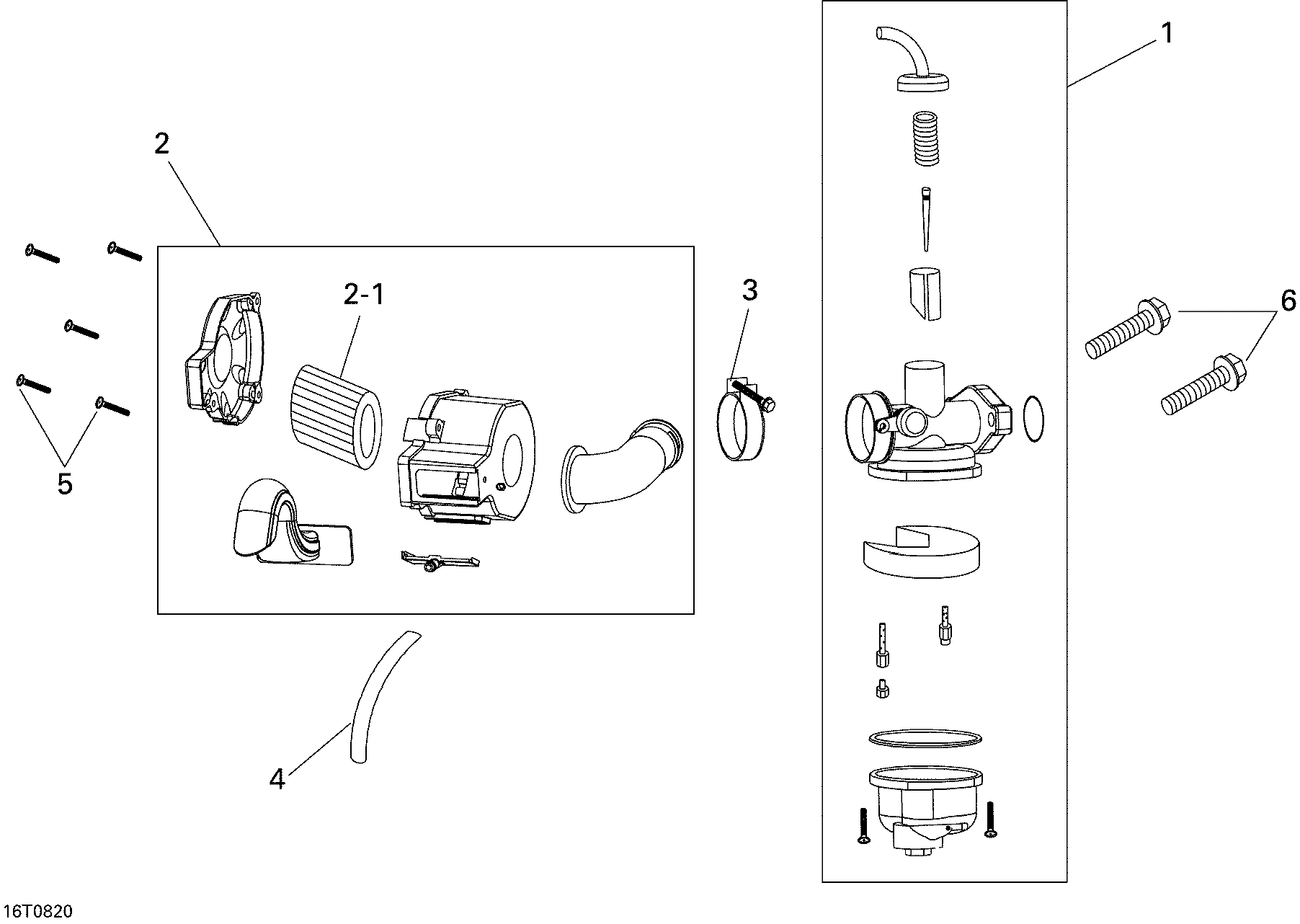

02- Carburetor And Air Cleaner для BRP Mini DS X 90cc 4T Black - 2008
-
№АртикулНазвание
-
1V16100DGF000 Carburetor Ass'yCarburetor Ass'y
-
2V17200DGF040 Air Silencer Ass'yAir Silencer Ass'y
-
2-1V17205DGF030 Air Cleaner Element SetAir Cleaner Element Set
-
3V17208DGF000 ClampClamp
-
5V9300005016 Round Head ScrewRound Head Screw
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
