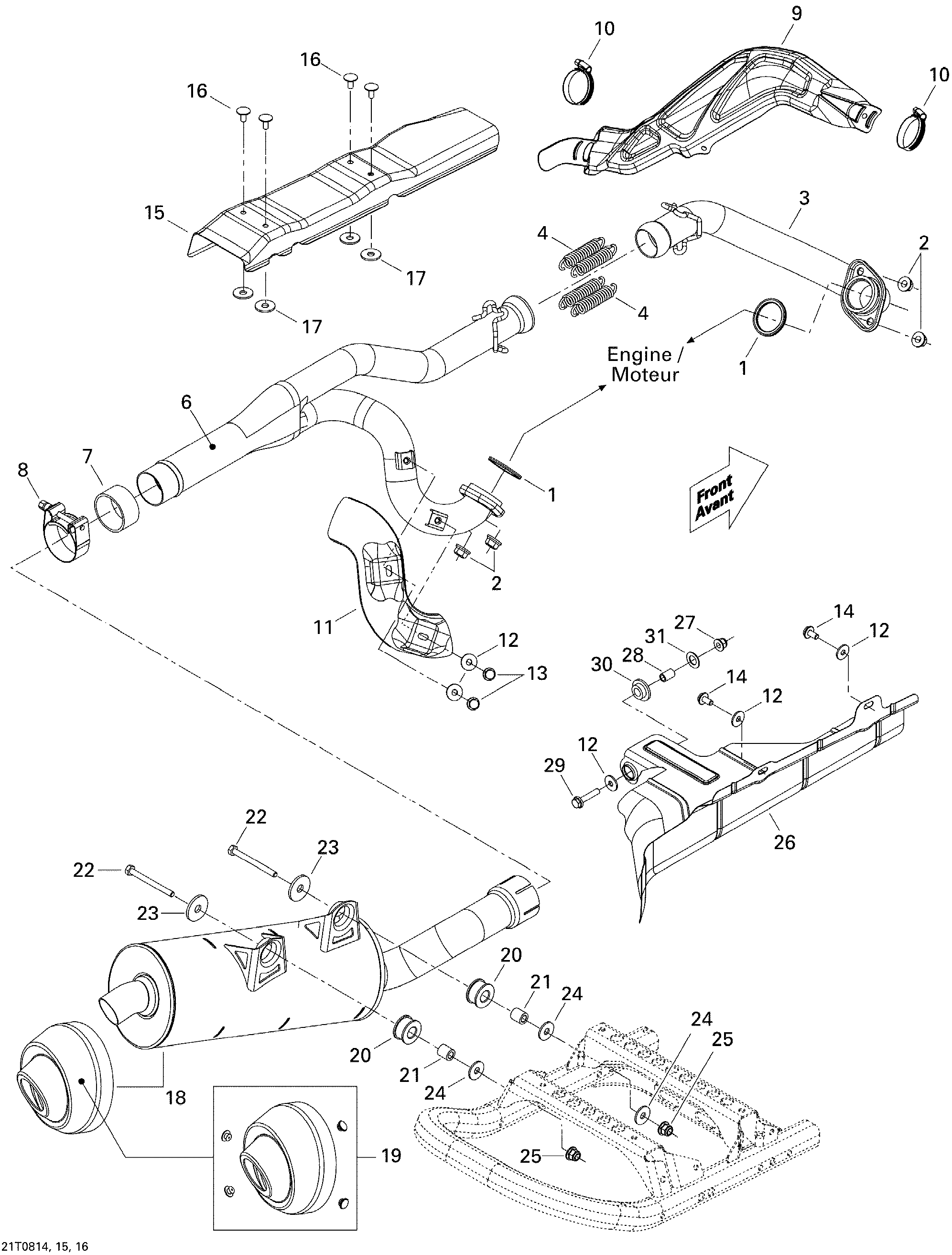

01- Exhaust System для BRP Renegade 500 - 2008
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
3707600529 Front Tuned PipeFront Tuned Pipe
-
4415107100 SpringSpring
-
6707600530 Rear Tuned PipeRear Tuned Pipe
-
7707600430 Pipe GasketPipe Gasket
-
8293650177 Norma Gear ClampNorma Gear Clamp
-
9707600342 Front Heat ShieldFront Heat Shield
-
10293650098 Norma Gear ClampNorma Gear Clamp
-
11707600318 Tuned Pipe ProtectorTuned Pipe Protector
-
12391302000 Flat WasherFlat Washer
-
13250000073 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
14210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
15707600426 Heat ShieldHeat Shield
-
16390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
17517124300 WasherWasher
-
18707600412 Muffler. Europe, Includes 18, 19Muffler. Europe, Includes 18, 19
-
18707600540 Muffler. Includes 18, 19Muffler. Includes 18, 19
-
19703500701 Muffler Cap KitMuffler Cap Kit
-
20707600077 RubberRubber
-
21293900082 BushingBushing
-
22207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
23503032900 WasherWasher
-
24234082410 Flat Washer 8 mmFlat Washer 8 mm
-
25233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26707600284 Muffler ProtectorMuffler Protector
-
27233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
28293900078 SleeveSleeve
-
29207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
30709200115 BushingBushing
-
31503175800 WasherWasher
