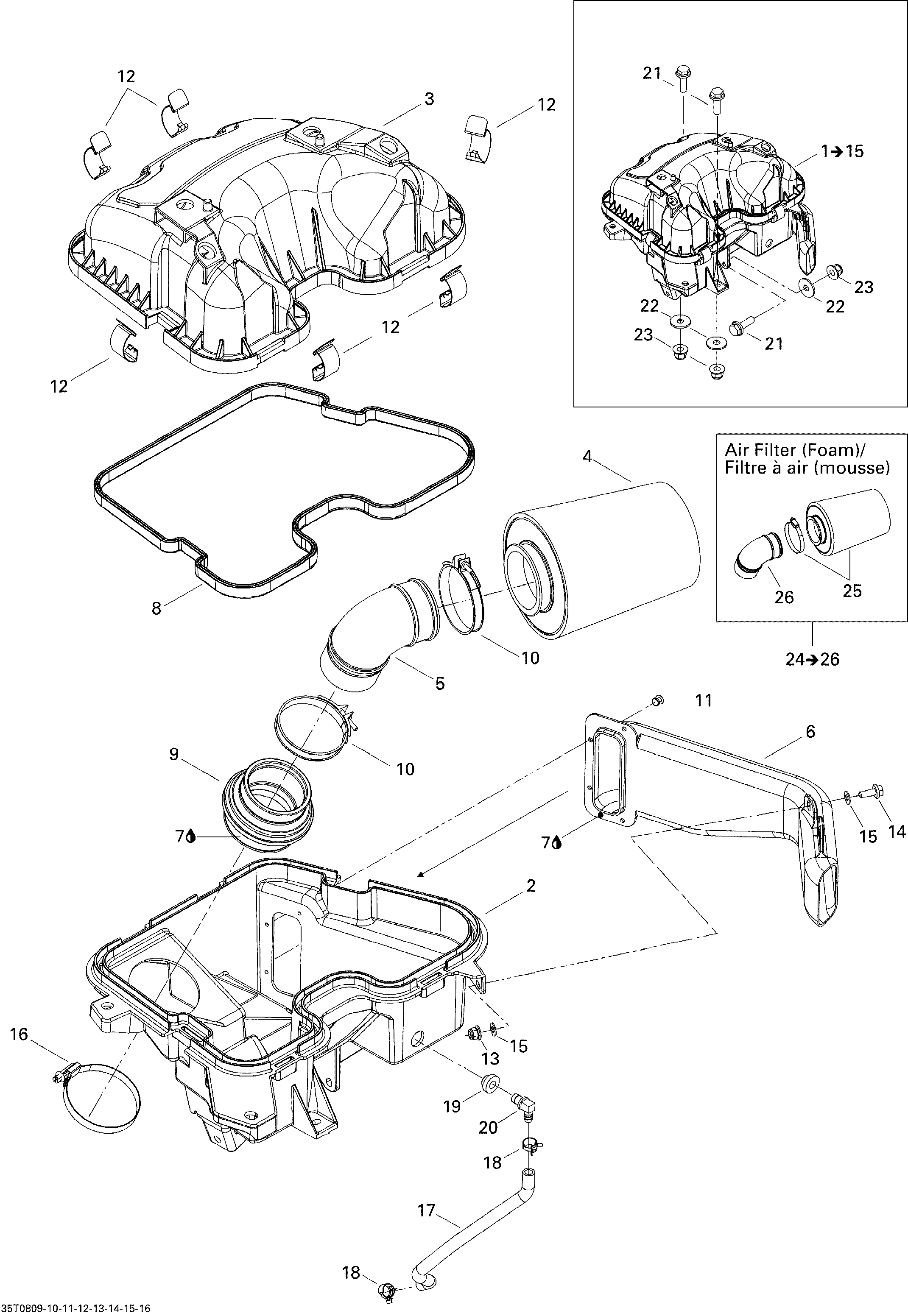

02- Air Intake Silencer для BRP Renegade 500 - 2008
-
№АртикулНазвание
-
2707800173 Intake Silencer BaseIntake Silencer Base
-
3707800252 Intake Silencer CoverIntake Silencer Cover
-
4707800174 Air FilterAir Filter
-
5707800270 Rigid AdaptorRigid Adaptor
-
6707800175 Front Intake AdaptorFront Intake Adaptor
-
7293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
8707800197 Oil SealOil Seal
-
9707800177 Intake AdaptorIntake Adaptor
-
10293650175 ClampClamp
-
12707800231 Cover BracketCover Bracket
-
16293650091 Norma ClampNorma Clamp
-
17707800206 Vent HoseVent Hose
-
18293650110 Norma ClampNorma Clamp
-
19570273900 GrommetGrommet
-
20414523600 Elbow FittingElbow Fitting
-
21207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
22391302000 Flat WasherFlat Washer
-
23233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
24715000310 Foam Air Filter Kit. Includes 24 to 26Foam Air Filter Kit. Includes 24 to 26
-
26707800270 Rigid AdaptorRigid Adaptor
