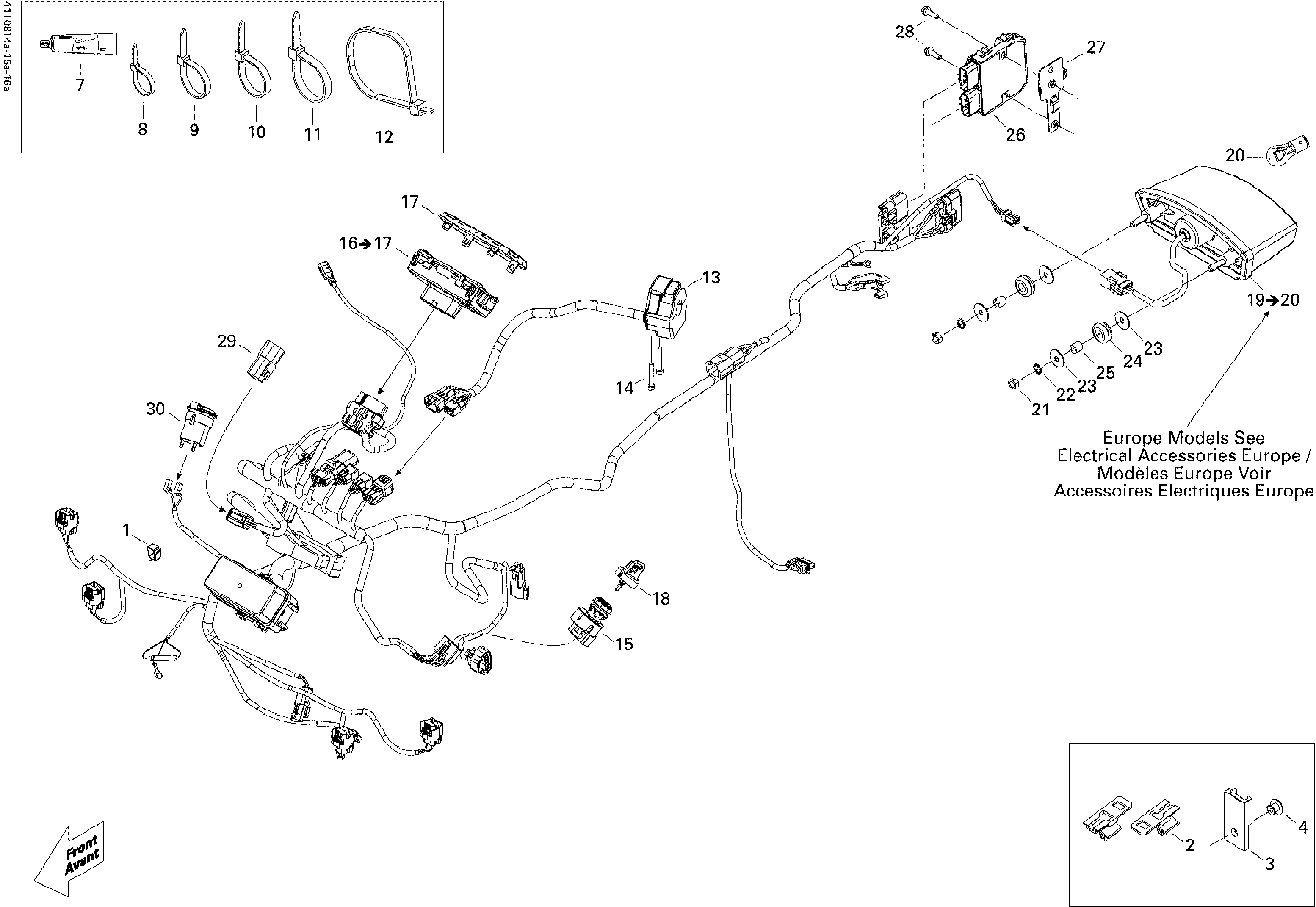

10- Electrical Accessories для BRP Renegade 500 - 2008
-
№АртикулНазвание
-
1414227300 ClipClip
-
2515175283 Housing SupportHousing Support
-
3270000141 ClipClip
-
4390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
7293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
8293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
12293750041 Tie-rap 627 mmTie-rap 627 mm
-
13710000791 Multi-fonction HandleMulti-fonction Handle
-
14205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
15710000728 Ignition SwitchIgnition Switch
-
16710001351 Speedometer. Includes 16 to 17Speedometer. Includes 16 to 17
-
17710001183 Trim RingTrim Ring
-
18710000817 Black-Electronic KeyBlack-Electronic Key
-
19710001041 Tail Light. Includes 19 to 20Tail Light. Includes 19 to 20
-
20410504100 Tail Light BulbTail Light Bulb
-
21232061600 Hex Nut M6Hex Nut M6
-
22234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
23224060201 Flat WasherFlat Washer
-
24293720053 GrommetGrommet
-
25293900045 BushingBushing
-
26710001103 Voltage RegulatorVoltage Regulator
-
27710001262 Rectifier SupportRectifier Support
-
28210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
29278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
30861507200 Outlet Power Kit, 12 VoltsOutlet Power Kit, 12 Volts
