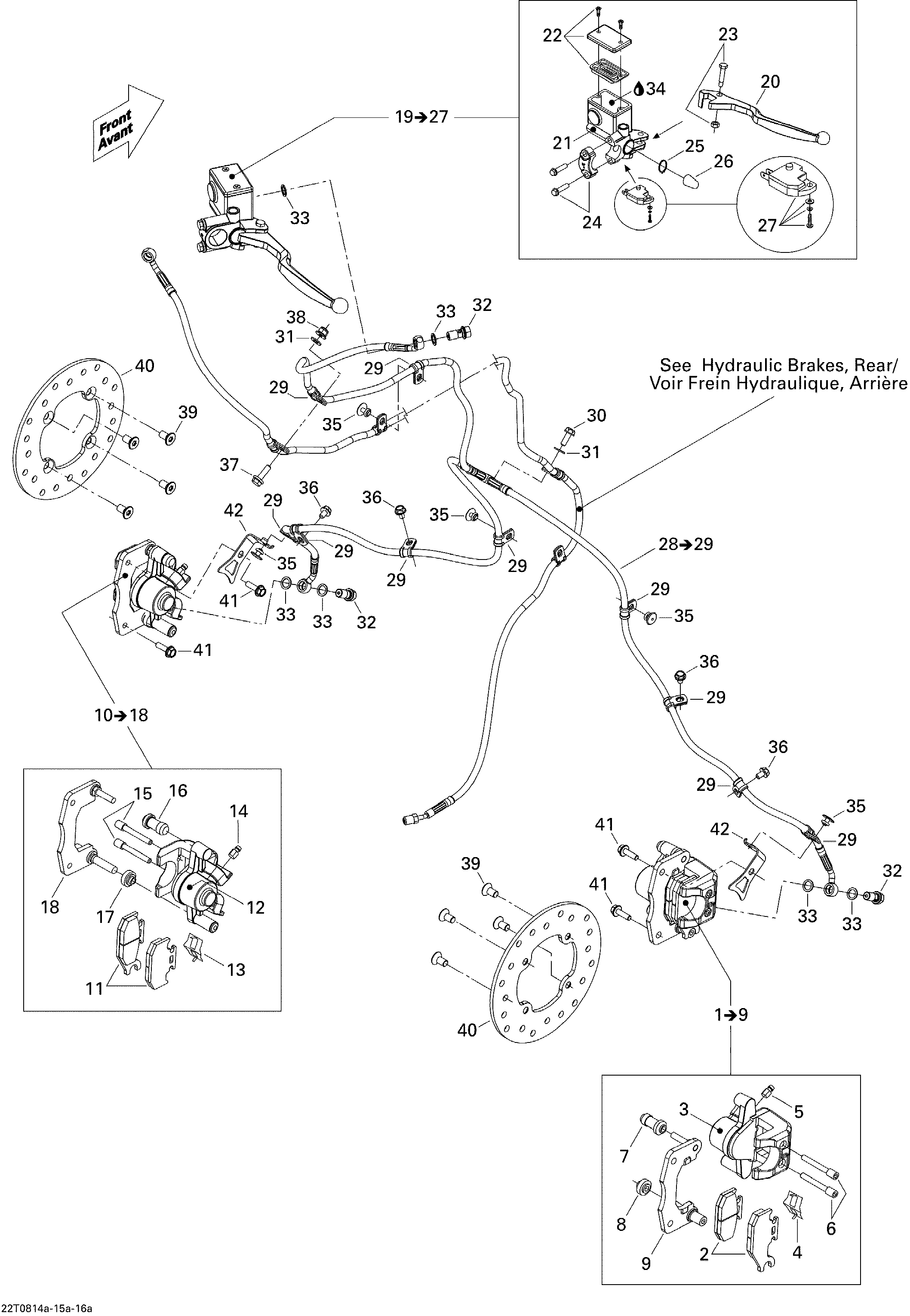

06- Hydraulic Brakes, Front для BRP Renegade 500 - 2008
-
№АртикулНазвание
-
1705600593 RH Caliper. Includes 1 to 9RH Caliper. Includes 1 to 9
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeding ScrewBleeding Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
9705600299 RH Caliper SupportRH Caliper Support
-
10705600594 LH Caliper. Includes 10 to 18LH Caliper. Includes 10 to 18
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeding ScrewBleeding Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
18705600298 LH Caliper SupportLH Caliper Support
-
19705600596 RH Front Master Cylinder. Includes 19 to 27RH Front Master Cylinder. Includes 19 to 27
-
20705600629 Lever ArmLever Arm
-
22705600084 Cap SetCap Set
-
23705600085 Bolt KitBolt Kit
-
24705600087 Bracket KitBracket Kit
-
25705600088 CirclipCirclip
-
26705600089 Compression BootCompression Boot
-
27705600086 Switch KitSwitch Kit
-
28705600597 Front Hose. Includes 28 to 29Front Hose. Includes 28 to 29
-
29705600459 ClampClamp
-
30210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
31224061121 Flat WasherFlat Washer
-
32705600396 Banjo BoltBanjo Bolt
-
33705600310 Copper WasherCopper Washer
-
34293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
35390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
36210261040 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
37207662544 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
38233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
39235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
40705600271 Brake DiscBrake Disc
-
41207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
42705600620 BracketBracket
