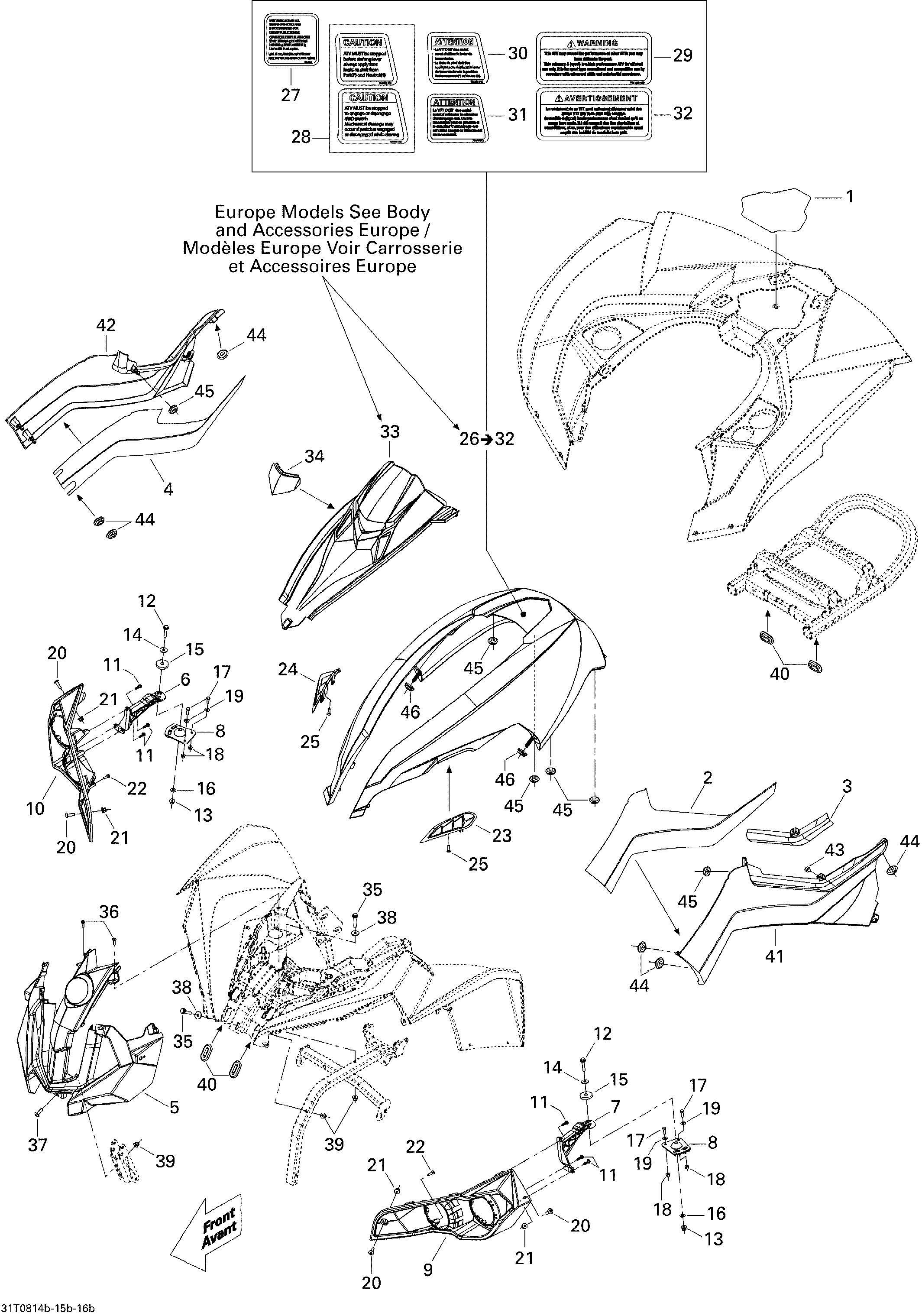

09- Body And Accessories 2 для BRP Renegade 500 - 2008
-
№АртикулНазвание
-
1705002343 Rear CapetRear Capet
-
2705001990 LH Reflective SheetLH Reflective Sheet
-
3705001989 Reflective SheetReflective Sheet
-
4705002126 RH Reflective SheetRH Reflective Sheet
-
5705002274 Front FaciaFront Facia
-
6705002424 RH Light SupportRH Light Support
-
7705002425 LH Light SupportLH Light Support
-
8705002405 Ball JointBall Joint
-
9705002243 LH Front FaciaLH Front Facia
-
10705002244 RH Front FaciaRH Front Facia
-
11241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
12207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
13233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
14391302000 Flat WasherFlat Washer
-
15293830037 Rubber WasherRubber Washer
-
16224061121 Flat WasherFlat Washer
-
17207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
18233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
19391301700 WasherWasher
-
20250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
21233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
22250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
23705002276 LH GrillLH Grill
-
24705002277 RH GrillRH Grill
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
26715000318 Central Panel. Includes 26 to 32Central Panel. Includes 26 to 32
-
27704901315 Transport Canada Label. Bilingual VersionTransport Canada Label. Bilingual Version
-
28704901308 Caution Label, Lever And 4wd Switch. English VersionCaution Label, Lever And 4wd Switch. English Version
-
29704900089 Warning Label, Performance. English VersionWarning Label, Performance. English Version
-
30704901330 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
31704901332 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
32704900105 Warning Label, Performance. French VersionWarning Label, Performance. French Version
-
33705002240 DashboardDashboard
-
34705002353 CapCap
-
35207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
36250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
37250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
38224061201 Flat WasherFlat Washer
-
39233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
40705002665 Oblong GrommetOblong Grommet
-
41705002426 LH Side Panel, BlackLH Side Panel, Black
-
42705002427 RH Side Panel, BlackRH Side Panel, Black
-
43293830005 Rubber Plug, BlackRubber Plug, Black
-
44705005156 Oblong WasherOblong Washer
-
45705002149 GrommetGrommet
-
46705005156 Oblong WasherOblong Washer
