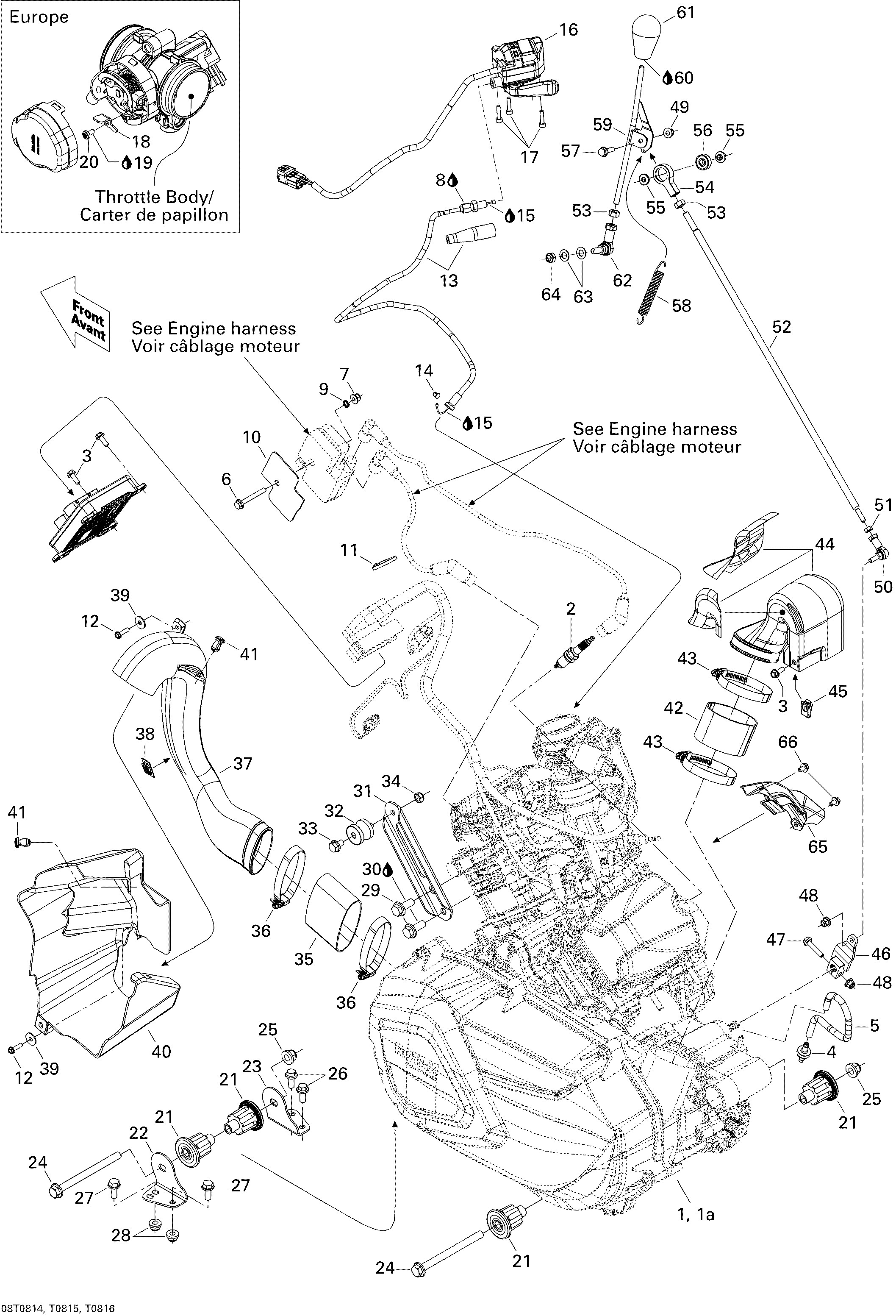

01- Engine And Engine Support для BRP Renegade 800 - 2008
-
№АртикулНазвание
-
1a420081030 Long Block 810 EngineLong Block 810 Engine
-
2707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
3210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
4275500398 Check ValveCheck Valve
-
5276000048 Hose 6 mmHose 6 mm
-
6207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
7233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
10710000073 Insulator PadInsulator Pad
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12210252040 Hex Forming ScrewHex Forming Screw
-
13707000393 Throttle CableThrottle Cable
-
14707000434 Cable GuideCable Guide
-
15293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
16707000595 Throttle HandleThrottle Handle
-
17205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
18707000573 Speed Limiter. EuropeSpeed Limiter. Europe
-
19293800060 Loctite 243, 10 ml. EuropeLoctite 243, 10 ml. Europe
-
20250000332 Screw M4 X 8. EuropeScrew M4 X 8. Europe
-
21707000426 Anti-vibration MountAnti-vibration Mount
-
22707000364 Engine Bracket, BlackEngine Bracket, Black
-
23707000396 Engine Bracket, BlackEngine Bracket, Black
-
24230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
25233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
26207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
27207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
28233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
29207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31707000371 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
32274000839 Rubber IsolatorRubber Isolator
-
33207581244 Hex Flanged Screw M8 X 12, Scotch GripHex Flanged Screw M8 X 12, Scotch Grip
-
34232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
35707000154 Flexible AdaptorFlexible Adaptor
-
36293650091 Norma ClampNorma Clamp
-
37706600008 Air InletAir Inlet
-
38293750040 Tie-rap MountTie-rap Mount
-
39391302000 Flat WasherFlat Washer
-
40707000509 Water DeflectorWater Deflector
-
41293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
42706600007 Flexible AdaptorFlexible Adaptor
-
43514052859 Norma Gear ClampNorma Gear Clamp
-
44707000459 Outlet Ass'yOutlet Ass'y
-
45250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
46707000508 LeverLever
-
47207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
48233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
49233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
50707000545 LH Ball JointLH Ball Joint
-
51232066414 LH Hex Nut M6LH Hex Nut M6
-
52707000579 Threaded RodThreaded Rod
-
53232081414 Hex Nut M8Hex Nut M8
-
54707000575 PivotPivot
-
55707000576 BushingBushing
-
56293350039 Ball BearingBall Bearing
-
57207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
58707000577 SpringSpring
-
59707000578 Lever ArmLever Arm
-
60293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
61705500022 Lever ButtonLever Button
-
62707000546 RH Ball JointRH Ball Joint
-
63506151252 WasherWasher
-
64232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
65707000410 Cover OPSCover OPS
-
66210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
