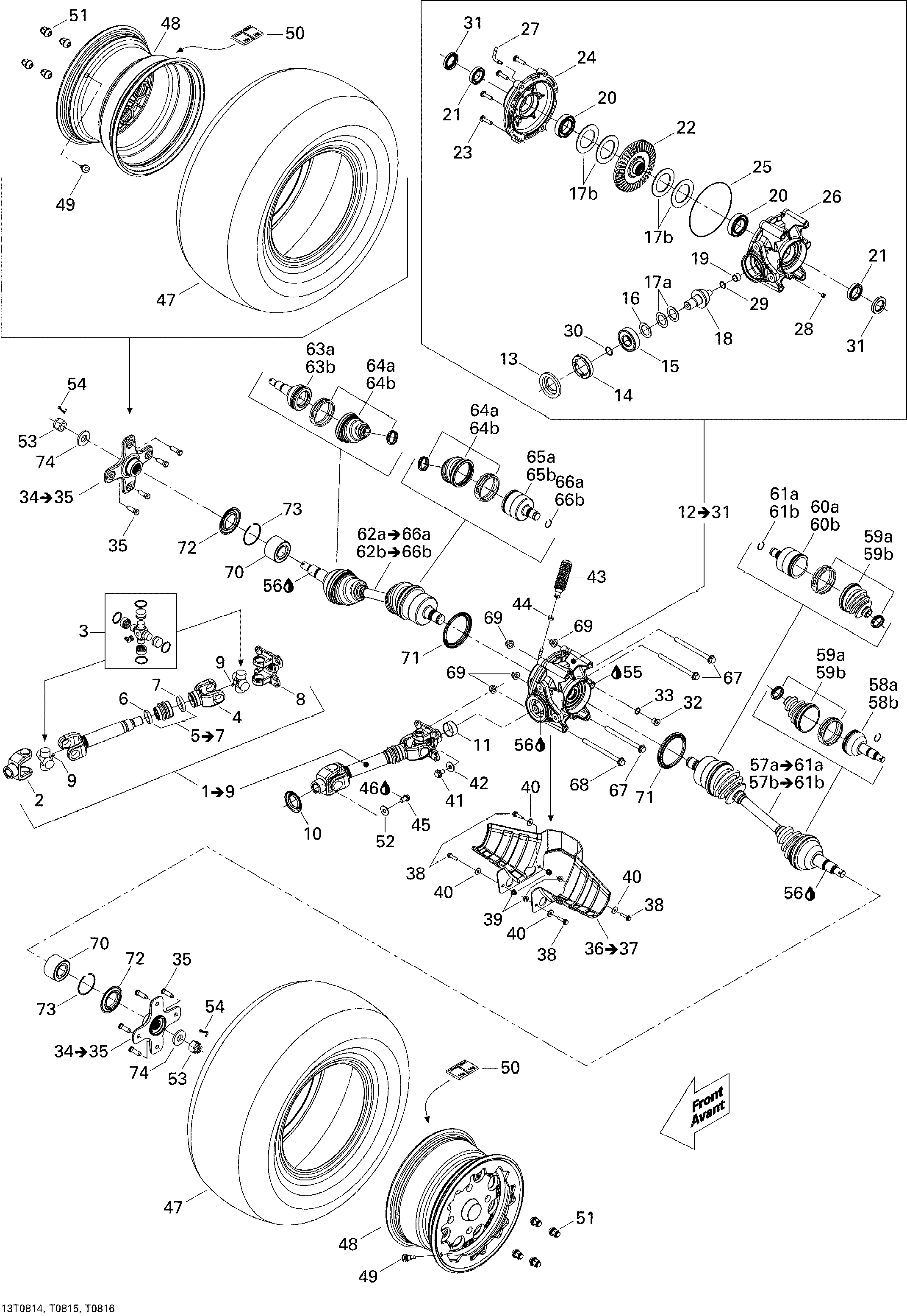

08- Drive System, Rear для BRP Renegade 800 - 2008
-
№АртикулНазвание
-
1703500704 Drive Axle Ass'y. Includes 1 to 9Drive Axle Ass'y. Includes 1 to 9
-
2705500371 Fix JointFix Joint
-
3703000022 Unit Pack KitUnit Pack Kit
-
4705500528 Sliding JointSliding Joint
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6293650138 Oetiker ClampOetiker Clamp
-
7705400148 CollarCollar
-
8705500526 Disc JointDisc Joint
-
9705500841 Grease FittingGrease Fitting
-
10705500902 ProtectorProtector
-
11705400036 Wear RingWear Ring
-
12705500891 Differential. Includes 12 to 36Differential. Includes 12 to 36
-
13705400027 Oil SealOil Seal
-
14705500905 NutNut
-
15705500260 Ball BearingBall Bearing
-
16705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
17a703500049 Pinion Shim KitPinion Shim Kit
-
17b703500548 Differential Shim KitDifferential Shim Kit
-
18705500268 Gear, 10 TeethGear, 10 Teeth
-
19705500261 Needle BearingNeedle Bearing
-
20705500749 Ball BearingBall Bearing
-
21705500750 Ball BearingBall Bearing
-
22705500775 Gear, 36 ToothGear, 36 Tooth
-
23705500892 ScrewScrew
-
24705500697 Rear Differential CoverRear Differential Cover
-
25705500265 SealSeal
-
26705500843 Rear CoverRear Cover
-
27705500893 Vent ValveVent Valve
-
28705500245 Drain PlugDrain Plug
-
29705500269 Retaining RingRetaining Ring
-
30705500267 O-RingO-Ring
-
31705500751 Oil SealOil Seal
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705500909 Wheel Hub Ass'y. Includes 34, 35Wheel Hub Ass'y. Includes 34, 35
-
35250300034 Wheel StudWheel Stud
-
36703500289 Protector KitProtector Kit
-
38207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
39233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
40391302000 Flat WasherFlat Washer
-
41250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
42250200014 Flat WasherFlat Washer
-
43705400552 Rubber BellowRubber Bellow
-
44293650042 Oetiker ClampOetiker Clamp
-
45250000247 Flanged Hex Screw M10 X 16Flanged Hex Screw M10 X 16
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
47705500820 Rear Tire. EuropeRear Tire. Europe
-
47705500926 Rear TireRear Tire
-
48705500837 Rear Rim. STDRear Rim. STD
-
49705400193 Rim ValveRim Valve
-
50705501430 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
-
50705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
51250100082 Chrome Wheel Nut M10 X 1.25. STDChrome Wheel Nut M10 X 1.25. STD
-
52250200014 Flat WasherFlat Washer
-
53250100047 Hex Castellated Nut M18Hex Castellated Nut M18
-
54250400036 Cotter PinCotter Pin
-
55293600011 Pump Oil, 75W90, 12 X 6 OzPump Oil, 75W90, 12 X 6 Oz
-
56293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
57a705500867 LH CV Joint Ass'y (7mm wide Clamp Version). Includes 57a to 61aLH CV Joint Ass'y (7mm wide Clamp Version). Includes 57a to 61a
-
58a705500869 CV Joint (7mm wide Clamp Version)CV Joint (7mm wide Clamp Version)
-
59a705500953 Boot Kit (7mm wide Clamp Version)Boot Kit (7mm wide Clamp Version)
-
60a705500871 Plunging Joint (7mm wide Clamp Version)Plunging Joint (7mm wide Clamp Version)
-
61a705500845 CirclipCirclip
-
57b705500979 LH CV Joint Ass'y (10mm wide Clamp Version). Includes 57b to 61bLH CV Joint Ass'y (10mm wide Clamp Version). Includes 57b to 61b
-
58b705500980 CV Joint (10mm wide Clamp Version)CV Joint (10mm wide Clamp Version)
-
59b705500870 Boot Kit (10mm wide Clamp Version)Boot Kit (10mm wide Clamp Version)
-
61b705500845 CirclipCirclip
-
62a705500868 RH CV Joint Ass'y (7mm wide Clamp Version). Includes 62a to 66aRH CV Joint Ass'y (7mm wide Clamp Version). Includes 62a to 66a
-
63a705500869 CV Joint (7mm wide Clamp Version)CV Joint (7mm wide Clamp Version)
-
64a705500953 Boot Kit (7mm wide Clamp Version)Boot Kit (7mm wide Clamp Version)
-
65a705500871 Plunging Joint (7mm wide Clamp Version)Plunging Joint (7mm wide Clamp Version)
-
66a705500845 CirclipCirclip
-
62b705500983 RH CV Joint Ass'y (10mm wide Clamp Version). Includes 62b to 66bRH CV Joint Ass'y (10mm wide Clamp Version). Includes 62b to 66b
-
63b705500980 CV Joint (10mm wide Clamp Version)CV Joint (10mm wide Clamp Version)
-
64b705500870 Boot Kit (10mm wide Clamp Version)Boot Kit (10mm wide Clamp Version)
-
66b705500845 CirclipCirclip
-
67230603046 Flanged Hex Screw, M10 X 130Flanged Hex Screw, M10 X 130
-
68230603546 Hex Flanged Screw M10 X 135Hex Flanged Screw M10 X 135
-
69233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
70293350040 Cone BearingCone Bearing
-
71705500900 Wear SleeveWear Sleeve
-
72705500899 Wear SleeveWear Sleeve
-
73293370019 CirclipCirclip
-
74250200049 Spring WasherSpring Washer
