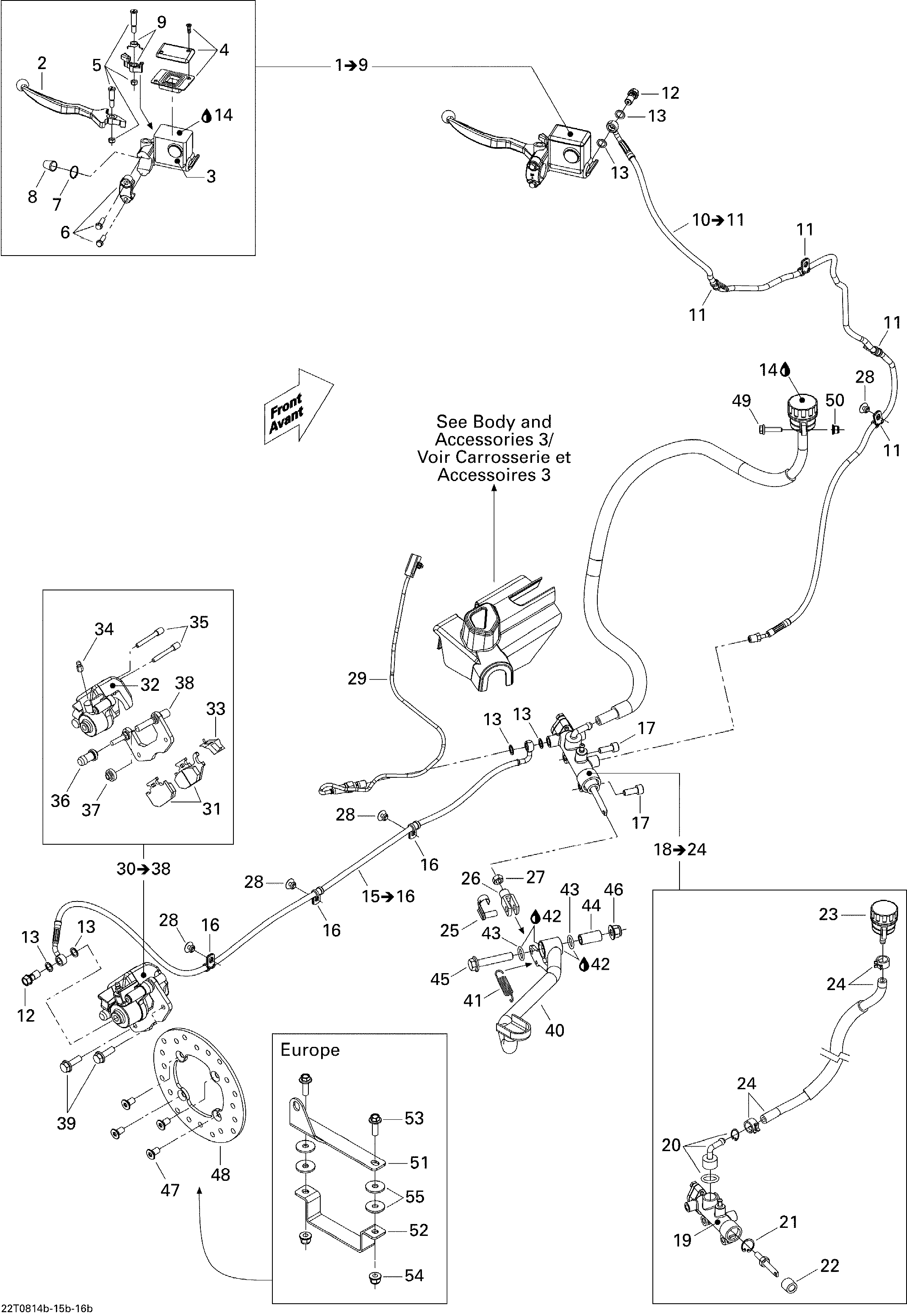

06- Hydraulic Brakes, Rear для BRP Renegade 800 - 2008
-
№АртикулНазвание
-
1705600595 LH Front Master Cylinder. Includes 1 to 9LH Front Master Cylinder. Includes 1 to 9
-
2705600243 Lever ArmLever Arm
-
4705600084 Cap SetCap Set
-
5705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
6705600087 Bracket KitBracket Kit
-
7705600088 CirclipCirclip
-
8705600089 Compression BootCompression Boot
-
9705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
10705600598 Front Hose. Includes 10 to 11Front Hose. Includes 10 to 11
-
11705600459 ClampClamp
-
12705600396 Banjo BoltBanjo Bolt
-
13705600310 Copper WasherCopper Washer
-
14293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 mlBrake Fluid, GTLMA, DOT 4 12 X 354 ml
-
15705600580 Rear Hose. Includes 15 to 16Rear Hose. Includes 15 to 16
-
16705600459 ClampClamp
-
17250000136 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
18705600543 Master Cylinder. Includes 18 to 24Master Cylinder. Includes 18 to 24
-
19705600255 Piston SetPiston Set
-
20705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
21705600068 CirclipCirclip
-
22705600090 Compression BootCompression Boot
-
23705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
24705600262 Oil Housing HoseOil Housing Hose
-
25250400007 PinPin
-
26705600100 YokeYoke
-
27232081414 Hex Nut M8Hex Nut M8
-
28390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
29710000853 Brake SwitchBrake Switch
-
30705600599 Rear Caliper. Includes 30 to 38Rear Caliper. Includes 30 to 38
-
31705600014 Brake Pad KitBrake Pad Kit
-
32705600078 Piston SetPiston Set
-
33705600079 SpringSpring
-
34705600080 Bleeding ScrewBleeding Screw
-
35705600081 Pin SetPin Set
-
36705600082 Compression BootCompression Boot
-
37705600083 Compression BootCompression Boot
-
38705600298 LH Caliper SupportLH Caliper Support
-
39207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
40705600555 Brake Pedal, BlackBrake Pedal, Black
-
41705600098 Break Pedal SpringBreak Pedal Spring
-
42293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
43293300053 O-RingO-Ring
-
44705600283 SpacerSpacer
-
45207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
46233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
47235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
48705600271 Brake DiscBrake Disc
-
49207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
50233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
51705201540 Support. EuropeSupport. Europe
-
52705000416 Bracket. EuropeBracket. Europe
-
53207682544 Hex. Flanged Screw M8 X 25. EuropeHex. Flanged Screw M8 X 25. Europe
-
54233281414 Hex Flanged Elastic Nut M8. EuropeHex Flanged Elastic Nut M8. Europe
-
55211200041 Washer. EuropeWasher. Europe
