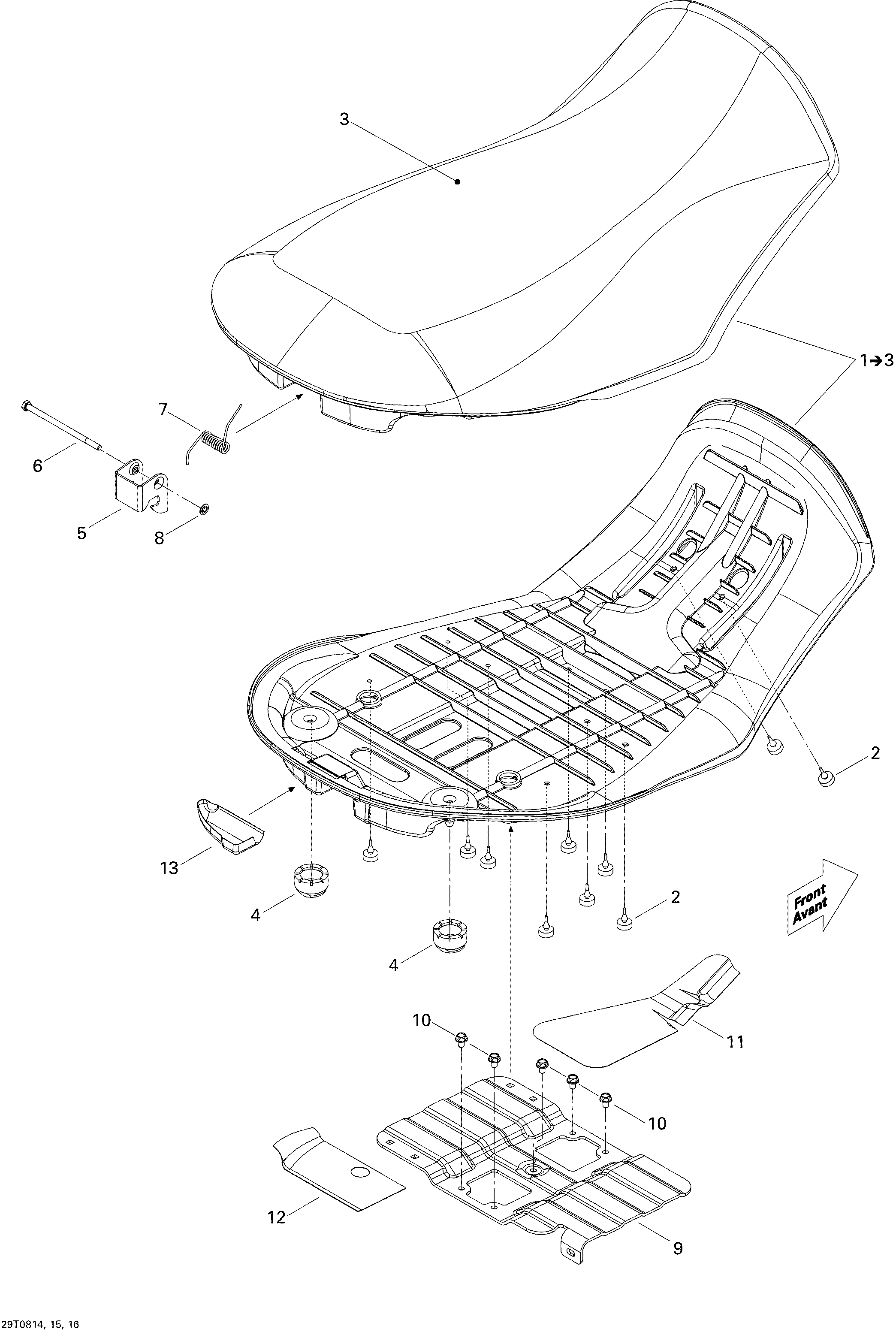

09- Seat для BRP Renegade 800 - 2008
-
№АртикулНазвание
-
1708000493 Seat Ass'ySeat Ass'y
-
2708000125 Rubber StopperRubber Stopper
-
3708000495 Seat CoverSeat Cover
-
4708000323 Rubber BumperRubber Bumper
-
5708000144 Latch, BlackLatch, Black
-
6230061044 Hex Screw M6 X 110Hex Screw M6 X 110
-
7708000369 SpringSpring
-
8732610072 Push NutPush Nut
-
9708000511 Seat ReinforcementSeat Reinforcement
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11708000496 Reflecting SheetReflecting Sheet
-
12708000470 Reflecting SheetReflecting Sheet
-
13708000487 Reflecting SheetReflecting Sheet
