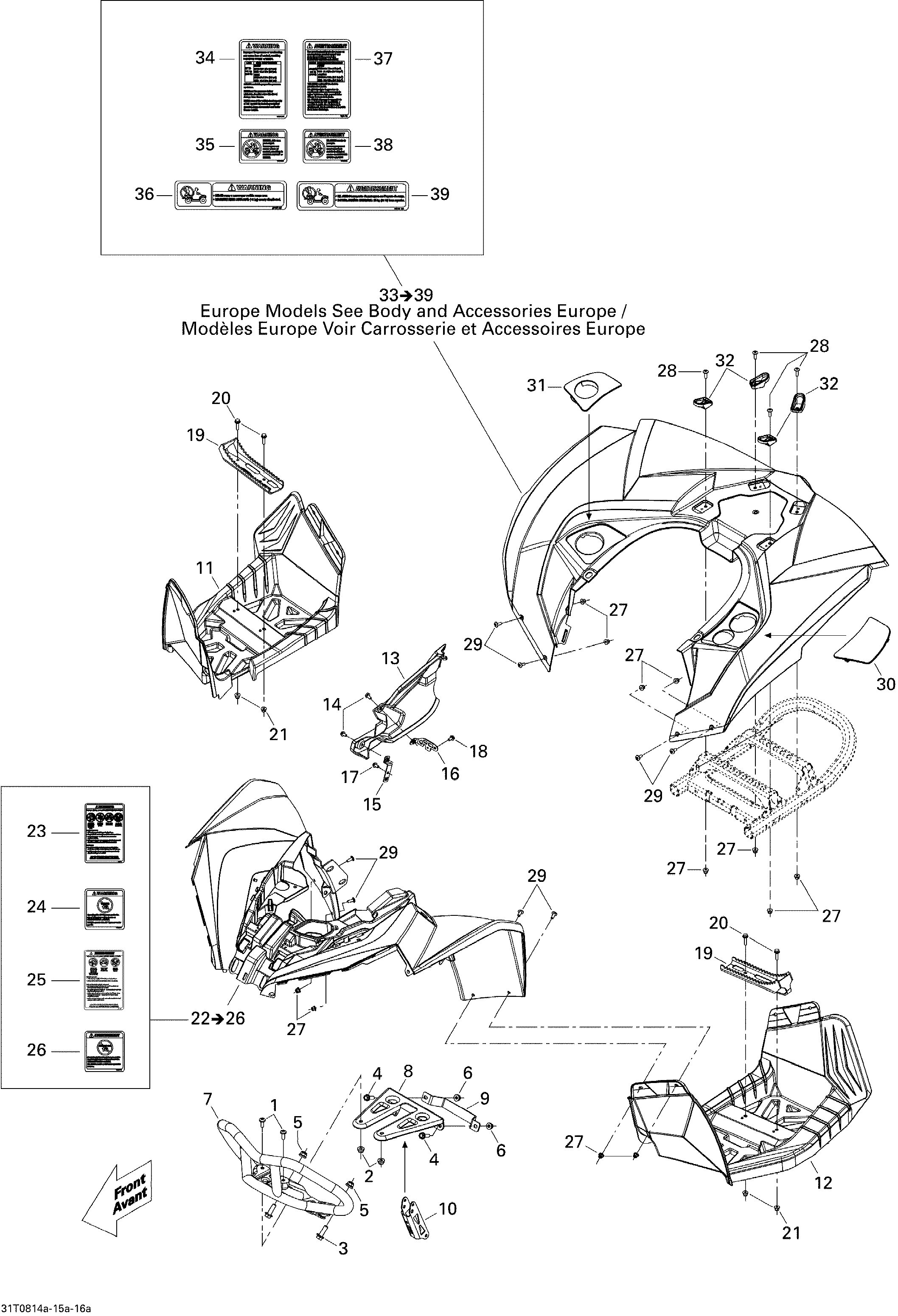

09- Body And Accessories 1 для BRP Renegade 800 - 2008
-
№АртикулНазвание
-
1250000117 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
2233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
3207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
7705002245 Front BumperFront Bumper
-
8705002279 AttacheAttache
-
9705002520 Bumper Bracket, BlackBumper Bracket, Black
-
10705002282 SupportSupport
-
11705002237 RH FootboardRH Footboard
-
12705002238 LH FootboardLH Footboard
-
13705002534 Engine CoverEngine Cover
-
14210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
15705002666 Engine Cover SupportEngine Cover Support
-
16705002667 Engine Cover SupportEngine Cover Support
-
17210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
18207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
19705002326 FootrestFootrest
-
20207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
21233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
22715000312 Front Fender Kit, Yellow. Includes 22 to 26Front Fender Kit, Yellow. Includes 22 to 26
-
23704900112 Warning Label, Death And Injuries. English VersionWarning Label, Death And Injuries. English Version
-
24704900011 Warning Label, Under 16 Years Old. English VersionWarning Label, Under 16 Years Old. English Version
-
25704901441 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
26704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
27233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
28250000284 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
29250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
30705001910 LH Cap, BlackLH Cap, Black
-
31705002420 Neck CapNeck Cap
-
32705002342 HookHook
-
33715000314 Rear Fender Kit, Yellow. Includes 33 to 39Rear Fender Kit, Yellow. Includes 33 to 39
-
34704901419 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
35704900005 Warning Label, Passenger. English VersionWarning Label, Passenger. English Version
-
36704901333 Warning Label, Load. English VersionWarning Label, Load. English Version
-
37704901418 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
38704900006 Warning Label, Passenger. French VersionWarning Label, Passenger. French Version
-
39704901334 Warning Label, Load. French VersionWarning Label, Load. French Version
