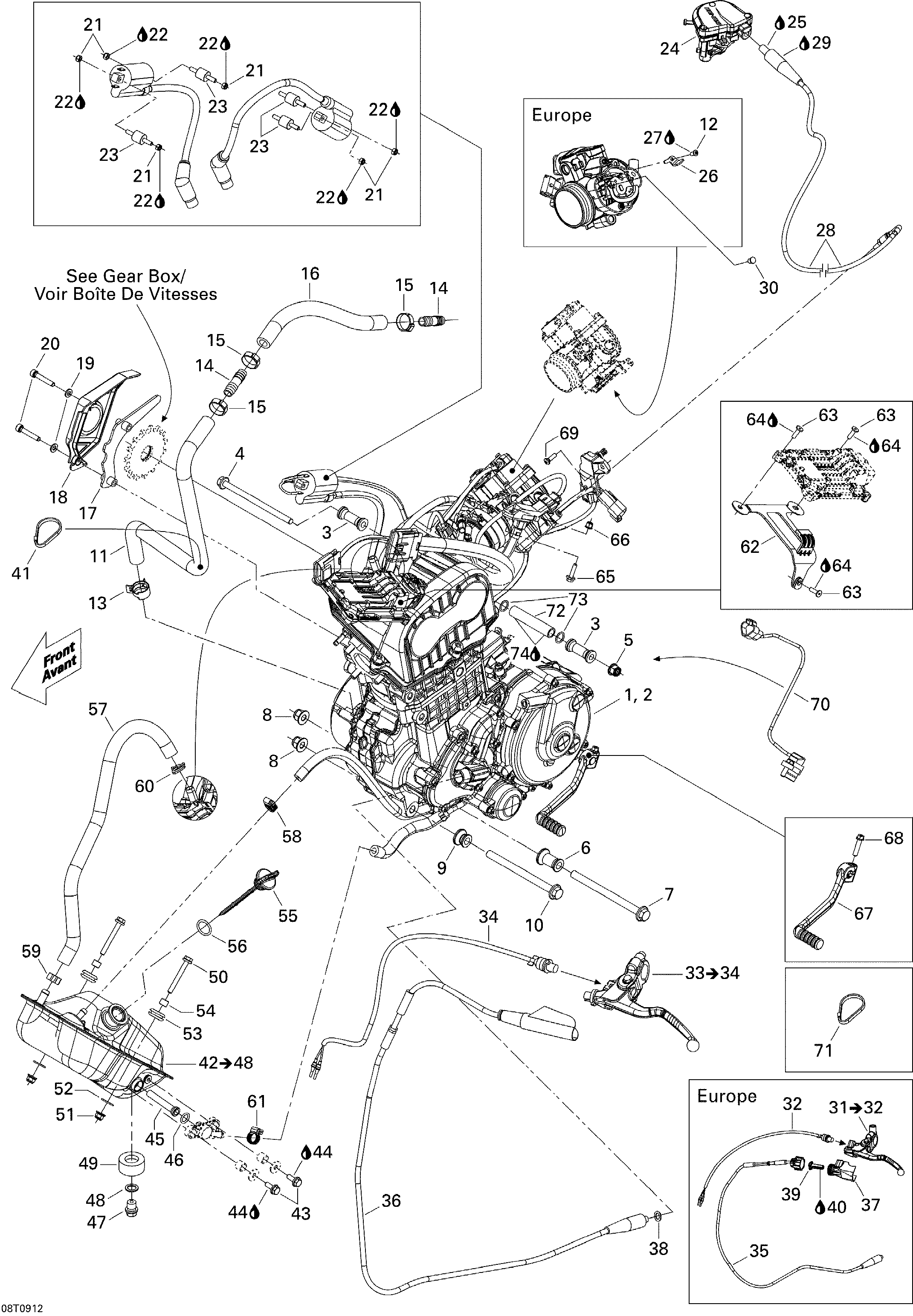

01- Engine для BRP DS 450 EFI - 2009
-
№АртикулНазвание
-
2420044902 Long Block, 449 EFI EngineLong Block, 449 EFI Engine
-
3293900071 SpacerSpacer
-
4230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
5233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
6293900072 SpacerSpacer
-
7230603536 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
8233201434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
9293900074 SpacerSpacer
-
10230603036 Hex. Flanged Screw M10 X 130Hex. Flanged Screw M10 X 130
-
11707000502 HoseHose
-
12250000332 Screw M4 X 8. EuropeScrew M4 X 8. Europe
-
13293650110 Norma ClampNorma Clamp
-
14293710119 ConnectorConnector
-
15293650012 Oetiker ClampOetiker Clamp
-
16707000537 Hose 12 mmHose 12 mm
-
17707000464 Chain Guard. Except EuropeChain Guard. Except Europe
-
17707000701 Chain Guard. EuropeChain Guard. Europe
-
18707000425 Sprocket CoverSprocket Cover
-
19234061430 Flat Washer M6Flat Washer M6
-
20205563536 Socket Head Screw M6 X 35, Scotch GripSocket Head Screw M6 X 35, Scotch Grip
-
21232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23707000746 Rubber MountRubber Mount
-
24707000440 Throttle HandleThrottle Handle
-
25293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
26707000624 Speed Limiter. EuropeSpeed Limiter. Europe
-
27293800060 Loctite 243, 10 ml. EuropeLoctite 243, 10 ml. Europe
-
28707000439 Throttle CableThrottle Cable
-
29293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
30707000434 Cable GuideCable Guide
-
31707000592 Handle Lever Ass'y. Includes 31 to 32, EuropeHandle Lever Ass'y. Includes 31 to 32, Europe
-
32707000183 Lever Shifter Switch. EuropeLever Shifter Switch. Europe
-
33707000605 Handle Lever Ass'y. Includes 33 to 34, Except EuropeHandle Lever Ass'y. Includes 33 to 34, Except Europe
-
34707000183 Lever Shifter Switch. Except EuropeLever Shifter Switch. Except Europe
-
35707000422 Clutch Cable. EuropeClutch Cable. Europe
-
36707000606 Clutch Cable. Except EuropeClutch Cable. Except Europe
-
37293830122 Boot. EuropeBoot. Europe
-
38504082900 WasherWasher
-
39707000602 Screw. EuropeScrew. Europe
-
40293550004 Dielectric Grease, 150 g. EuropeDielectric Grease, 150 g. Europe
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
42707000474 Oil Tank Ass'y. Includes 42 to 48Oil Tank Ass'y. Includes 42 to 48
-
43207662034 Hex. Flanged ScrewHex. Flanged Screw
-
44293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
45519000144 StrainerStrainer
-
46293300128 O-RingO-Ring
-
47250500010 PlugPlug
-
48250200061 Copper WasherCopper Washer
-
49705001678 Rubber StopperRubber Stopper
-
50207665034 Hex. Flanged ScrewHex. Flanged Screw
-
51233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
52250200082 Flat WasherFlat Washer
-
53293720062 GrommetGrommet
-
54293900089 SpacerSpacer
-
55707000526 Oil CapOil Cap
-
56709000089 O-RingO-Ring
-
57707000544 HoseHose
-
58293650171 Tridon Hose ClampTridon Hose Clamp
-
59293650011 Oetiker ClampOetiker Clamp
-
60293650180 Rotoclip ClampRotoclip Clamp
-
61293650171 Tridon Hose ClampTridon Hose Clamp
-
62710000972 Module SupportModule Support
-
63250000295 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
64293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
65207652034 Hex. Flanged Screw M5 X 20Hex. Flanged Screw M5 X 20
-
66233251434 Flanged Elastic NutFlanged Elastic Nut
-
67420248540 Gearshift PedalGearshift Pedal
-
68420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
69250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
70707000745 Speed Sensor. EuropeSpeed Sensor. Europe
-
71293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
72293900093 Engine SpacerEngine Spacer
-
73709000089 O-RingO-Ring
-
74413711400 Loctite 648, 10 mlLoctite 648, 10 ml
