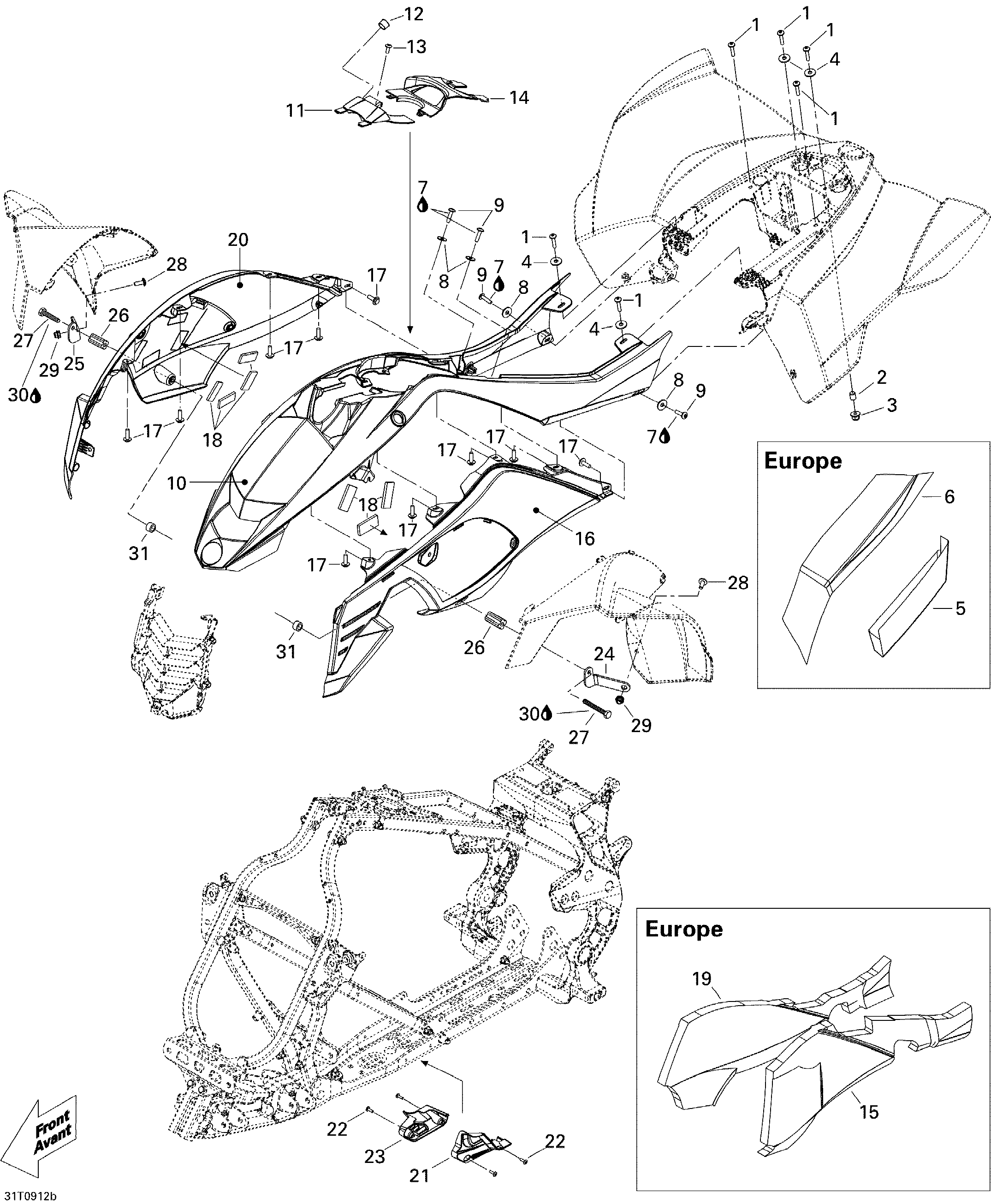

09- Body And Accessories 2 для BRP DS 450 EFI - 2009
-
№АртикулНазвание
-
1250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
2709000162 BushingBushing
-
3233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
4391301600 WasherWasher
-
5705003351 Reflective Sheet. EuropeReflective Sheet. Europe
-
6705003357 Reflective Sheet. EuropeReflective Sheet. Europe
-
7293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
8234062670 Flat WasherFlat Washer
-
9250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
10705001750 Front fascia. Yellow ModelFront fascia. Yellow Model
-
10705003003 Front fascia. White ModelFront fascia. White Model
-
11705001758 Dash-Board. Except EuropeDash-Board. Except Europe
-
11705003316 Dash-Board. EuropeDash-Board. Europe
-
12572051500 Cap. EuropeCap. Europe
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14705002288 Access CoverAccess Cover
-
15705003293 L.H. Foam. EuropeL.H. Foam. Europe
-
16705002961 LH Side PannelLH Side Pannel
-
17243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
18705002447 Gasket. Except EuropeGasket. Except Europe
-
19705003292 R.H. Foam. EuropeR.H. Foam. Europe
-
20705002962 RH Side PannelRH Side Pannel
-
21705002631 LH Engine MouldingLH Engine Moulding
-
22250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
23705002632 RH Engine MouldingRH Engine Moulding
-
24705002695 LH Fender SupportLH Fender Support
-
25705002696 RH Fender SupportRH Fender Support
-
26705002697 BushingBushing
-
27207066060 Hex. Screw M6 X 60. EuropeHex. Screw M6 X 60. Europe
-
27207265560 Hex. Screw M6 X 55, Scotch Grip. Except EuropeHex. Screw M6 X 55, Scotch Grip. Except Europe
-
28250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
29293450274 InsertInsert
-
30293800060 Loctite 243, 10 ml. EuropeLoctite 243, 10 ml. Europe
-
31293900067 Bushing. EuropeBushing. Europe
