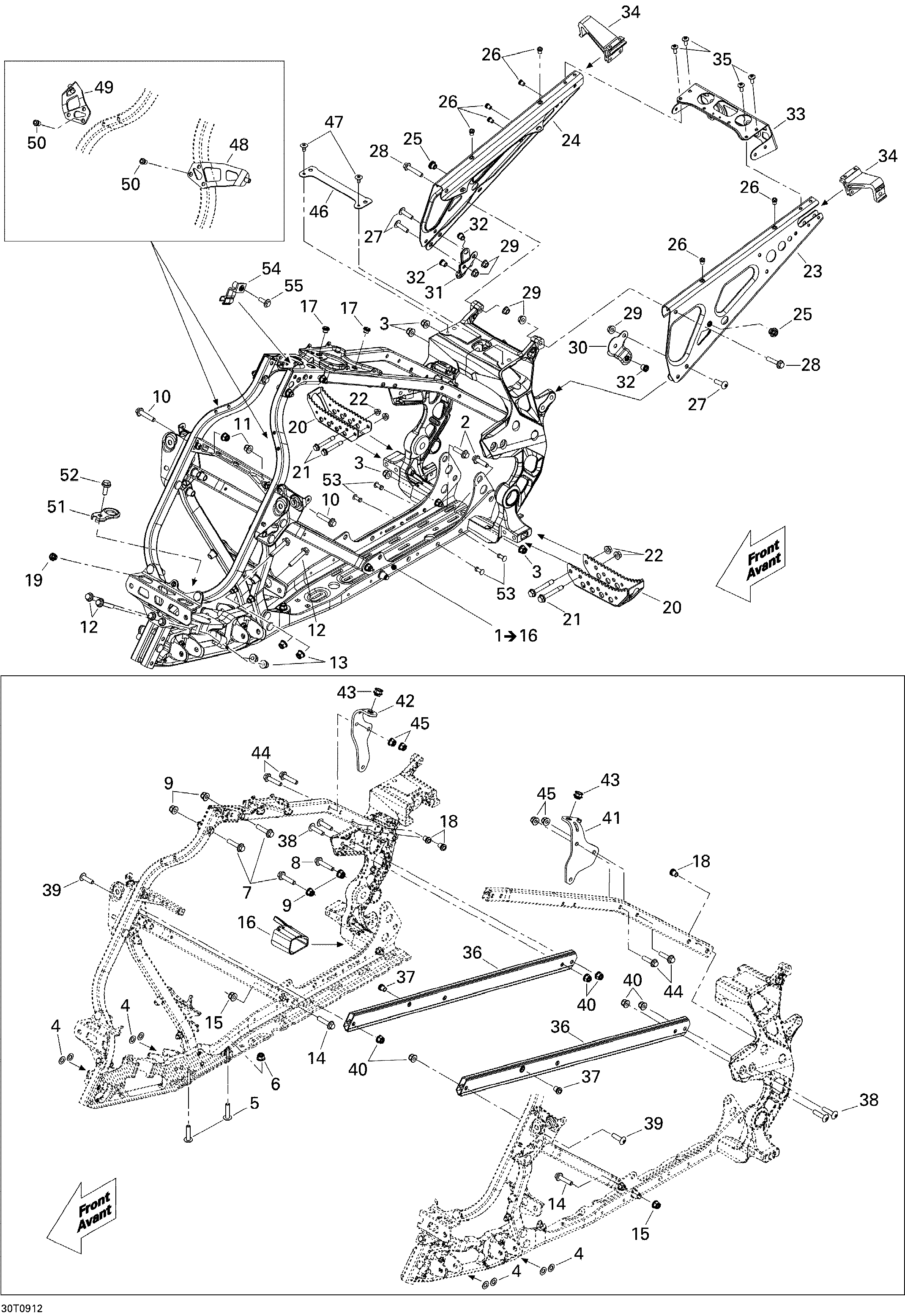

09- Frame для BRP DS 450 EFI - 2009
-
№АртикулНазвание
-
1705201043 Frame Ass'y. Includes 1 to 16Frame Ass'y. Includes 1 to 16
-
2207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
4506151252 WasherWasher
-
5250000316 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
6233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
7207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
8207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
10207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
11233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
12207684534 Hex. Flanged ScrewHex. Flanged Screw
-
13233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
14207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
15233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
16705500931 Skid PlateSkid Plate
-
17293450274 InsertInsert
-
18293450268 InsertInsert
-
19293450275 InsertInsert
-
20705201044 FootrestFootrest
-
21207586034 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
22233181434 Hex. Flanged Nut, M8Hex. Flanged Nut, M8
-
23705201081 LH ExtensionLH Extension
-
24705201339 RH ExtensionRH Extension
-
25293450274 InsertInsert
-
26293450268 InsertInsert
-
27250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
28207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
29233181434 Hex. Flanged Nut, M8Hex. Flanged Nut, M8
-
30707600399 LH BracketLH Bracket
-
31705201485 RH BracketRH Bracket
-
32293450275 InsertInsert
-
33705201898 Plate SupportPlate Support
-
34705002094 Rear Fender SupportRear Fender Support
-
35250000223 Torx ScrewTorx Screw
-
36705201059 Side MemberSide Member
-
37293450275 InsertInsert
-
38250000256 Torx Screw M8 X 35Torx Screw M8 X 35
-
39250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
40233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
41705201380 LH Engine SupportLH Engine Support
-
42705201381 RH Engine SupportRH Engine Support
-
43293450278 InsertInsert
-
44207683534 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
45233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
46705201406 Rear BraceRear Brace
-
47293150008 Pop Rivet 3/16''Pop Rivet 3/16''
-
48705201461 LH Body Attachment PlateLH Body Attachment Plate
-
49705201462 RH Body Attachment PlateRH Body Attachment Plate
-
50293450268 InsertInsert
-
51705201550 Radiator GuideRadiator Guide
-
52207561634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
53390407200 Pop Rivet 3/16''Pop Rivet 3/16''
-
54707000561 Cable SupportCable Support
-
55243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
