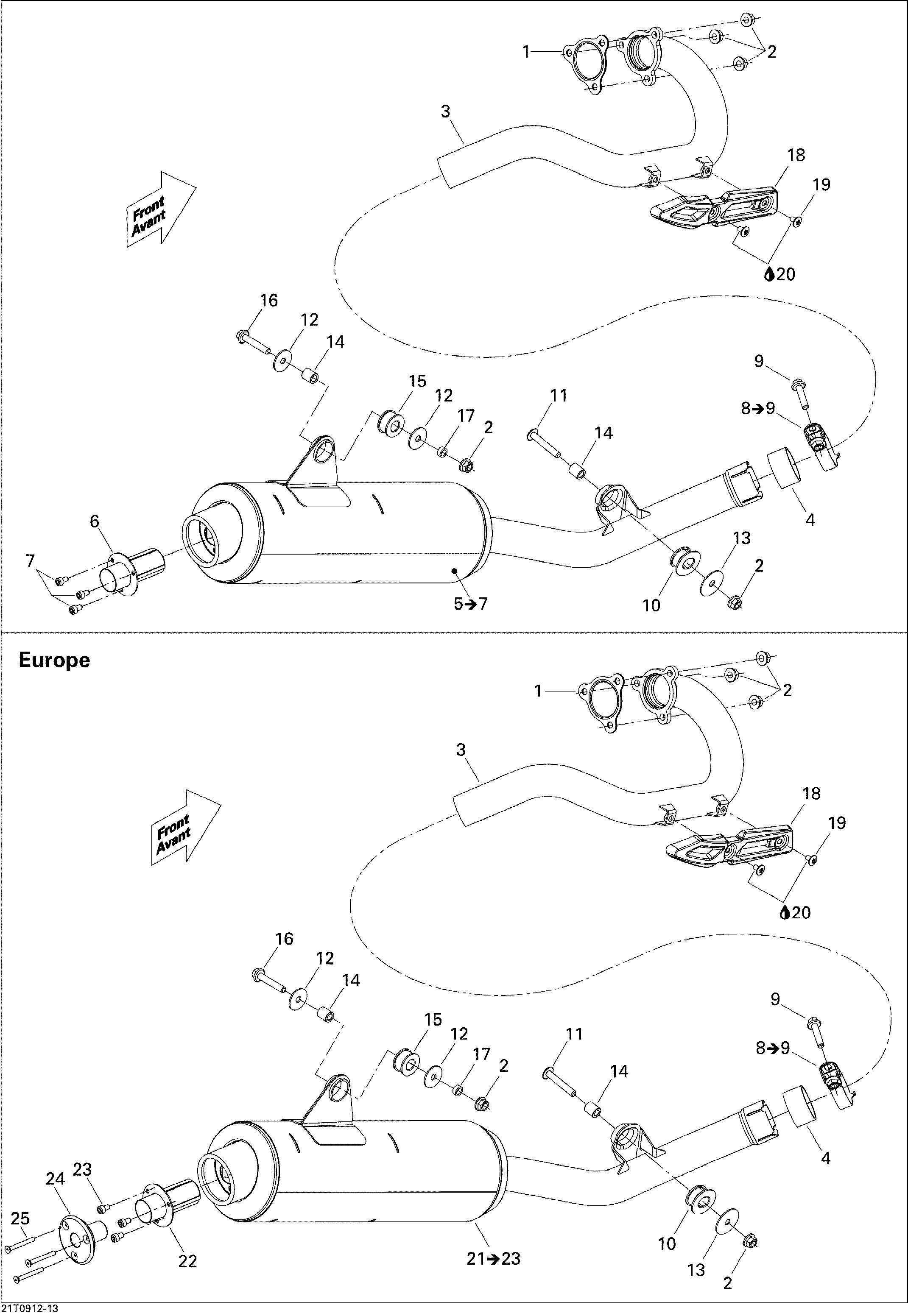

01- Exhaust System для BRP DS 450 EFI - 2009
-
№АртикулНазвание
-
1707600445 GasketGasket
-
2233081436 Hex. Flanged NutHex. Flanged Nut
-
3707600401 Tuned PipeTuned Pipe
-
4514054289 Pipe GasketPipe Gasket
-
5707600333 Muffler. Includes 5 to 7Muffler. Includes 5 to 7
-
6707600468 Spark Shield End PieceSpark Shield End Piece
-
7205051060 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
8707600705 Collar. Includes 8 to 9Collar. Includes 8 to 9
-
9207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
10707600448 RubberRubber
-
11250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
12250200073 Flat WasherFlat Washer
-
13707600525 WasherWasher
-
14707600524 BushingBushing
-
15707600077 RubberRubber
-
16207684534 Hex. Flanged ScrewHex. Flanged Screw
-
17293900067 BushingBushing
-
18707600432 Heat ShieldHeat Shield
-
19250000210 Torx Truss Screw (Nylon Patch)Torx Truss Screw (Nylon Patch)
-
20293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
21707600536 Muffler. Inclus 21 to 23, EuropeMuffler. Inclus 21 to 23, Europe
-
22707600468 Spark Shield End Piece. EuropeSpark Shield End Piece. Europe
-
23205051060 Socket Head Screw M5 X 10. EuropeSocket Head Screw M5 X 10. Europe
-
24707600630 Restrictor. EuropeRestrictor. Europe
-
25205354560 Socket Head Screw M5 X 45. EuropeSocket Head Screw M5 X 45. Europe
