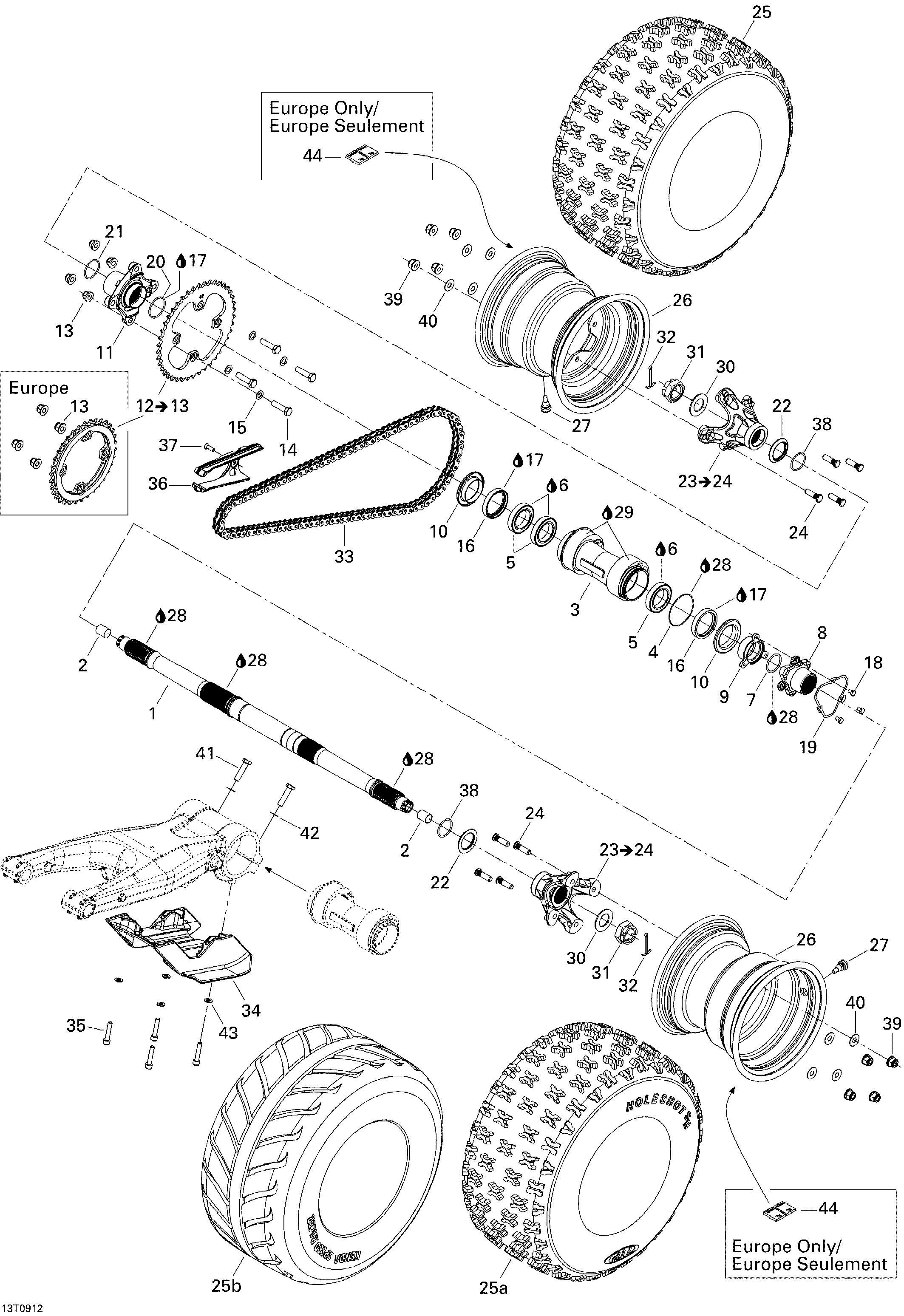

08- Drive System, Rear для BRP DS 450 EFI - 2009
-
№АртикулНазвание
-
1705501079 Drive AxleDrive Axle
-
2293730044 CapCap
-
3705501014 Chain TightenerChain Tightener
-
4293300115 O-RingO-Ring
-
5293350053 Ball BearingBall Bearing
-
6413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
7293300089 O-RingO-Ring
-
8705500646 Brake Disc HubBrake Disc Hub
-
9705500649 Nut M40Nut M40
-
10705500648 Wear RingWear Ring
-
11705500650 Sprocket Wheel HubSprocket Wheel Hub
-
12715000592 Sprocket Kit, 42 Teeth. Includes 12 to 13, Except EuropeSprocket Kit, 42 Teeth. Includes 12 to 13, Except Europe
-
12715000643 Sprocket Kit, 34 Teeth. Includes 12 to 13, EuropeSprocket Kit, 34 Teeth. Includes 12 to 13, Europe
-
13233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
14207004036 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
15250200084 Flat WasherFlat Washer
-
16293250164 Oil SealOil Seal
-
17293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
18207161034 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
19705500669 Lock WasherLock Washer
-
20293300099 O-RingO-Ring
-
21705500108 Ring RetainerRing Retainer
-
22705500663 Support RingSupport Ring
-
23705500664 Rear Wheel Hub Ass'y. Includes 23 to 24Rear Wheel Hub Ass'y. Includes 23 to 24
-
24250000138 Wheel StudWheel Stud
-
25a705500787 Rear Tire. Except EuropeRear Tire. Except Europe
-
25b705500970 Rear Tire. EuropeRear Tire. Europe
-
26705500668 Rear RimRear Rim
-
27705400193 Rim ValveRim Valve
-
28293550019 Grease, 60 GGrease, 60 G
-
29293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
30250200087 Flat WasherFlat Washer
-
31250100093 Hex. Castlellated Nut M27Hex. Castlellated Nut M27
-
32250400028 Cotter PinCotter Pin
-
33705500948 Chain. Except EuropeChain. Except Europe
-
33705501060 Chain. EuropeChain. Europe
-
34705500660 Rear Skid PlateRear Skid Plate
-
35205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
36705500659 Chain SliderChain Slider
-
37205862034 Socket Head Screw M6, Scotch GripSocket Head Screw M6, Scotch Grip
-
38705500065 Ring RetainerRing Retainer
-
39250100105 Flanged Nut M10Flanged Nut M10
-
40250200080 Flat WasherFlat Washer
-
41207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
42250200084 Flat WasherFlat Washer
-
43234081410 Flat Washer 8 mmFlat Washer 8 mm
-
44705501430 Adhesive Weight, 1/4 Oz. EuropeAdhesive Weight, 1/4 Oz. Europe
-
44705500824 Adhesive Weight, 1/2 Oz. EuropeAdhesive Weight, 1/2 Oz. Europe
