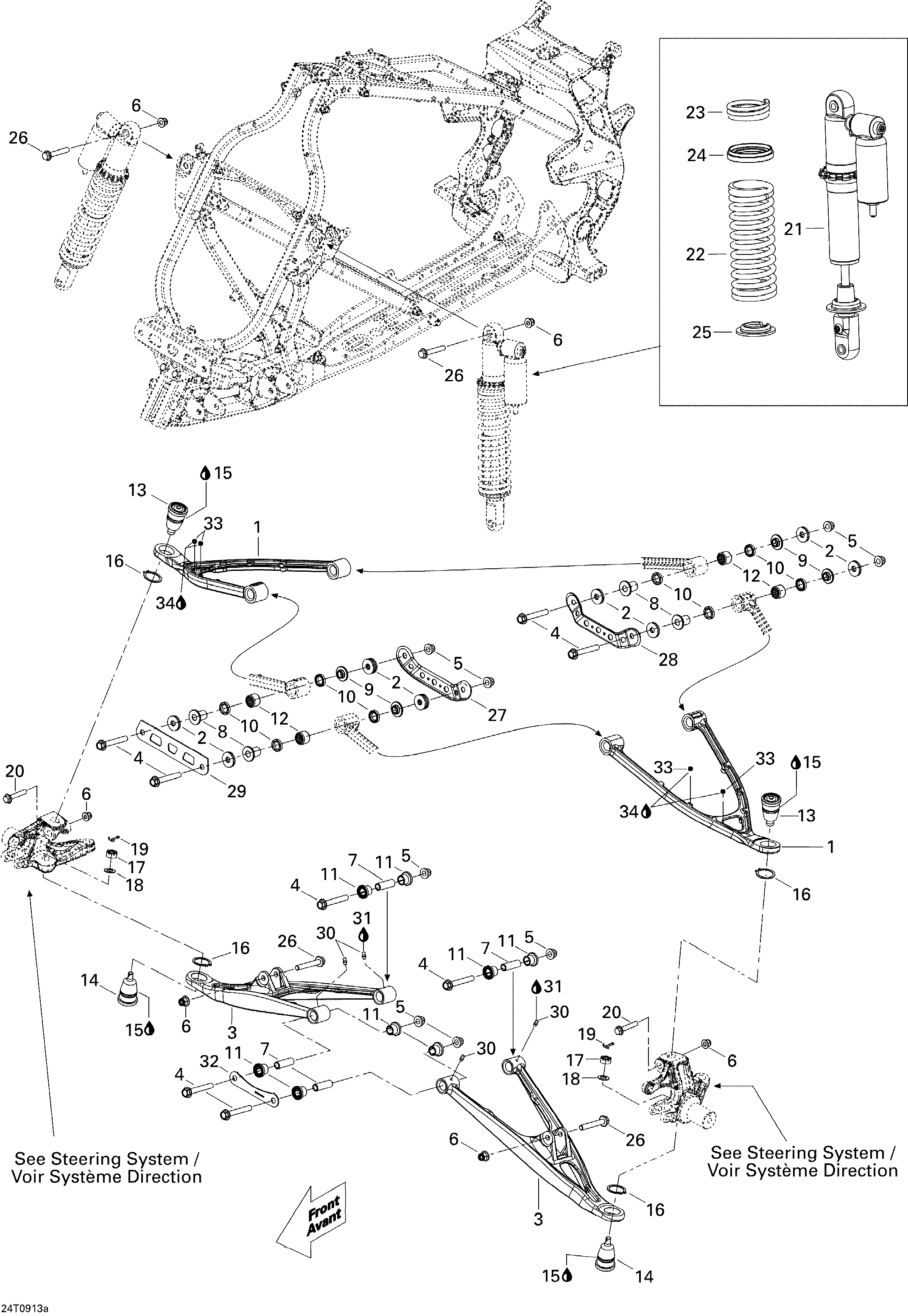

07- Front Suspension Xxc для BRP DS 450 Xxc, Xmx EFI - 2009
-
№АртикулНазвание
-
1706200864 Upper ArmUpper Arm
-
2250200014 Flat WasherFlat Washer
-
3706200456 Lower ArmLower Arm
-
4207607036 Hex. Flanged ScrewHex. Flanged Screw
-
5233201436 Flanged Elastic NutFlanged Elastic Nut
-
6233201434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
7706200678 Inner BushingInner Bushing
-
8706200888 Inner BushingInner Bushing
-
9706200889 Inner BushingInner Bushing
-
10293200120 SealSeal
-
11706200181 CushionCushion
-
12293350064 Needle BearingNeedle Bearing
-
13706200462 Upper Ball JointUpper Ball Joint
-
14706200461 Lower Ball JointLower Ball Joint
-
15413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
16293370009 Circlip 32 mmCirclip 32 mm
-
17250100094 Castle NutCastle Nut
-
18250200084 Flat WasherFlat Washer
-
19250400035 Cotter PinCotter Pin
-
20207605534 Hex. Flanged ScrewHex. Flanged Screw
-
21706200836 Front ShockFront Shock
-
22706200830 SpringSpring
-
23706200873 SpringSpring
-
24503191281 Spring SpacerSpring Spacer
-
25706000528 Spring StopperSpring Stopper
-
26207606534 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
27706200532 Front Suspension Upper PlateFront Suspension Upper Plate
-
28706200532 Front Suspension Upper PlateFront Suspension Upper Plate
-
29706200759 PlatePlate
-
30250000315 Grease FittingGrease Fitting
-
31293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
32706200722 Front Suspension Lower PlateFront Suspension Lower Plate
-
33206260699 Socket Set Screw M6 X 6Socket Set Screw M6 X 6
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
