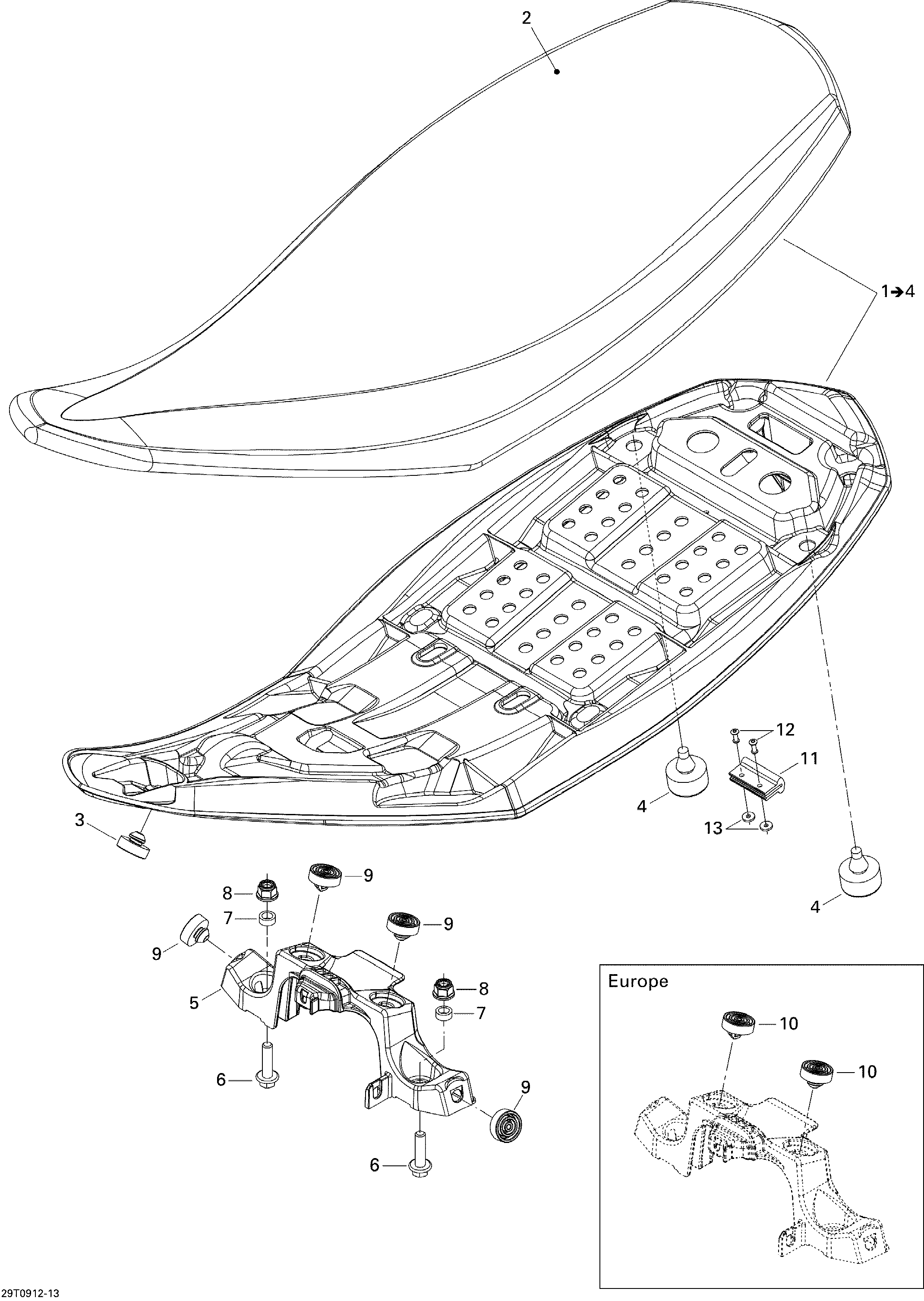

09- Seat для BRP DS 450 Xxc, Xmx EFI - 2009
-
№АртикулНазвание
-
1708000518 Seat Ass'y. Includes 1 to 4Seat Ass'y. Includes 1 to 4
-
2708000519 Seat CoverSeat Cover
-
3708000506 Rubber StopperRubber Stopper
-
4708000006 Rubber StopperRubber Stopper
-
5705201407 Seat GuideSeat Guide
-
6207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
7293900067 BushingBushing
-
8233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
9708000506 Rubber StopperRubber Stopper
-
10708000506 Rubber Stopper. EuropeRubber Stopper. Europe
-
11705201353 AnchorAnchor
-
12293150015 Pop Rivet 1/8''Pop Rivet 1/8''
-
13293150007 WasherWasher
