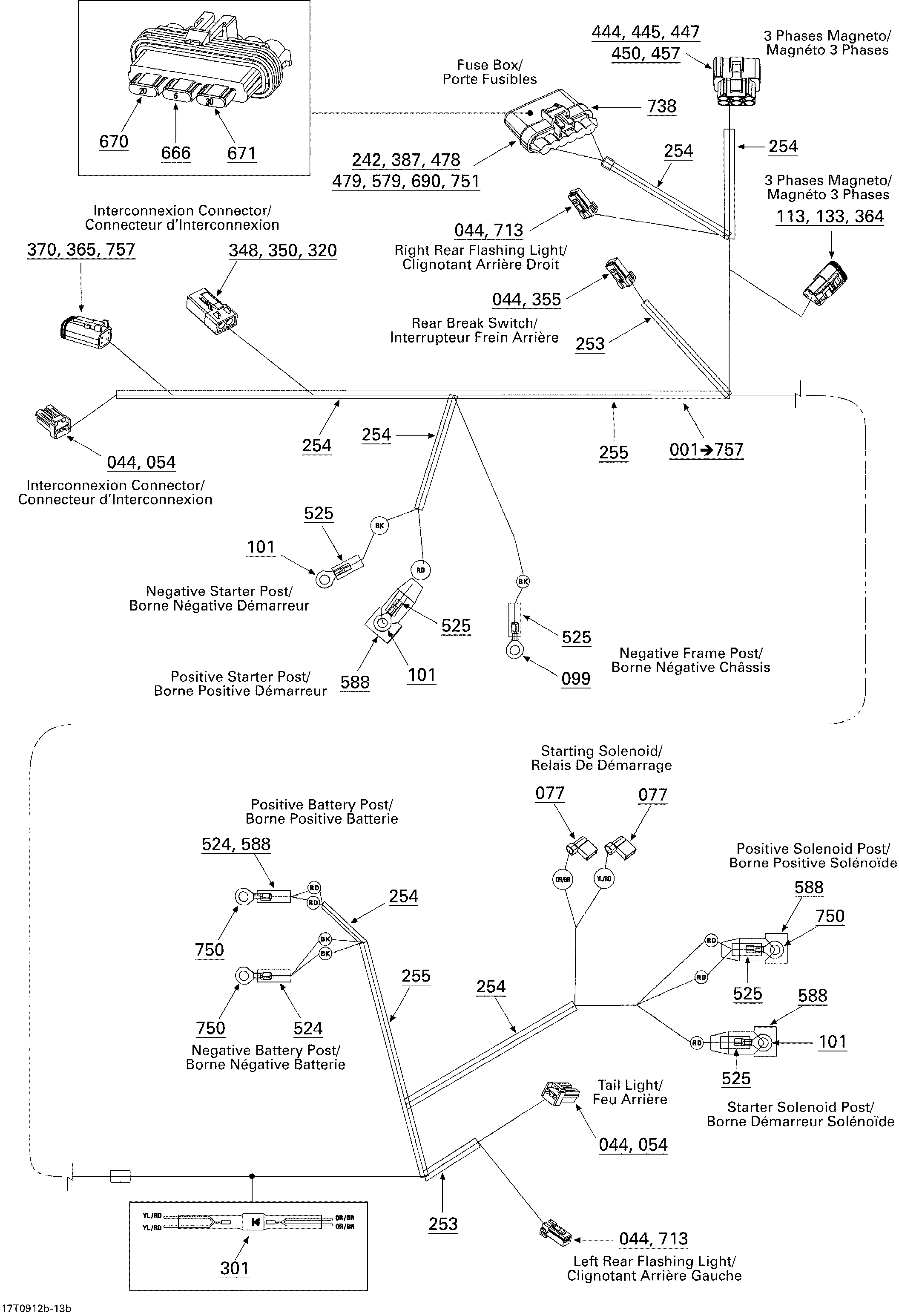

10- Electrical Harness, Rear Section Europe для BRP DS 450 Xxc, Xmx EFI - 2009
-
№АртикулНазвание
-
1710001299 Main Harness, Rear. Includes 1 to 757Main Harness, Rear. Includes 1 to 757
-
44515175231 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
77409010300 Female TerminalFemale Terminal
-
99278000992 Open BarrelOpen Barrel
-
101278001392 Open BarrelOpen Barrel
-
113278001661 Female TerminalFemale Terminal
-
133409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)(Female) Secondary Lock (3 Circuits) (Deutsch)
-
242278000218 Wire SealWire Seal
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
301409012700 DiodeDiode
-
320515175567 Female TerminalFemale Terminal
-
348278001673 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
350278001671 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
364515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
365515175672 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
370515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
444710000336 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
445710000337 Joint SealJoint Seal
-
447710000339 Secondary LockSecondary Lock
-
450710000343 CapCap
-
457710000356 Female TerminalFemale Terminal
-
478710000888 Housing, 6 CircuitsHousing, 6 Circuits
-
479710000889 LockLock
-
524512059668 Shrink TubingShrink Tubing
-
525710000482 Shrink TubingShrink Tubing
-
579710000504 Wire SealWire Seal
-
588710000526 Protector CapProtector Cap
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
670710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
671710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
690710000890 Female TerminalFemale Terminal
-
713515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
738710000897 CoverCover
-
750710000913 TerminalTerminal
-
751710000918 Female TerminalFemale Terminal
-
757278000632 Female TerminalFemale Terminal
