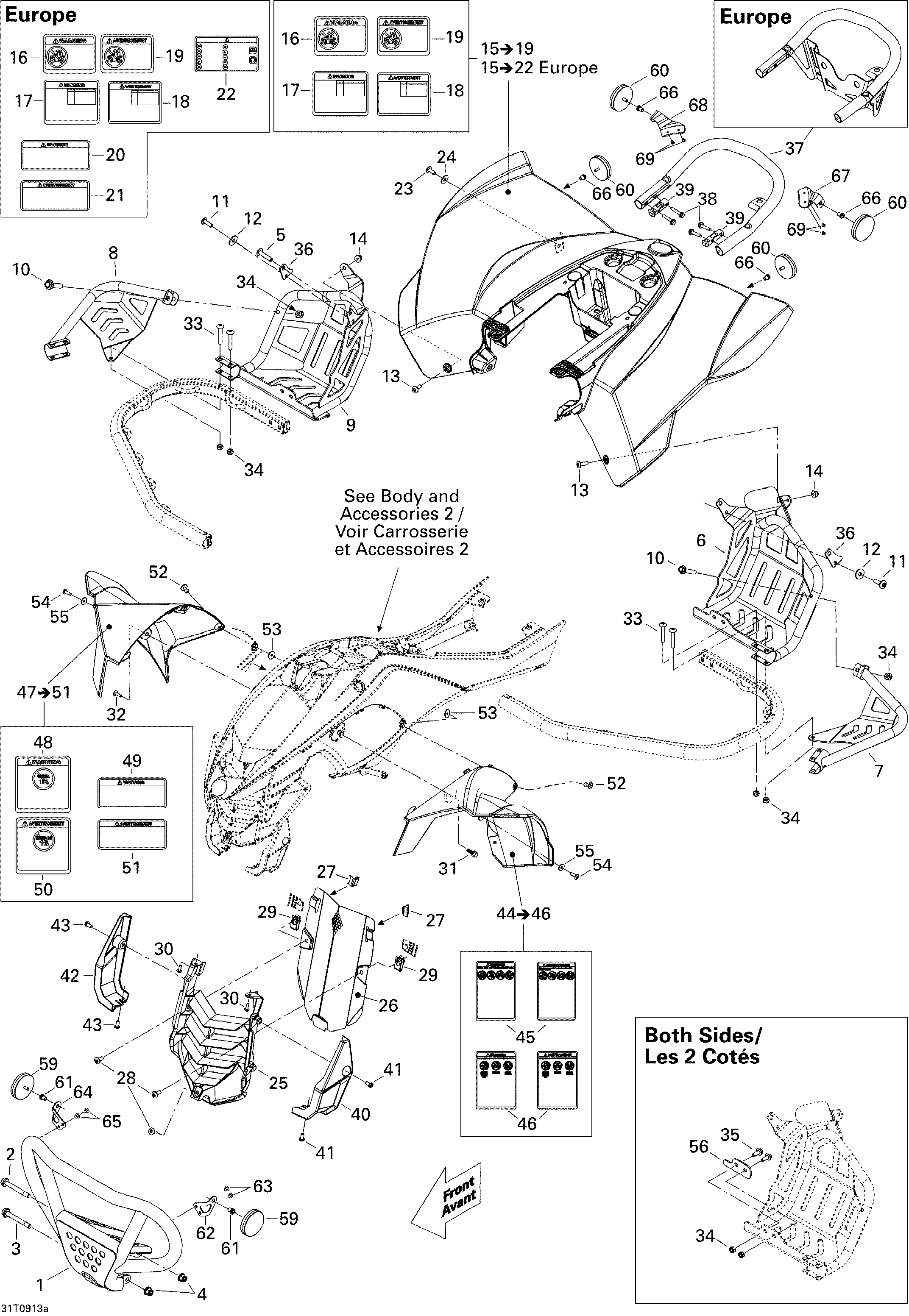

09- Body And Accessories 1 для BRP DS 450 Xxc, Xmx EFI - 2009
-
№АртикулНазвание
-
1705002767 Front BumperFront Bumper
-
2250000302 Hex. Flanged Screw M8 X 65, Scotch GripHex. Flanged Screw M8 X 65, Scotch Grip
-
3207587534 Hex. Flanged Screw M8 X 75, Scotch GripHex. Flanged Screw M8 X 75, Scotch Grip
-
4233181434 Hex. Flanged Nut, M8Hex. Flanged Nut, M8
-
5250000256 Torx Screw M8 X 35Torx Screw M8 X 35
-
6705003140 LH ProtectorLH Protector
-
7705003237 ProtectorProtector
-
8705003238 ProtectorProtector
-
9705003141 ProtectorProtector
-
10207584084 Flanged Hex. Screw M8 X 40, Scotch GripFlanged Hex. Screw M8 X 40, Scotch Grip
-
11250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
12234062670 Flat WasherFlat Washer
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
15715000572 Rear Fender Kit, Black. Includes 15 to 19, Xxc, Non EuropeRear Fender Kit, Black. Includes 15 to 19, Xxc, Non Europe
-
15715000582 Rear Fender Kit, Black. Includes 15 to 19, Xxc, Xmx EuropeRear Fender Kit, Black. Includes 15 to 19, Xxc, Xmx Europe
-
15715000997 Rear Fender Kit, Black. Includes 15 to 19, Xmx Non EuropeRear Fender Kit, Black. Includes 15 to 19, Xmx Non Europe
-
16704900005 Warning Decal, PassengerWarning Decal, Passenger
-
17704901365 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
18704901395 Warning Label, Tire Pressure, FrenchWarning Label, Tire Pressure, French
-
19704900006 Warning Label, Passenger, FrenchWarning Label, Passenger, French
-
20704901392 Warning Decal, Voie Publique. EuropeWarning Decal, Voie Publique. Europe
-
21704901393 Warning Label, French. EuropeWarning Label, French. Europe
-
22704901394 International Decal, Multilingual. EuropeInternational Decal, Multilingual. Europe
-
23250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
24234062670 Flat WasherFlat Washer
-
25715000516 Radiator Grill KitRadiator Grill Kit
-
26709200167 GrillGrill
-
27517302789 ClipClip
-
28250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
29250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
30243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
31207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
32207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
33250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
34232581434 Elastic Stop NutElastic Stop Nut
-
35207682034 Hex. Flanged ScrewHex. Flanged Screw
-
36705003377 SpacerSpacer
-
37705002769 Rear Bumper. Except EuropeRear Bumper. Except Europe
-
37705003395 Rear Bumper. EuropeRear Bumper. Europe
-
38207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
39705002913 ClampClamp
-
40705002514 LH Radiator MouldingLH Radiator Moulding
-
41250000339 Socket Screw M6 X 12Socket Screw M6 X 12
-
42705002515 RH Radiator MouldingRH Radiator Moulding
-
43250000339 Socket Screw M6 X 12Socket Screw M6 X 12
-
44715000721 LH Front Fender Kit, Black. Includes 44 to 46LH Front Fender Kit, Black. Includes 44 to 46
-
45704901878 Warning Decal, Death And Injuries. EnglishWarning Decal, Death And Injuries. English
-
45704900002 Warning Label, Death And Injuries. FrenchWarning Label, Death And Injuries. French
-
46704901875 Warning Decal, Death And Injuries. EnglishWarning Decal, Death And Injuries. English
-
46704901441 Warning Label, Death And Injuries. FrenchWarning Label, Death And Injuries. French
-
47715000569 RH Front Fender Kit, Black. Includes 47 to 51RH Front Fender Kit, Black. Includes 47 to 51
-
48704900011 Warning Decal, Under 16 Years OldWarning Decal, Under 16 Years Old
-
49704901133 Warning Decal, PerformanceWarning Decal, Performance
-
50704900012 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
51704901135 Warning Decal, Performance, FrenchWarning Decal, Performance, French
-
52293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
53503191273 WasherWasher
-
54250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
55234062670 Flat WasherFlat Washer
-
56705003378 SpacerSpacer
-
59705002409 Reflector, AmberReflector, Amber
-
60705002408 Reflector, RedReflector, Red
-
61293450268 InsertInsert
-
62705002655 LH Reflector SupportLH Reflector Support
-
63293150144 Stavex RivetStavex Rivet
-
64705002656 RH Reflector SupportRH Reflector Support
-
65293150144 Stavex RivetStavex Rivet
-
66293450268 InsertInsert
-
67705002911 LH SupportLH Support
-
68705002912 RH SupportRH Support
-
69293150144 Stavex RivetStavex Rivet
