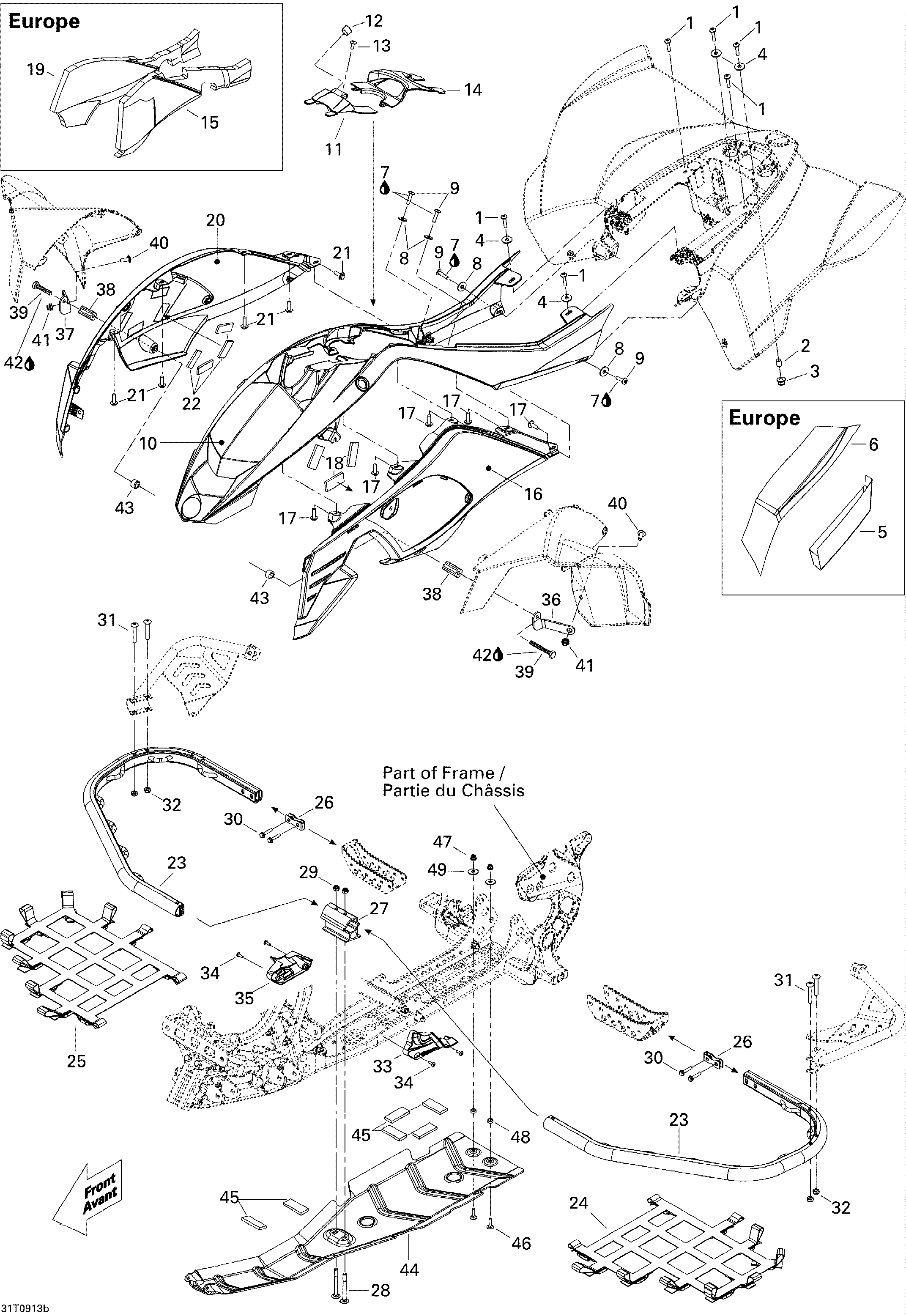

09- Body And Accessories 2 для BRP DS 450 Xxc, Xmx EFI - 2009
-
№АртикулНазвание
-
1250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
2709000162 BushingBushing
-
3233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
4391301600 WasherWasher
-
5705003351 Reflective Sheet. EuropeReflective Sheet. Europe
-
6705003357 Reflective Sheet. EuropeReflective Sheet. Europe
-
7293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
8234062670 Flat WasherFlat Washer
-
9250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
10705002157 Front fasciaFront fascia
-
11705001758 Dash-Board. Except EuropeDash-Board. Except Europe
-
11705003316 Dash-Board. EuropeDash-Board. Europe
-
12572051500 Cap. EuropeCap. Europe
-
13250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
14705002288 Access CoverAccess Cover
-
15705003293 L.H. Foam. EuropeL.H. Foam. Europe
-
16705002961 LH Side PannelLH Side Pannel
-
17243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
18705002447 Gasket. Except EuropeGasket. Except Europe
-
19705003292 R.H. Foam. EuropeR.H. Foam. Europe
-
20705002962 RH Side PannelRH Side Pannel
-
21243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
22705002447 Gasket. Except EuropeGasket. Except Europe
-
23705003065 Nerf BarNerf Bar
-
24705001952 LH NetLH Net
-
25705001953 RH NetRH Net
-
26705002646 Attachment PlateAttachment Plate
-
27705002580 Nerf Bar AttachmentNerf Bar Attachment
-
28207788036 Carriage Bolt M8 X 80Carriage Bolt M8 X 80
-
29232581434 Elastic Stop NutElastic Stop Nut
-
30207682534 Hex. Flanged ScrewHex. Flanged Screw
-
31250000298 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
32232581434 Elastic Stop NutElastic Stop Nut
-
33705002631 LH Engine MouldingLH Engine Moulding
-
34250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
35705002632 RH Engine MouldingRH Engine Moulding
-
36705002695 LH Fender SupportLH Fender Support
-
37705002696 RH Fender SupportRH Fender Support
-
38705002697 BushingBushing
-
39207066060 Hex. Screw M6 X 60. EuropeHex. Screw M6 X 60. Europe
-
39207265560 Hex. Screw M6 X 55, Scotch Grip. Except EuropeHex. Screw M6 X 55, Scotch Grip. Except Europe
-
40250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
41293450274 InsertInsert
-
42293800060 Loctite 243, 10 ml. EuropeLoctite 243, 10 ml. Europe
-
43293900067 Bushing. EuropeBushing. Europe
-
44705201761 Skid Plate. XxcSkid Plate. Xxc
-
45293830083 Protector. XxcProtector. Xxc
-
46207762534 Carriage Bolt M6 X 25. XxcCarriage Bolt M6 X 25. Xxc
-
47233261434 Flanged Elastic Nut M6. XxcFlanged Elastic Nut M6. Xxc
-
48293900067 Bushing. XxcBushing. Xxc
-
49234062600 Flat Washer M6, Stainless. XxcFlat Washer M6, Stainless. Xxc
