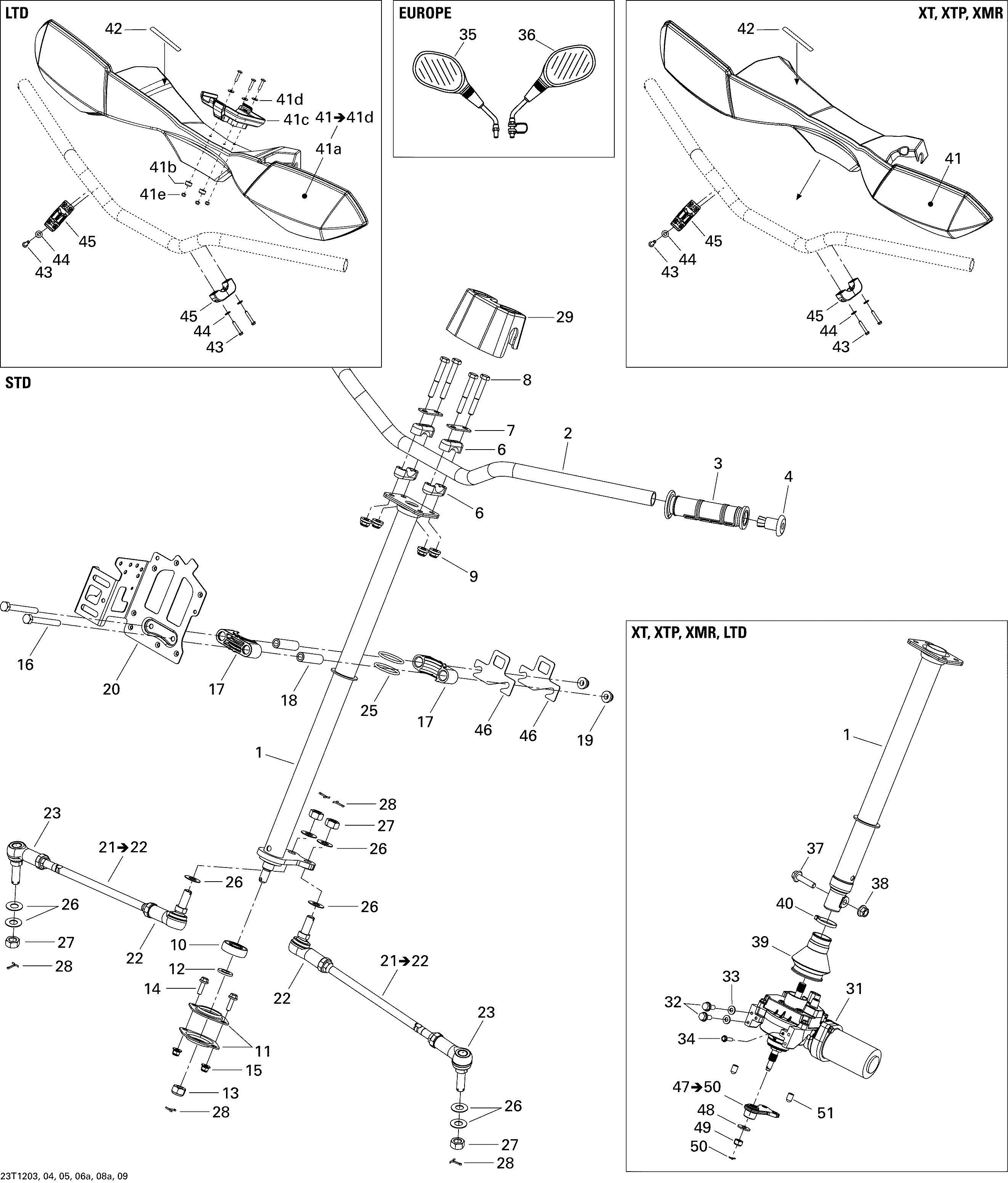

07- Steering для BRP Outlander MAX 800REFI LTD - 2012
-
№АртикулНазвание
-
1709400968 Main Tube, BlackMain Tube, Black
-
2709400877 Handle Bar, BlackHandle Bar, Black
-
3709400443 Handle Grip, GreyHandle Grip, Grey
-
4709400449 End PieceEnd Piece
-
6709400919 Steering SupportSteering Support
-
7709400509 StiffnerStiffner
-
8207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
16207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
17709400471 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20709400751 Module SupportModule Support
-
21709401059 Tie Rod Ass'yTie Rod Ass'y
-
22709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
23709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
25293300068 O-RingO-Ring
-
26706200281 Hardened WasherHardened Washer
-
27250100099 Nut M12Nut M12
-
28211400013 Cotter PinCotter Pin
-
31709401071 Power Steering AssistPower Steering Assist
-
32207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
33234281474 Conical Spring Washer M8Conical Spring Washer M8
-
34210252040 Hex. Forming ScrewHex. Forming Screw
-
35709400406 LH Mirror. EURLH Mirror. EUR
-
36709400407 RH Mirror. EURRH Mirror. EUR
-
37207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39709400674 BellowsBellows
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41703100248 Handle Bar ProtectorHandle Bar Protector
-
41a709400952 Handle Bar ProtectorHandle Bar Protector
-
41b709400781 Rubber BumperRubber Bumper
-
41c709400764 GPS Module SupportGPS Module Support
-
41d234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
41e232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
42704901558 Decal, Dynamic Power SteeringDecal, Dynamic Power Steering
-
43241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
44211200035 Flat WasherFlat Washer
-
45517303264 U-ClampU-Clamp
-
46709400734 Shim 2 mmShim 2 mm
-
46709400735 Shim 1 mmShim 1 mm
-
47703500784 Lower Main Tube Kit. Includes 47 to 50Lower Main Tube Kit. Includes 47 to 50
-
48250200086 Flat WasherFlat Washer
-
49250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
50250400034 Cotter PinCotter Pin
-
51709401032 CapCap
