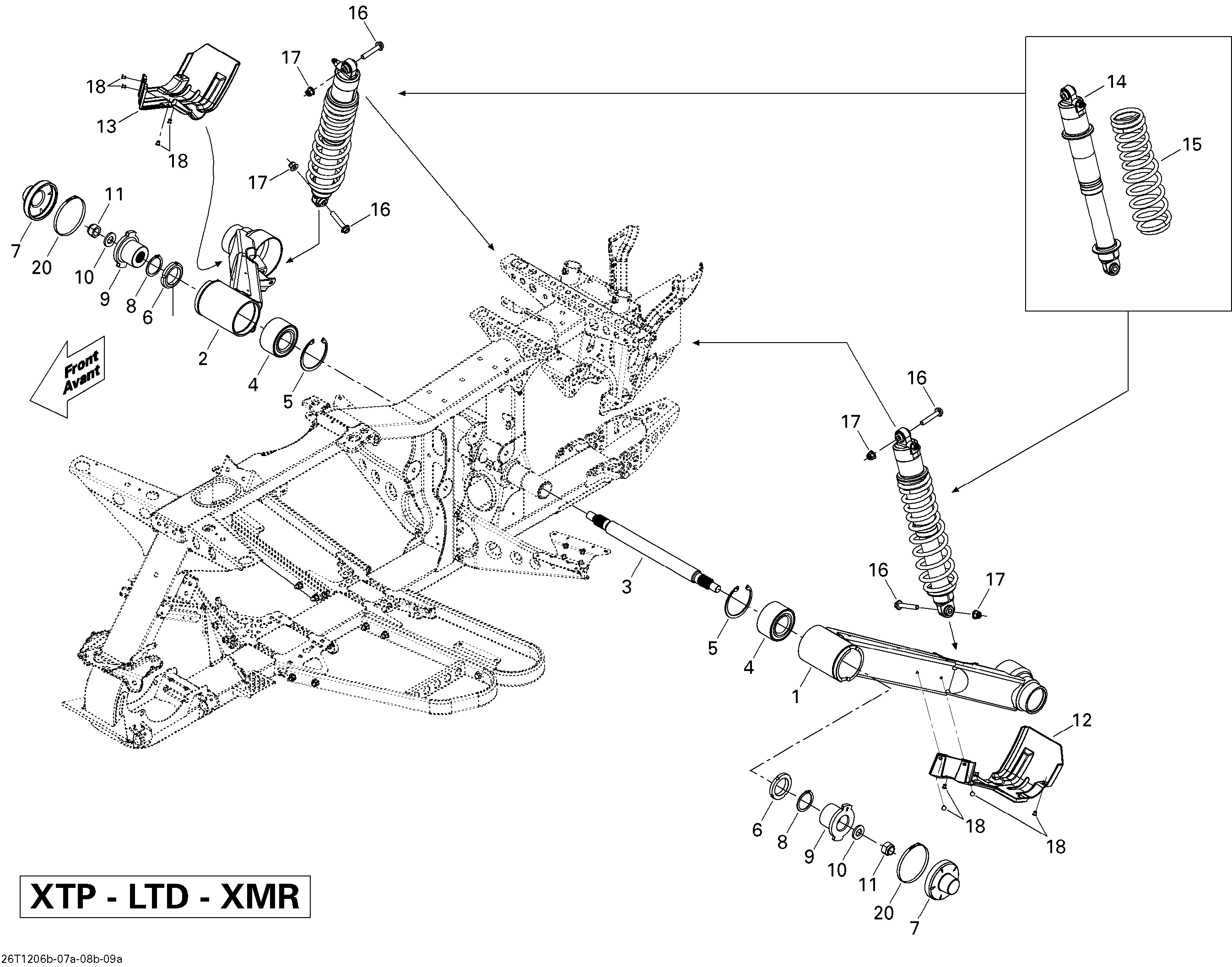

08- Rear Suspension для BRP Outlander MAX 800REFI LTD - 2012
-
№АртикулНазвание
-
1706001188 LH Swing ArmLH Swing Arm
-
2706001190 RH Swing ArmRH Swing Arm
-
3706001078 Sway BarSway Bar
-
4293350037 Ball BearingBall Bearing
-
5293370041 CirclipCirclip
-
6706000221 NutNut
-
7706000749 CoverCover
-
8293370027 Circlip 45 mmCirclip 45 mm
-
9706000554 LeverLever
-
10250200045 WasherWasher
-
11232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
12706000333 LH ProtectorLH Protector
-
13706000334 RH ProtectorRH Protector
-
14706001000 Rear ShockRear Shock
-
15706000836 Rear SpringRear Spring
-
16207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
17233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20293650162 Oetiker ClampOetiker Clamp
