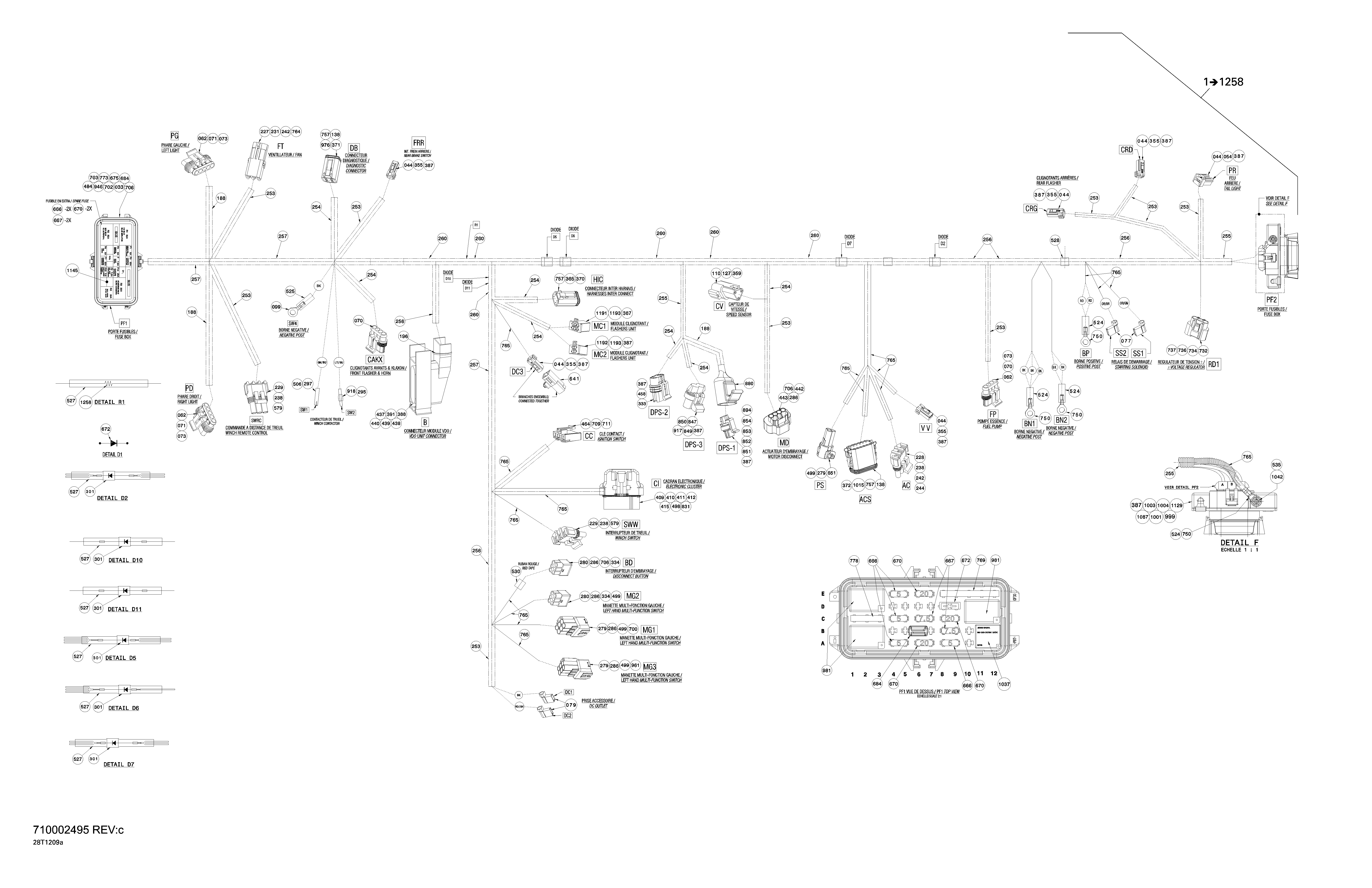

10- Main Harness Europe LTD для BRP Outlander MAX 800REFI LTD - 2012
-
№АртикулНазвание
-
1710002495 Main Wiring Harness Ass'y. Includes 1 to 1258Main Wiring Harness Ass'y. Includes 1 to 1258
-
33710000838 SealSeal
-
44515175231 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
62278001014 Female TerminalFemale Terminal
-
70409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
71710000780 ConnectorConnector
-
73278001013 Wire SealWire Seal
-
77409010300 Female TerminalFemale Terminal
-
79710000038 Female TerminalFemale Terminal
-
99278000992 Open BarrelOpen Barrel
-
110278000631 Male TerminalMale Terminal
-
127409207600 Male Lock, 3 CircuitsMale Lock, 3 Circuits
-
138293000052 Sealing CapSealing Cap
-
188409902000 Tubing 12 mmTubing 12 mm
-
196293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
227409004300 Male TerminalMale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
231278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
238278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
242278000218 Wire SealWire Seal
-
244278000216 Wire SealWire Seal
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
260515175319 Tubing 22 mmTubing 22 mm
-
279409011300 Male TerminalMale Terminal
-
280409012100 Female TerminalFemale Terminal
-
286409012300 SealSeal
-
295278001008 Insulated SheathInsulated Sheath
-
297278001007 Insulated SheathInsulated Sheath
-
301409012700 DiodeDiode
-
333278001325 Fuse HolderFuse Holder
-
334710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
359515175666 Male HousingMale Housing
-
365515175672 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
370515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
372515175679 Female Lock, 12 CircuitsFemale Lock, 12 Circuits
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
415515175806 Female TerminalFemale Terminal
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
442710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
443710000335 Female TerminalFemale Terminal
-
458710000357 Female TerminalFemale Terminal
-
464710000274 Female TerminalFemale Terminal
-
484415128501 SealSeal
-
498710000399 Female HousingFemale Housing
-
499710000402 Wire SealWire Seal
-
506710000421 Female TerminalFemale Terminal
-
525710000482 Shrink TubingShrink Tubing
-
535710000496 Protector CapProtector Cap
-
579710000504 Wire SealWire Seal
-
641710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
651710000722 ConnectorConnector
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
667710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
670710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
672710000748 DiodeDiode
-
675710000660 Fuse Box Ass'yFuse Box Ass'y
-
684710000781 Fuse PullerFuse Puller
-
700710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
702710000836 Female TerminalFemale Terminal
-
703710000837 Female TerminalFemale Terminal
-
706710000840 CapCap
-
709710000848 LockLock
-
711710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
732710000877 TerminalTerminal
-
734710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
737710000882 CapCap
-
750710000913 TerminalTerminal
-
757278001665 Female TerminalFemale Terminal
-
764710000992 ClipClip
-
769278002165 Bus BarBus Bar
-
773710001026 Fuse CoverFuse Cover
-
778278002165 Bus BarBus Bar
-
831710001131 Female TerminalFemale Terminal
-
847710001315 HousingHousing
-
849710001159 Wire SealWire Seal
-
850710001160 Female TerminalFemale Terminal
-
851710001161 HousingHousing
-
852710001162 LockLock
-
853710001163 Wire SealWire Seal
-
854710001164 Female TerminalFemale Terminal
-
880710001114 CapCap
-
889710001233 SealSeal
-
890710001229 TerminalTerminal
-
894710001225 CapCap
-
917710001323 LockLock
-
918278002261 Female TerminalFemale Terminal
-
921710001340 Female TerminalFemale Terminal
-
930515176621 Wire SealWire Seal
-
946278002172 FoamFoam
-
961710001446 Male Housing Terminal, 6 CircuitsMale Housing Terminal, 6 Circuits
-
976710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
981515176774 Relay, 30 AMPRelay, 30 AMP
-
1001710001633 LockLock
-
1003710001636 TerminalTerminal
-
1004710001637 SealSeal
-
1015278002377 Female Terminal Housing, 12 CircuitsFemale Terminal Housing, 12 Circuits
-
1037710001778 RelayRelay
-
1042233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1087710001905 Terminal JointTerminal Joint
-
1129710002039 Fuse BoxFuse Box
-
1145710001972 Fuse Relay LOGOFuse Relay LOGO
-
1191710002314 HousingHousing
-
1192710002313 HousingHousing
-
1193710002315 TerminalTerminal
-
1258710002674 ResistorResistor
