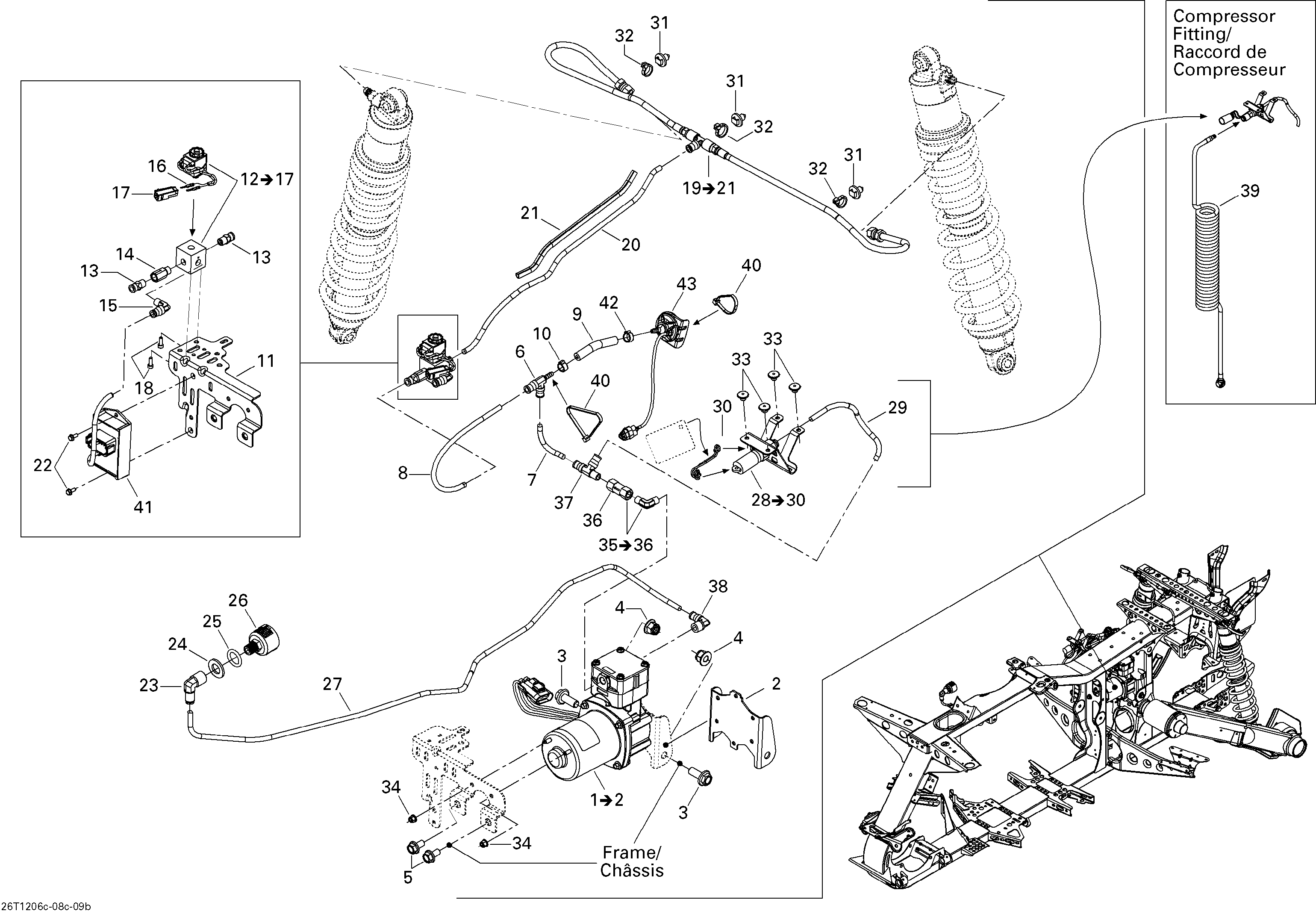

08- Rear Suspension XTP для BRP Outlander MAX 800REFI LTD - 2012
-
№АртикулНазвание
-
1706000745 Compressor Ass'y. Includes 1 to 2Compressor Ass'y. Includes 1 to 2
-
2715900072 Compressor BracketCompressor Bracket
-
3207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
4233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
6706000935 T-FittingT-Fitting
-
7415129507 HoseHose
-
8415129507 HoseHose
-
9415129495 HoseHose
-
10293650207 Clamp OetikerClamp Oetiker
-
11706000941 Front Compressor SupportFront Compressor Support
-
12706001093 Air Manifold Ass'y. Includes 12 to 17Air Manifold Ass'y. Includes 12 to 17
-
13706000869 ConnectorConnector
-
14706000860 Check ValveCheck Valve
-
15706000872 Elbow 90°Elbow 90°
-
16515175232 Male TerminalMale Terminal
-
17515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
18207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
19706001034 Pneumatic Hose Ass'y. Includes 19 to 21Pneumatic Hose Ass'y. Includes 19 to 21
-
20415129507 HoseHose
-
21515175442 Tubing 6 mmTubing 6 mm
-
22210241080 Hex. Flanged Screw M4 X 10Hex. Flanged Screw M4 X 10
-
23706000796 Elbow 90°Elbow 90°
-
24234071410 Flat Washer 14 mmFlat Washer 14 mm
-
25293300146 O-RingO-Ring
-
26706000832 FilterFilter
-
27706001128 Hose Ass'yHose Ass'y
-
28706000853 Bracket Ass'y. Includes 28 to 30Bracket Ass'y. Includes 28 to 30
-
29415129507 HoseHose
-
30414811400 O-RingO-Ring
-
31293730018 Mount DartMount Dart
-
32293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
33390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
34233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
35706000939 Fitting Ass'y. Incldues 35 to 36Fitting Ass'y. Incldues 35 to 36
-
36706000940 Check ValveCheck Valve
-
37706000795 T-FittingT-Fitting
-
38706000793 Elbow 90°Elbow 90°
-
39706000808 Auxiliary HoseAuxiliary Hose
-
40293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
41710001709 Air Suspension ModuleAir Suspension Module
-
42293650207 Clamp OetikerClamp Oetiker
-
43710001825 Air Suspension SensorAir Suspension Sensor
