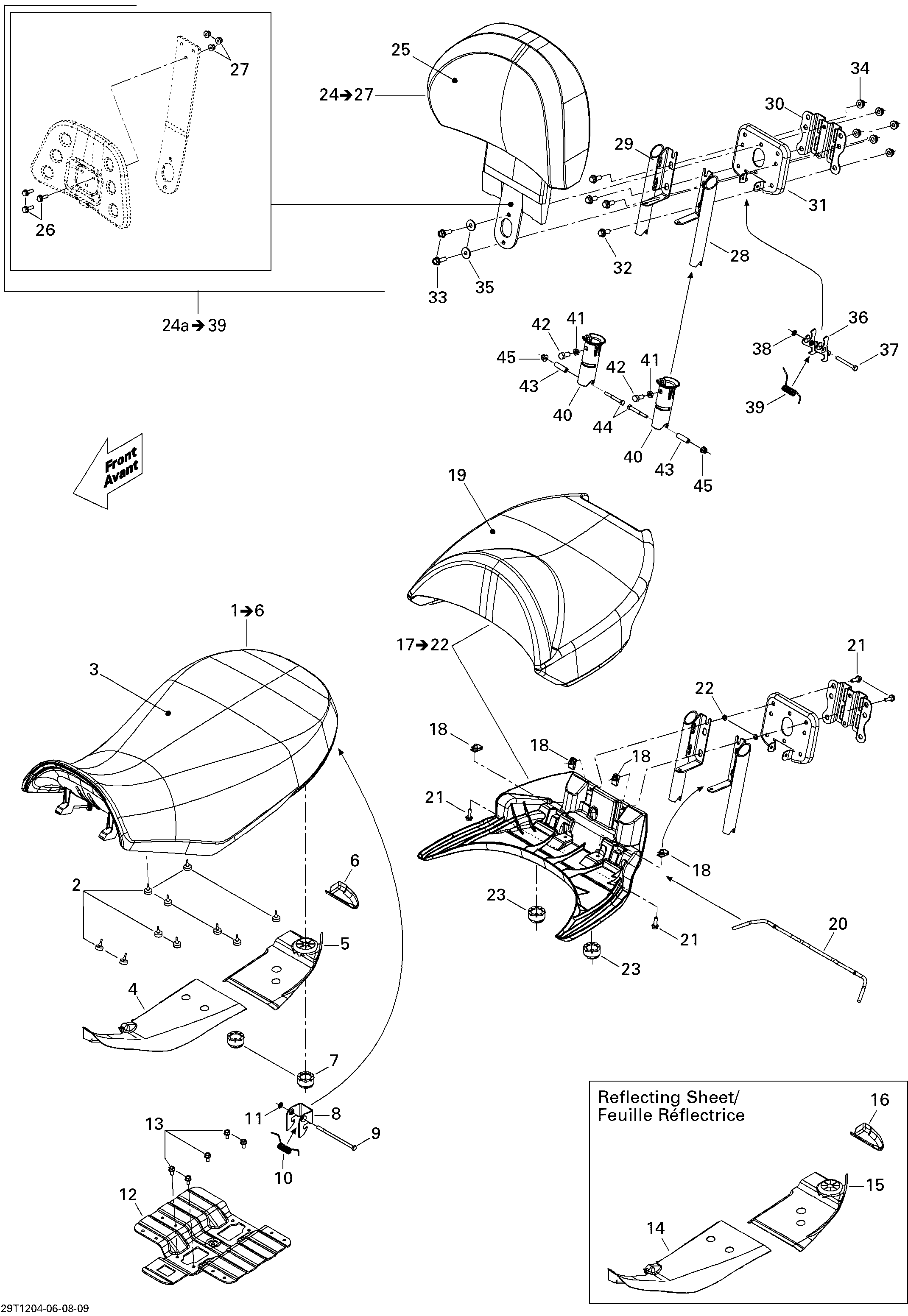

09- Seat для BRP Outlander MAX 800REFI LTD - 2012
-
№АртикулНазвание
-
1715500324 Seat Ass'y. Includes 1 to 6Seat Ass'y. Includes 1 to 6
-
2708000759 Rubber StopperRubber Stopper
-
3708000657 Seat CoverSeat Cover
-
4708000956 Reflecting SheetReflecting Sheet
-
5708000955 Reflecting SheetReflecting Sheet
-
6708000487 Reflecting SheetReflecting Sheet
-
7708000760 Bumper RubberBumper Rubber
-
8708000144 Latch, BlackLatch, Black
-
9230061034 Hex. Screw M6 X 110Hex. Screw M6 X 110
-
10708000369 SpringSpring
-
11732610072 Push NutPush Nut
-
12708000817 Reinforcement SeatReinforcement Seat
-
13210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
14708000956 Reflecting SheetReflecting Sheet
-
15708000955 Reflecting SheetReflecting Sheet
-
16708000487 Reflecting SheetReflecting Sheet
-
17708000850 Rear Seat Ass'y. Includes 17 to 22Rear Seat Ass'y. Includes 17 to 22
-
18250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
19708000851 Seat CoverSeat Cover
-
20708000822 Latch HandleLatch Handle
-
21207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
22234161471 Lock Washer M6, BlackLock Washer M6, Black
-
23708000760 Bumper RubberBumper Rubber
-
24708000853 Backrest Ass'y. Includes 24 to 27Backrest Ass'y. Includes 24 to 27
-
25708000854 Backrest CoverBackrest Cover
-
26207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
27233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
28708000439 LH Backrest StemLH Backrest Stem
-
29708000443 RH Backrest StemRH Backrest Stem
-
30708000855 Rear PlateRear Plate
-
31708000446 Front PlateFront Plate
-
32207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
33207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35234082410 Flat Washer 8 mmFlat Washer 8 mm
-
36708000448 LatchLatch
-
37207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
38732610072 Push NutPush Nut
-
39708000369 SpringSpring
-
40708000461 Rod GuideRod Guide
-
41232180600 Nut M8Nut M8
-
42207182034 Hex. Cap Screw M8 X 20Hex. Cap Screw M8 X 20
-
43708000530 Inner BushingInner Bushing
-
44207065034 Hex. Cap Screw M6 X 50Hex. Cap Screw M6 X 50
-
45233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
