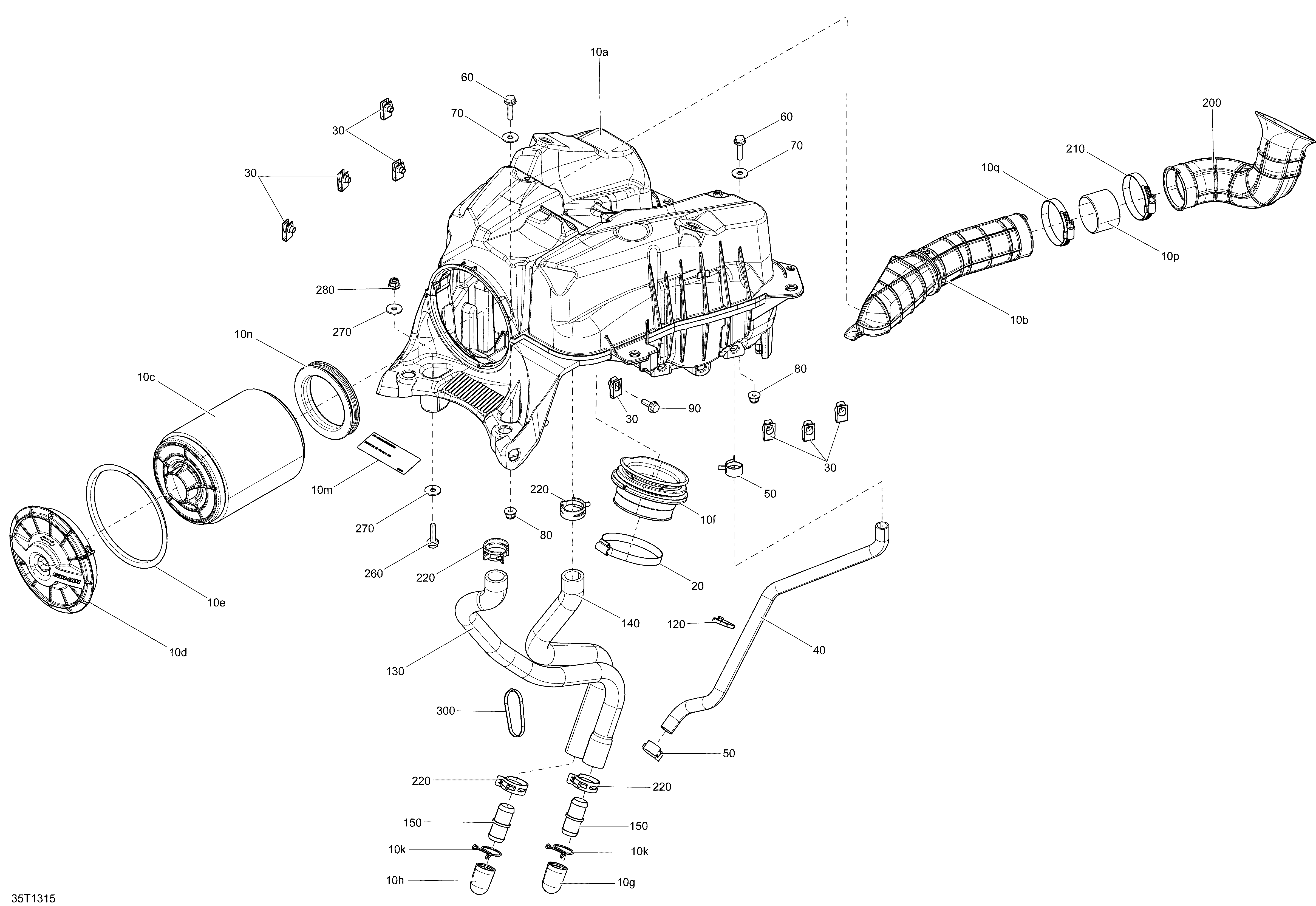

02- Air Intake для BRP Outlander 1000EFI XMR - 2013
-
№АртикулНазвание
-
10a707800531 Intake SilencerIntake Silencer
-
10b707800501 Air Intake HoseAir Intake Hose
-
10c707800371 Air FilterAir Filter
-
10d707800518 Intake Silencer CapIntake Silencer Cap
-
10e293300165 GasketGasket
-
10f707800333 Intake AdaptorIntake Adaptor
-
10g707800404 Drain TubeDrain Tube
-
10h707800080 Drain TubeDrain Tube
-
10k707800278 Retainer ClipRetainer Clip
-
10m707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
10n707800470 Air Filter AdaptorAir Filter Adaptor
-
10p707800504 RingRing
-
10q293650230 Gear ClampGear Clamp
-
20293650091 Norma ClampNorma Clamp
-
30250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
40707800453 Vent HoseVent Hose
-
50293650110 Norma ClampNorma Clamp
-
60207662534 Hex. Flanged ScrewHex. Flanged Screw
-
70391302000 Flat WasherFlat Washer
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
90207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
120414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
130707800510 Formed HoseFormed Hose
-
140707800511 Formed HoseFormed Hose
-
150707800512 Straight FittingStraight Fitting
-
200707800503 Air Intake HoseAir Intake Hose
-
210293650078 Norma ClampNorma Clamp
-
220293650109 Norma Spring ClampNorma Spring Clamp
-
260207662534 Hex. Flanged ScrewHex. Flanged Screw
-
270391302000 Flat WasherFlat Washer
-
280233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300414115200 Tie-Rap 180 mmTie-Rap 180 mm
