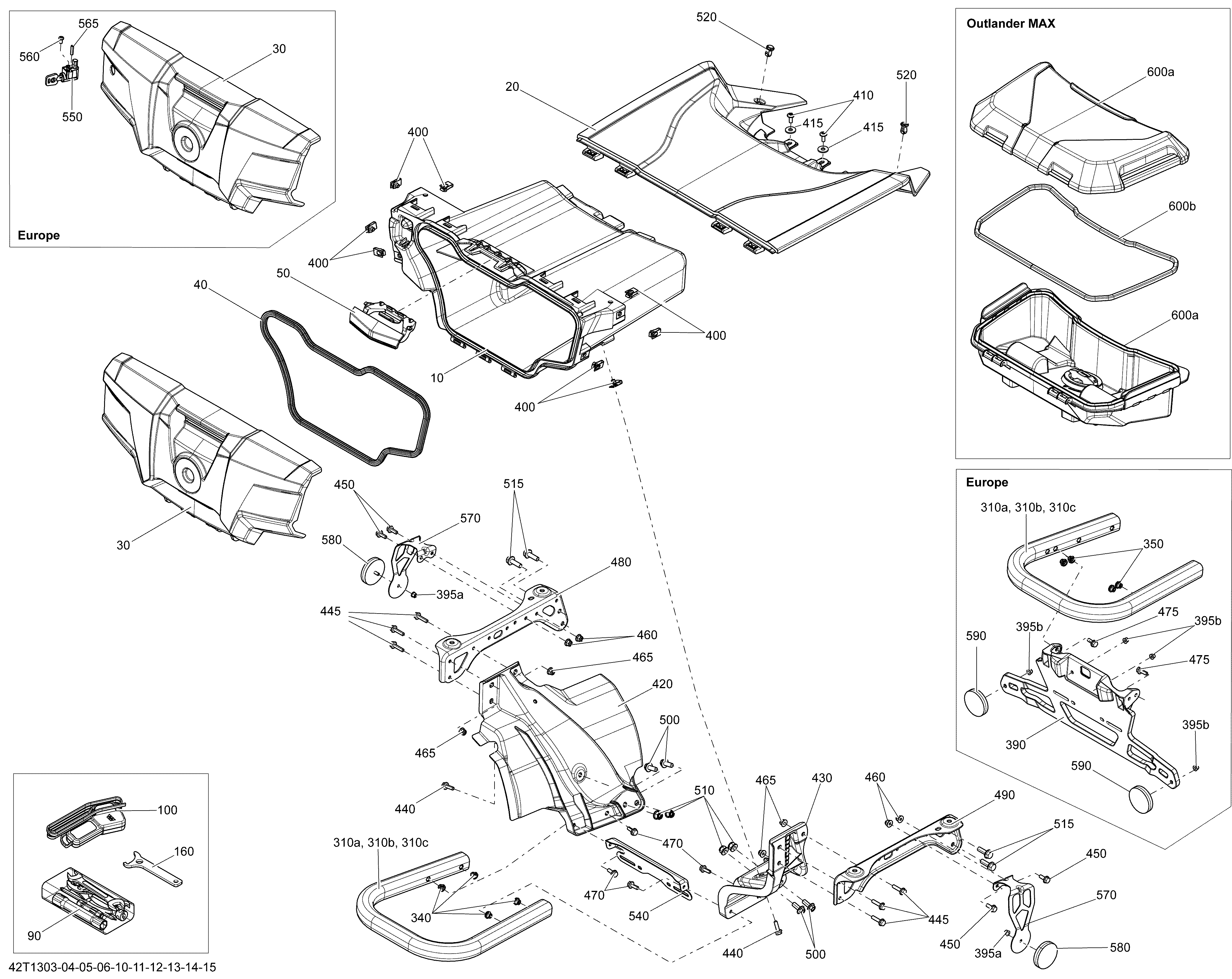

09- Rear Cargo Box для BRP Outlander 1000EFI XMR - 2013
-
№АртикулНазвание
-
10708300674 Rear Storage BoxRear Storage Box
-
20708300848 Rear Storage CoverRear Storage Cover
-
30708300150 Rear PanelRear Panel
-
40293250275 Neoprene SealNeoprene Seal
-
50708200272 HandleHandle
-
90704700148 Tool KitTool Kit
-
100710002270 Remote Control. XMRRemote Control. XMR
-
160529000035 Adjustement WrenchAdjustement Wrench
-
310a715001564 Rear Bumper. Includes 310a to 310cRear Bumper. Includes 310a to 310c
-
310b704902777 Warning Decal, Luggage Rack. English VersionWarning Decal, Luggage Rack. English Version
-
310c704902778 Warning Decal, Luggage Rack. French VersionWarning Decal, Luggage Rack. French Version
-
340293450274 InsertInsert
-
395a233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
400250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
410250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
415234062670 Flat WasherFlat Washer
-
420705006997 LH Cargo SupportLH Cargo Support
-
430705006998 RH Cargo SupportRH Cargo Support
-
440207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
445207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
450207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
460233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
465233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
470207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
480705004563 LH SupportLH Support
-
490705004564 RH SupportRH Support
-
500207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
515207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
520293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
540705004806 Plate SupportPlate Support
-
570705202576 reflector Supportreflector Support
-
580705002408 Reflector, RedReflector, Red
-
600a708200255 Removable Box Ass'y. Outlander MAX, Includes 600a to 600bRemovable Box Ass'y. Outlander MAX, Includes 600a to 600b
-
600b293250312 Neoprene Seal. Outlander MAXNeoprene Seal. Outlander MAX
