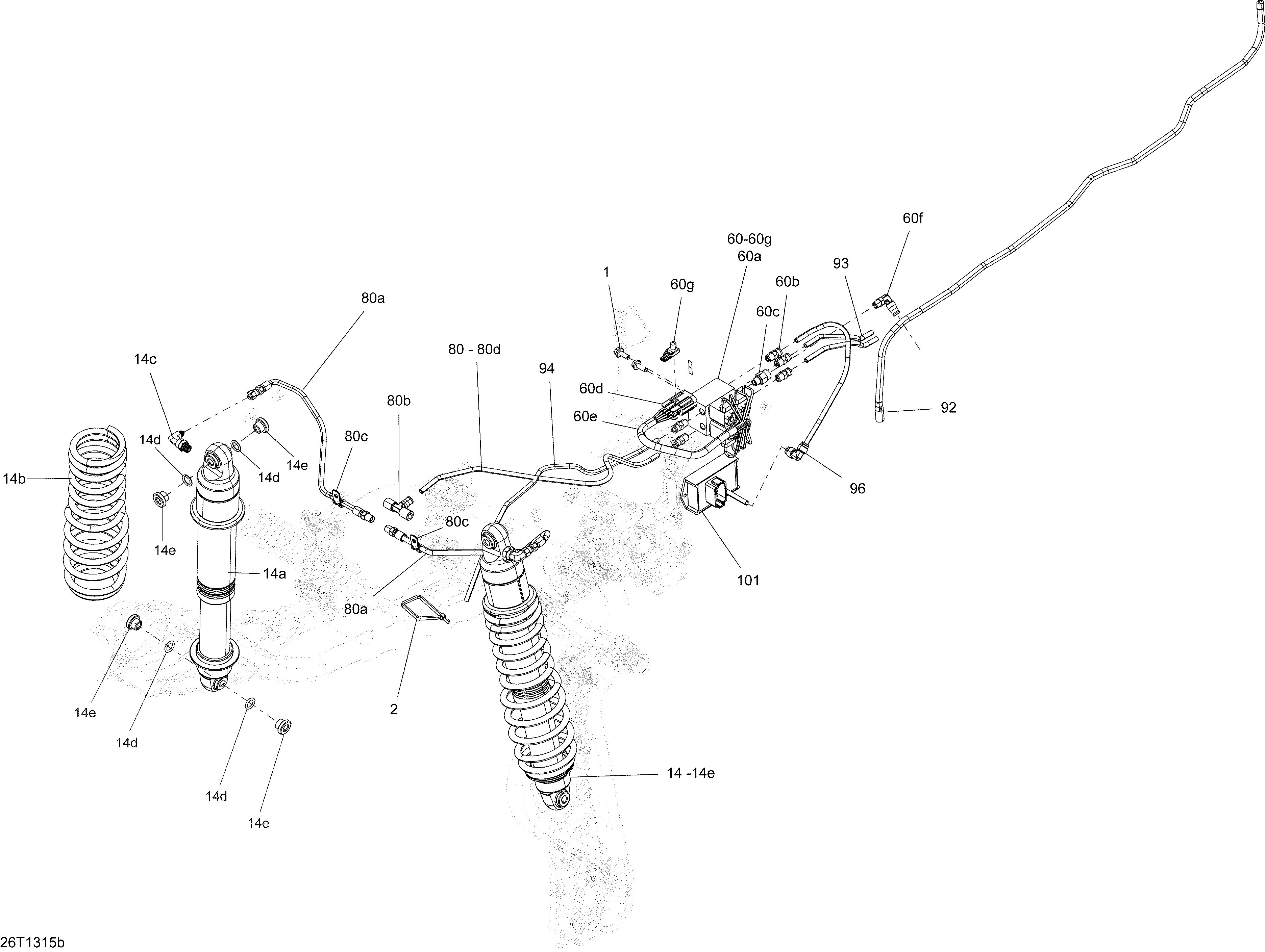

08- Rear Suspension XMR для BRP Outlander 1000EFI XMR - 2013
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16. XMRHex. Flanged Screw M6 X 16. XMR
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
14a706001202 Rear Shock Ass'y. XMR BlackRear Shock Ass'y. XMR Black
-
14b706001056 Rear Spring. XMR BlackRear Spring. XMR Black
-
14c706001200 Elbow 90°. XMR BlackElbow 90°. XMR Black
-
14d715900209 O-Ring Bushing. XMR BlackO-Ring Bushing. XMR Black
-
14e715900210 Interior Bushing. XMR BlackInterior Bushing. XMR Black
-
14a706001202 Rear Shock Ass'y. XMR CAMORear Shock Ass'y. XMR CAMO
-
14b706000836 Rear Spring. XMR CAMORear Spring. XMR CAMO
-
14c706001200 Elbow 90°. XMR CAMOElbow 90°. XMR CAMO
-
14d715900209 O-Ring Bushing. XMR CAMOO-Ring Bushing. XMR CAMO
-
14e715900210 Interior Bushing. XMR CAMOInterior Bushing. XMR CAMO
-
60706001368 Pressure Collector Ass'y. XMRPressure Collector Ass'y. XMR
-
60b706000869 Connector. XMRConnector. XMR
-
60c706000860 Check Valve. XMRCheck Valve. XMR
-
60d710001927 Housing. XMRHousing. XMR
-
60e515175830 Low Temperature Tubing 1/2''. XMRLow Temperature Tubing 1/2''. XMR
-
60f706000928 Elbow 90°. XMRElbow 90°. XMR
-
60g710002006 Holder. XMRHolder. XMR
-
80706001341 Rear Shock Distributor Ass'yRear Shock Distributor Ass'y
-
80b706000946 ''T'' Fitting''T'' Fitting
-
80c705600459 ClampClamp
-
92415080200 Hose, PolyurethaneHose, Polyurethane
-
93415129507 Hose. XMRHose. XMR
-
94415129507 Hose. XMRHose. XMR
-
96706001216 Hose Ass'yHose Ass'y
-
101710003208 Calibrated Module. XMRCalibrated Module. XMR
