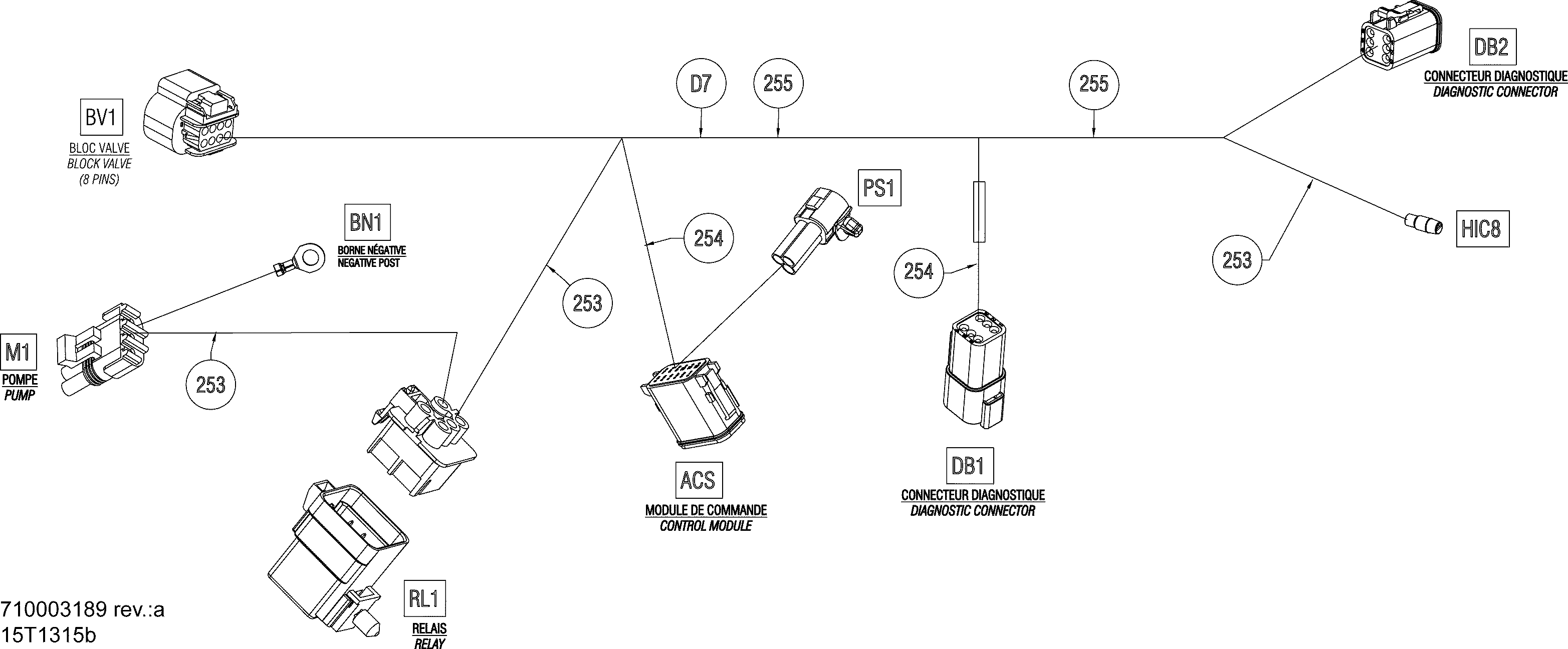

10- Electrical Harness Compressor для BRP Outlander 1000EFI XMR - 2013
-
№АртикулНазвание
-
1710003189 Compressor Harness Ass'yCompressor Harness Ass'y
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
ACS293000052 Sealing CapSealing Cap
-
ACS278001665 Female TerminalFemale Terminal
-
BN1278000992 Open BarrelOpen Barrel
-
BV1710001233 SealSeal
-
BV1710001229 TerminalTerminal
-
BV1710001928 HousingHousing
-
D7409012700 DiodeDiode
-
D8409012700 DiodeDiode
-
D9409012700 DiodeDiode
-
DB1278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
DB1710001348 Male TerminalMale Terminal
-
DB1710001539 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
DB2515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
DB2278001665 Female TerminalFemale Terminal
-
DB2710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
HIC8278000230 Male TerminalMale Terminal
-
HIC8278001008 Insulated SheathInsulated Sheath
-
M1409007300 Female TerminalFemale Terminal
-
M1278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
M1278000218 Wire SealWire Seal
-
M1278000216 Wire SealWire Seal
-
PS409011300 Male TerminalMale Terminal
-
PS710000402 Wire SealWire Seal
-
PS710000722 ConnectorConnector
-
RL1278000218 Wire SealWire Seal
-
RL1278000216 Wire SealWire Seal
-
RL1278001065 Wire SealWire Seal
-
RL1710002996 RelayRelay
