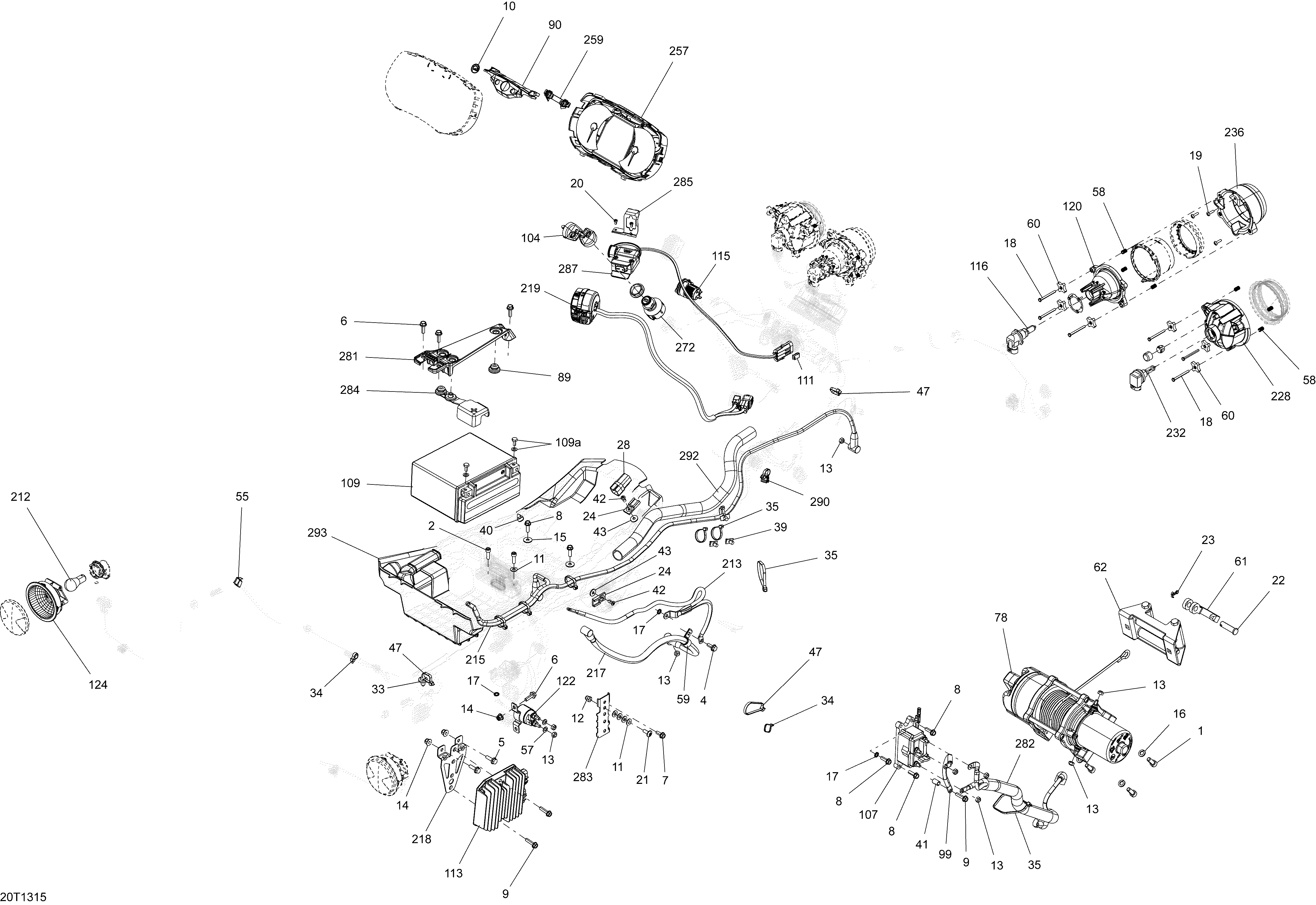

10- Electrical System для BRP Outlander 1000EFI XMR - 2013
-
№АртикулНазвание
-
1205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
2205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
4207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
9210263580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
10219902677 Logo BRP, 20 mmLogo BRP, 20 mm
-
11224061121 Flat WasherFlat Washer
-
12232361493 Domed Nut M6Domed Nut M6
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15234062670 Flat WasherFlat Washer
-
16234181401 Lock Washer 8 mmLock Washer 8 mm
-
17234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
18241044540 Hexagonal Screw K40 X 45Hexagonal Screw K40 X 45
-
19250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
20250000153 Hex. Cap Screw 6-32 X 1/4''Hex. Cap Screw 6-32 X 1/4''
-
21250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
22250400021 Clevis PinClevis Pin
-
23250400022 Cotter PinCotter Pin
-
24270000141 ClipClip
-
28710003006 HousingHousing
-
33293730040 Mount DartMount Dart
-
34293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
39293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
40293830005 Rubber PlugRubber Plug
-
41293900078 SleeveSleeve
-
42390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
43391301600 WasherWasher
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
55414227300 ClipClip
-
57234161601 Lock Washer Helical M6Lock Washer Helical M6
-
58517168600 SpringSpring
-
59518321570 Open ClampOpen Clamp
-
60572106600 HandleHandle
-
61705002329 HookHook
-
62715000011 Winch RollerWinch Roller
-
78705003296 WinchWinch
-
89705003666 Rubber GrommetRubber Grommet
-
90705004366 Cap SupportCap Support
-
99710003003 Negative HarnessNegative Harness
-
104710000817 Black-Electronic KeyBlack-Electronic Key
-
107710001000 Winch SolenoidWinch Solenoid
-
109410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
109a295500849 Battery Fastener KitBattery Fastener Kit
-
111710000992 ClipClip
-
113710001191 Voltage RegulatorVoltage Regulator
-
115710001248 Outlet DCOutlet DC
-
120710002525 High Beam Ass'yHigh Beam Ass'y
-
116415129249 Halogen BulbHalogen Bulb
-
122710001364 Starter RelayStarter Relay
-
124710001645 Tail LightTail Light
-
212520000758 BulbBulb
-
213710001747 Ground Cable Ass'yGround Cable Ass'y
-
215710001748 Battery Positive CableBattery Positive Cable
-
217710001750 Positive CablePositive Cable
-
218710001752 Rectifier SupportRectifier Support
-
219710003062 Multi-Function HandleMulti-Function Handle
-
228710002191 Low BeamLow Beam
-
232715900141 Bulb 12V 55WBulb 12V 55W
-
236710002291 RH High Front HousingRH High Front Housing
-
236710002292 LH High Front HousingLH High Front Housing
-
257710003116 Calibrated Speedometer Ass'yCalibrated Speedometer Ass'y
-
259710002312 ButtonButton
-
272710002327 Ignition SwitchIgnition Switch
-
281710002404 Fixation PlateFixation Plate
-
282710002560 Winch CablesWinch Cables
-
283710002567 BracketBracket
-
284710002569 CapCap
-
285710002631 Winch Interrupter SupportWinch Interrupter Support
-
287710002724 Winch InterrupterWinch Interrupter
-
290710002896 Tie-Rap ClipTie-Rap Clip
-
292710003260 Protective TubingProtective Tubing
-
293710003325 Battery SupportBattery Support
