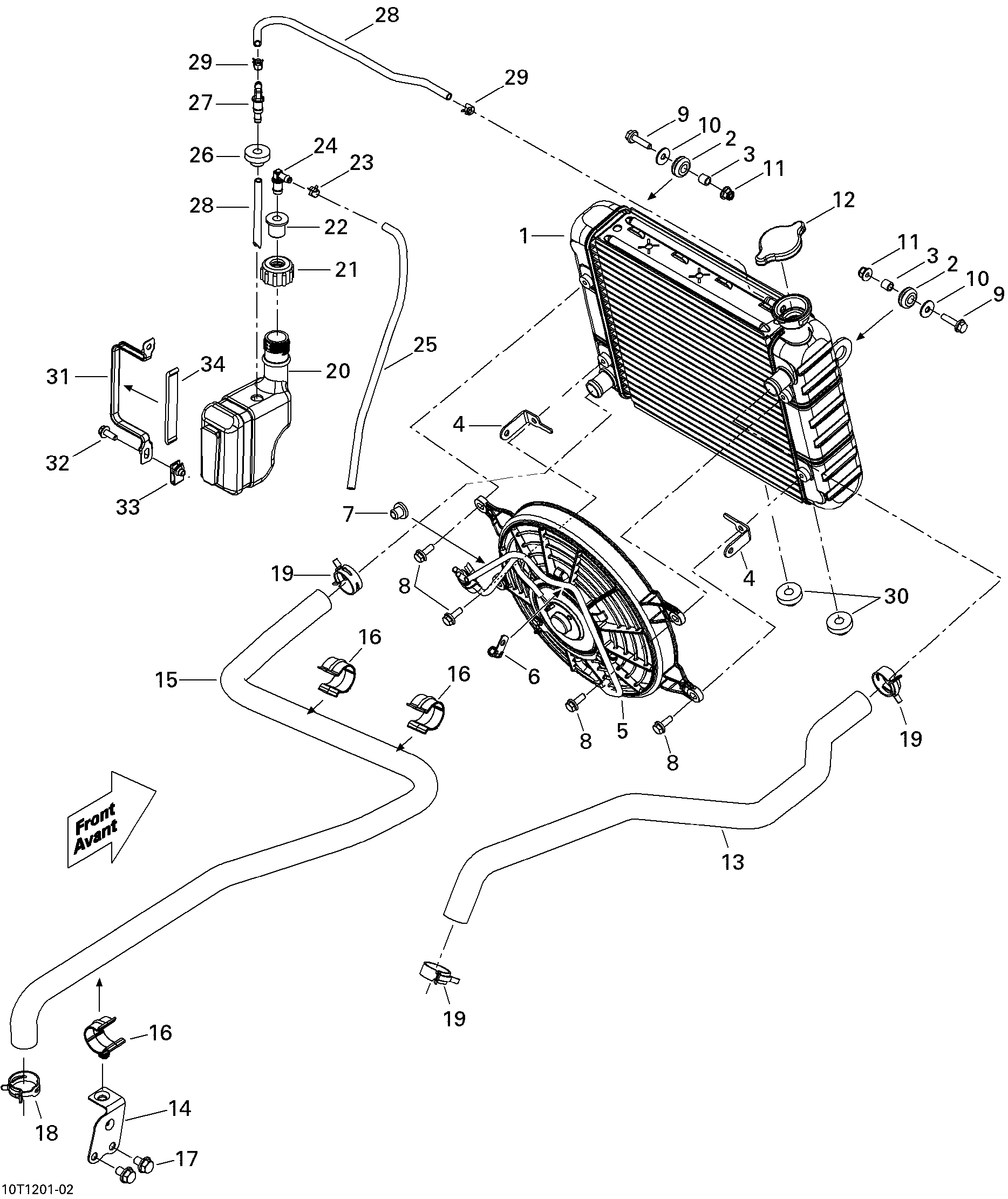

01- Cooling System для BRP Outlander Max STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1709200307 Radiator Ass'yRadiator Ass'y
-
2293720053 GrommetGrommet
-
3293900105 BushingBushing
-
4709200284 SupportSupport
-
5709200371 Fan Ass'yFan Ass'y
-
6705600459 ClampClamp
-
7293720029 GrommetGrommet
-
8207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10250200082 Flat WasherFlat Washer
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12709200207 Pressure CapPressure Cap
-
13709200077 Radiator Inlet HoseRadiator Inlet Hose
-
14709200206 Hose SupportHose Support
-
15709200198 Hose Outlet RadiatorHose Outlet Radiator
-
16275500526 RetainerRetainer
-
17207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
18293650108 Norma Spring ClampNorma Spring Clamp
-
19293650109 Norma Spring ClampNorma Spring Clamp
-
20709200099 Coolant TankCoolant Tank
-
21548872589 Coolant Reserve Tank CapCoolant Reserve Tank Cap
-
22293830136 GrommetGrommet
-
23414554800 Spring ClampSpring Clamp
-
24414580700 Male ConnectorMale Connector
-
25415080200 Hose, PolyurethaneHose, Polyurethane
-
26709200285 GrommetGrommet
-
27414580600 Elbow Male ConnectorElbow Male Connector
-
28415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
29414554800 Spring ClampSpring Clamp
-
30709200285 GrommetGrommet
-
31709200080 Tank AnchorTank Anchor
-
32210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
33250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
34293250087 Gasket, NeopreneGasket, Neoprene
