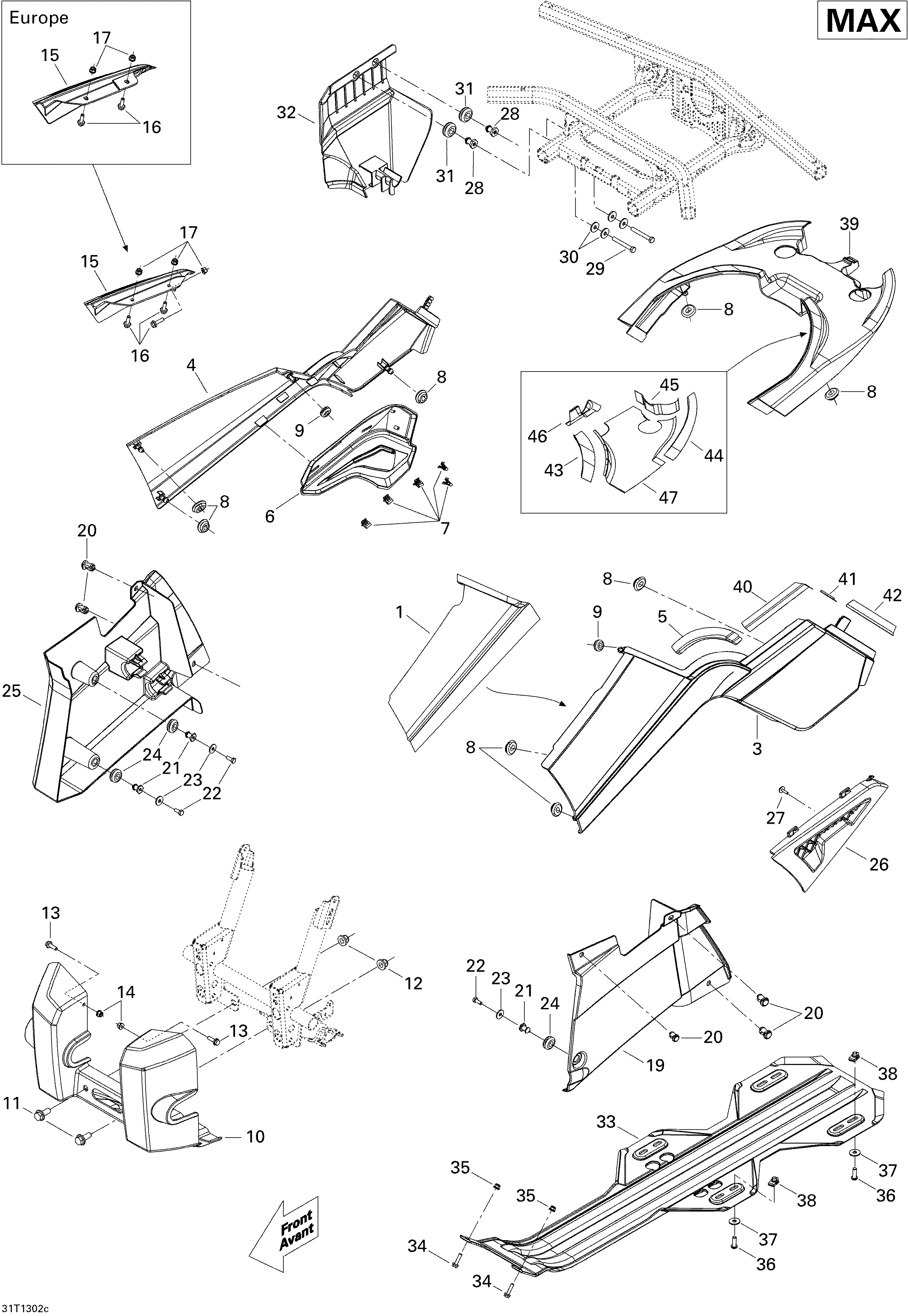

09- Body And Accessories 3 для BRP Outlander Max STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1705002491 Reflective SheetReflective Sheet
-
3705003483 LH Side Panel, Yellow. YellowLH Side Panel, Yellow. Yellow
-
3705003484 LH Side Panel, Red. RedLH Side Panel, Red. Red
-
4705003678 RH Side Panel, Yellow. YellowRH Side Panel, Yellow. Yellow
-
4705003679 RH Side Panel, Red. RedRH Side Panel, Red. Red
-
5705003004 Reflective SheetReflective Sheet
-
6705002664 Muffler CoverMuffler Cover
-
7517302785 ClipClip
-
8705000321 Oval WasherOval Washer
-
9705003264 GrommetGrommet
-
10705003495 Guard Plate. STDGuard Plate. STD
-
10705003496 Guard Plate. XTGuard Plate. XT
-
11207602544 Hex. Flanged Screw M10 X 25. STDHex. Flanged Screw M10 X 25. STD
-
11205003544 Socket Screw M10 X 35. XTSocket Screw M10 X 35. XT
-
12233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
13207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15705001529 Lever Indicator. North America, InternationalLever Indicator. North America, International
-
15705003028 Lever Indicator. EuropeLever Indicator. Europe
-
16207662044 Hex. Flanged Screw M6 X 20. North America, InternationalHex. Flanged Screw M6 X 20. North America, International
-
16207662044 Hex. Flanged Screw M6 X 20. EuropeHex. Flanged Screw M6 X 20. Europe
-
17233261414 Hex. Flanged Elastic Nut M6. North America, InternationalHex. Flanged Elastic Nut M6. North America, International
-
17233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
19705000652 LH Inner FenderLH Inner Fender
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
21517303439 KnobKnob
-
22250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
23391301600 WasherWasher
-
24293720053 GrommetGrommet
-
25705002640 Inner FenderInner Fender
-
26705002493 Console CapConsole Cap
-
27250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
28517303439 KnobKnob
-
29241154540 Hex. Screw K50 X 45Hex. Screw K50 X 45
-
30391301600 WasherWasher
-
31293720053 GrommetGrommet
-
32705004036 Thread CoverThread Cover
-
33715000688 Skid Plate KitSkid Plate Kit
-
34207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
37234082410 Flat Washer 8 mmFlat Washer 8 mm
-
38250100111 Panel Nut M8Panel Nut M8
-
39705002952 Storage Tray, Yellow. YellowStorage Tray, Yellow. Yellow
-
39705002954 Storage Tray, Red. RedStorage Tray, Red. Red
-
40705003005 Reflective SheetReflective Sheet
-
41705003033 Reflective SheetReflective Sheet
-
42705003034 Reflective SheetReflective Sheet
-
43705003082 Reflective SheetReflective Sheet
-
44705003083 Reflective SheetReflective Sheet
-
45705003084 Reflective SheetReflective Sheet
-
46705003085 Reflective SheetReflective Sheet
-
47705003086 Reflective SheetReflective Sheet
