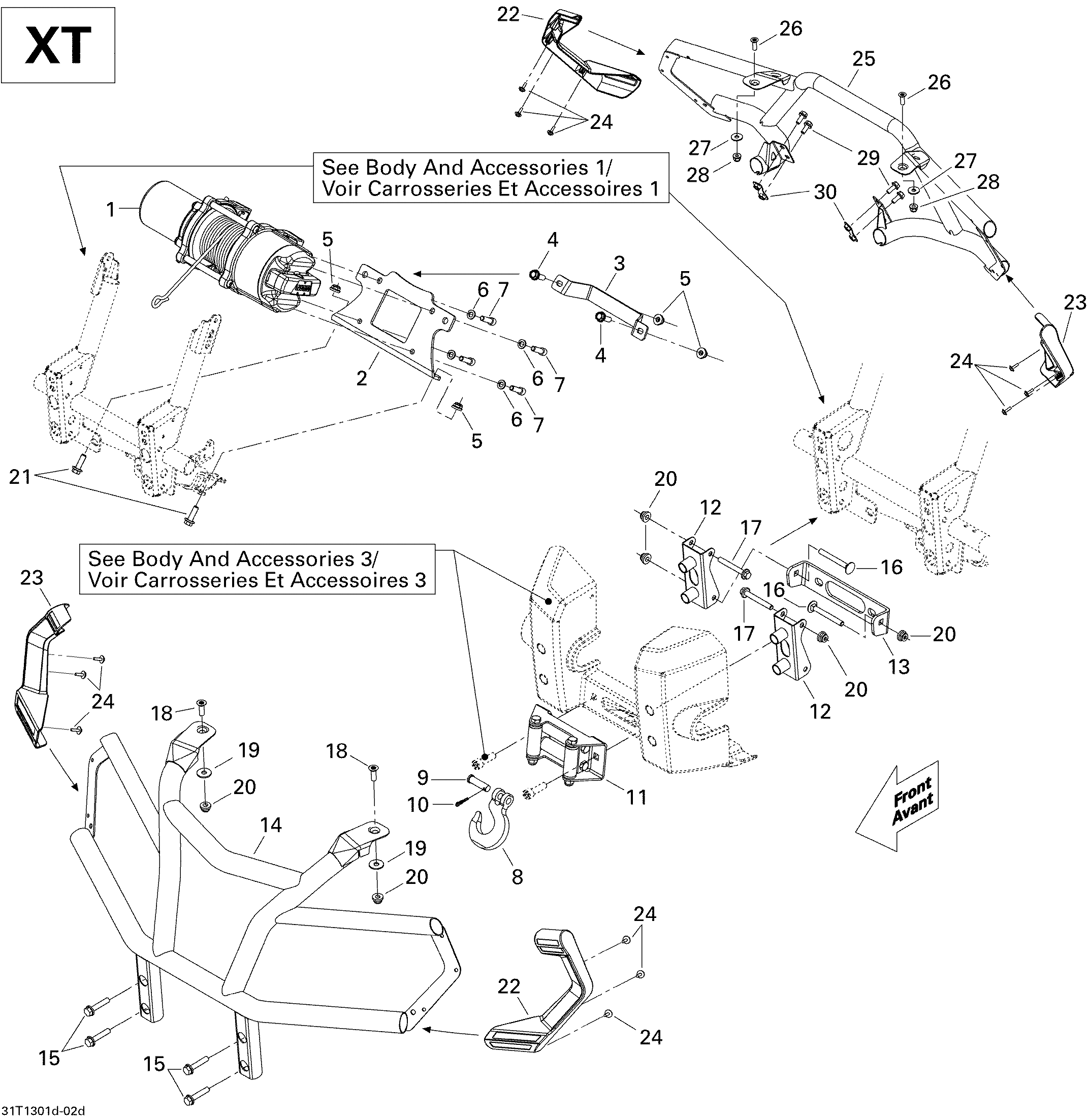

09- Body And Accessories XT для BRP Outlander Max STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1705003296 Winch. XTWinch. XT
-
2705004278 Mounting Plate, Black. XTMounting Plate, Black. XT
-
3705001460 Winch Bracket, Black. XTWinch Bracket, Black. XT
-
4207682544 Hex. Flanged Screw M8 X 25. XTHex. Flanged Screw M8 X 25. XT
-
5233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
6234181401 Lock Washer 8 mm. XTLock Washer 8 mm. XT
-
7205082044 Socket Head Screw M8 X 20. XTSocket Head Screw M8 X 20. XT
-
8705002329 Hook. XTHook. XT
-
9250400021 Clevis Pin. XTClevis Pin. XT
-
10250400022 Cotter Pin. XTCotter Pin. XT
-
11715000011 Winch Roller. XTWinch Roller. XT
-
12705003828 Bumper Bracket. XTBumper Bracket. XT
-
13705003649 Winch Bracket. XTWinch Bracket. XT
-
14705002812 Front Bumber. XTFront Bumber. XT
-
15207584044 Hex. Flanged Screw M8 X 40, Scotch Grip. XTHex. Flanged Screw M8 X 40, Scotch Grip. XT
-
16207787044 Carriage Bolt M8 X 70. XTCarriage Bolt M8 X 70. XT
-
17207686044 Hex. Flanged Screw M8 x 60. XTHex. Flanged Screw M8 x 60. XT
-
18235482584 Torx Screw M8 X 25. XTTorx Screw M8 X 25. XT
-
19234082410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
20233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
21207682544 Hex. Flanged Screw M8 X 25. XTHex. Flanged Screw M8 X 25. XT
-
22705002802 LH Front Cap. XTLH Front Cap. XT
-
23705002803 RH Front Cap. XTRH Front Cap. XT
-
24250000113 Screw M4 X 16, Type K-40. XTScrew M4 X 16, Type K-40. XT
-
25705002806 Rear Bumber. XTRear Bumber. XT
-
26235482584 Torx Screw M8 X 25. XTTorx Screw M8 X 25. XT
-
27234082410 Flat Washer 8 mm. XTFlat Washer 8 mm. XT
-
28233281414 Hex. Flanged Elastic Nut M8. XTHex. Flanged Elastic Nut M8. XT
-
29207582084 Hex. Flanged Screw M8 X 20, Scotch Grip. XTHex. Flanged Screw M8 X 20, Scotch Grip. XT
-
30705003796 Link Plate. XTLink Plate. XT
