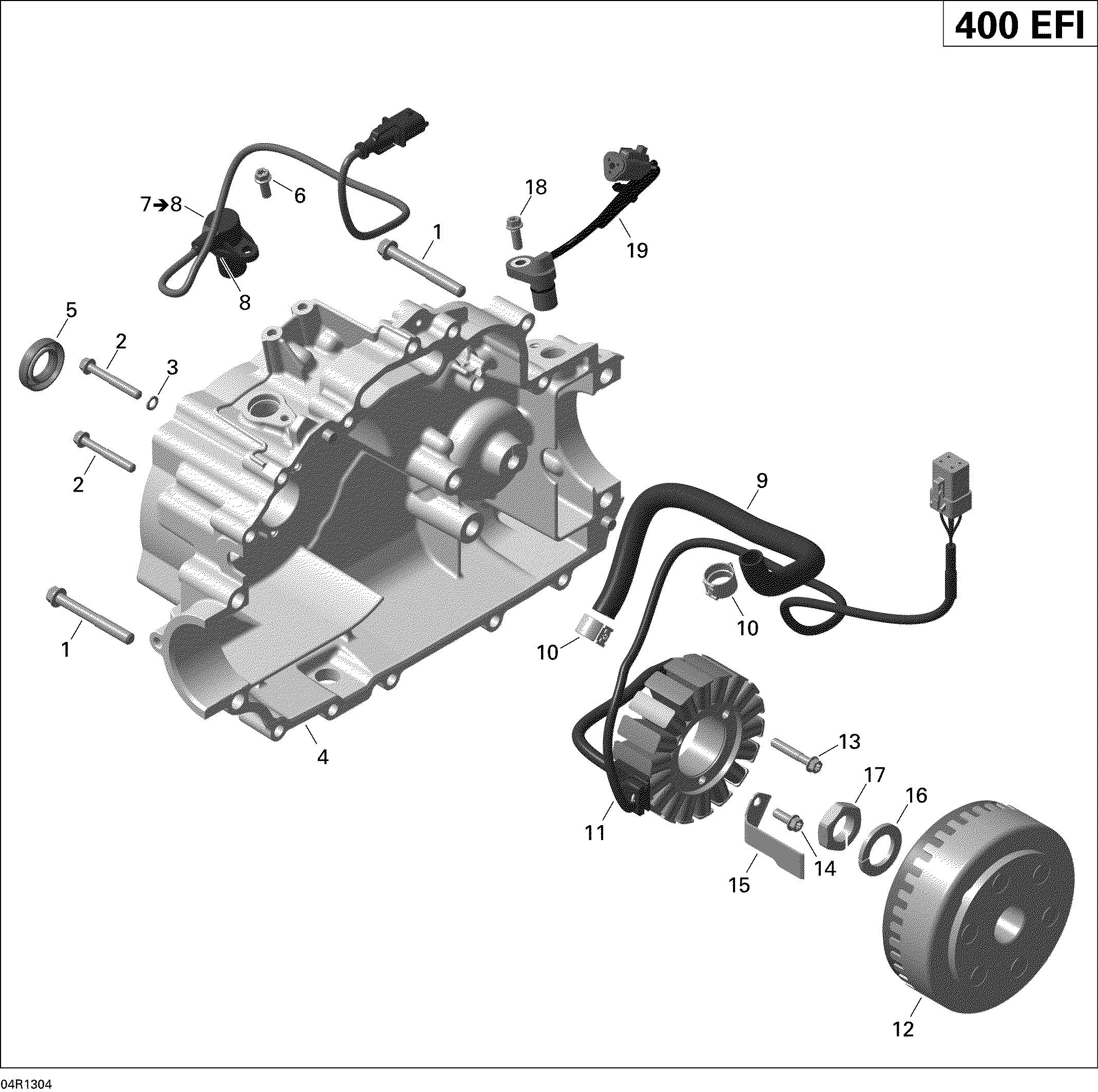

03- Magneto для BRP Outlander Max STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
2420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
3420230415 Seal WasherSeal Washer
-
5420930392 Oil SealOil Seal
-
6420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420966570 Crankshaft Position Sensor Ass'y. Includes 7 to 8Crankshaft Position Sensor Ass'y. Includes 7 to 8
-
8420431580 O-RingO-Ring
-
10420960892 ClipClip
-
11420296907 Stator PlateStator Plate
-
12420296903 Magneto FlywheelMagneto Flywheel
-
13420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
14420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
15420251270 Inner Cable CoverInner Cable Cover
-
16420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
17420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
18420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
19420265626 Speed SensorSpeed Sensor
