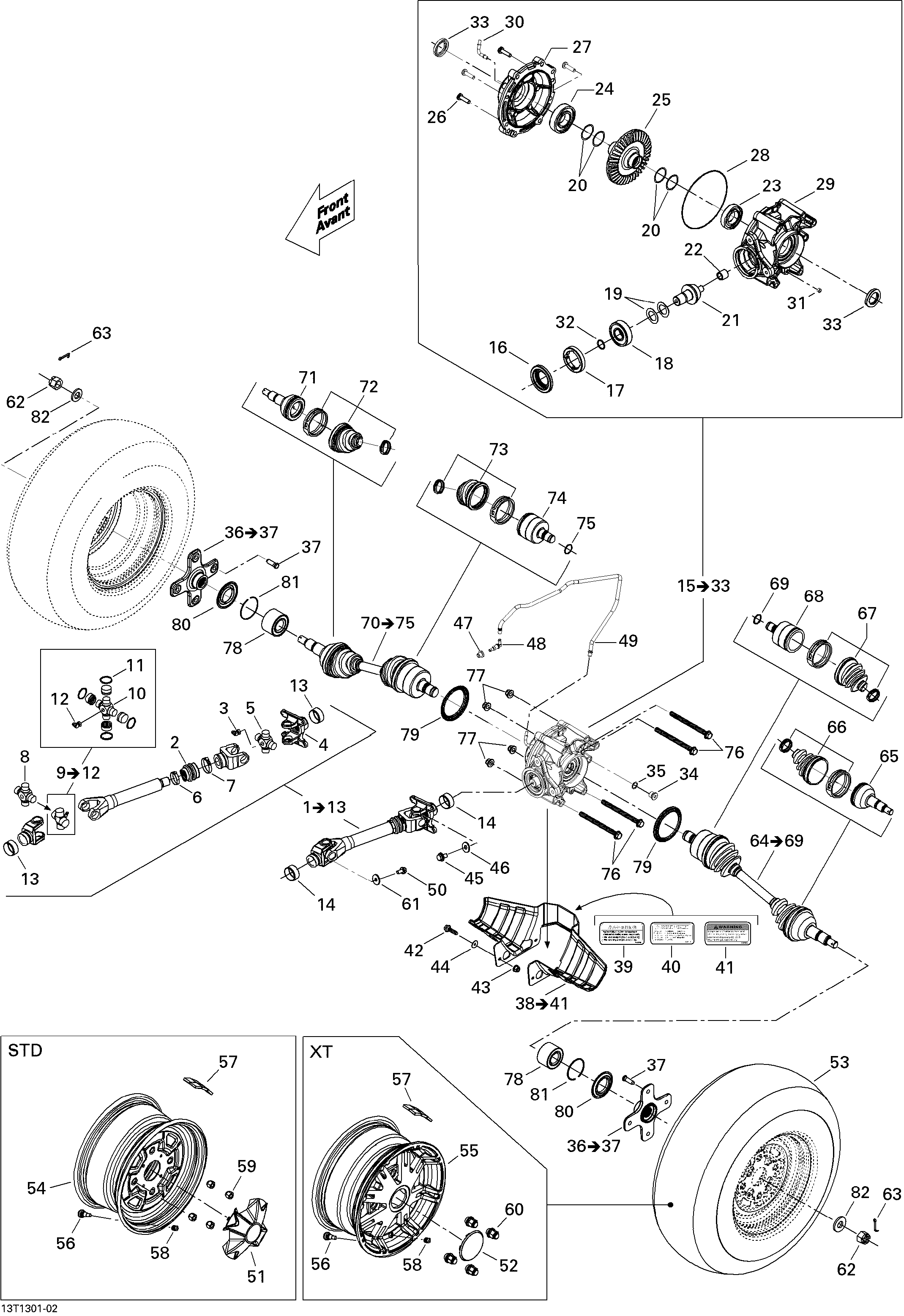

08- Drive System, Rear для BRP Outlander Max STD, XT, 400 EFI - 2013
-
№АртикулНазвание
-
1703500828 Rear Propeller Shaft Kit. Includes 1 to 13Rear Propeller Shaft Kit. Includes 1 to 13
-
2715900118 Rubber BootRubber Boot
-
3715900184 Grease FittingGrease Fitting
-
4715900107 Disc JointDisc Joint
-
5715500371 Universal JointUniversal Joint
-
6509000045 Oetiker Gear ClampOetiker Gear Clamp
-
7293650138 Oetiker Gear ClampOetiker Gear Clamp
-
8715900183 U-JointU-Joint
-
9703500814 Unit Pack Kit. Includes 9 to 12Unit Pack Kit. Includes 9 to 12
-
10715900183 U-JointU-Joint
-
11715900117 Snap RingSnap Ring
-
12703500813 Grease FittingGrease Fitting
-
13705400036 Wear RingWear Ring
-
14705400036 Wear RingWear Ring
-
15705501569 Rear Differential Ass'y. Includes 15 to 33Rear Differential Ass'y. Includes 15 to 33
-
16705400027 Oil SealOil Seal
-
17705500987 NutNut
-
18705500260 Ball BearingBall Bearing
-
19703500049 Pinion Shim KitPinion Shim Kit
-
19705501162 Pinion Gear ShimPinion Gear Shim
-
20703500548 Differential Shim KitDifferential Shim Kit
-
21705501570 10 Teeth Pinion10 Teeth Pinion
-
22705501408 Needle BearingNeedle Bearing
-
23705500749 Ball BearingBall Bearing
-
24705501389 Ball BearingBall Bearing
-
25705501403 36 Teeth Pinion36 Teeth Pinion
-
26705500892 ScrewScrew
-
27705501507 Rear Differential CoverRear Differential Cover
-
28705500265 SealSeal
-
29705501395 Pinion Rear CoverPinion Rear Cover
-
30705500893 Vent ValveVent Valve
-
31705500894 Drain PlugDrain Plug
-
32705500267 O-RingO-Ring
-
33705501196 Oil SealOil Seal
-
34705500504 Fill Level PlugFill Level Plug
-
35705500506 Copper WasherCopper Washer
-
36705501199 Wheel Hub Ass'y. Includes 36 to 37Wheel Hub Ass'y. Includes 36 to 37
-
37250300045 Wheel StudWheel Stud
-
38703500722 Protector Kit. Includes 38 to 41Protector Kit. Includes 38 to 41
-
39704900766 Warning Decal-English-TrailerWarning Decal-English-Trailer
-
41704901489 Warning Decal, Maximum TowingWarning Decal, Maximum Towing
-
42207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
43233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
44250200082 Flat WasherFlat Washer
-
45250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
46250200102 Flat Washer M12Flat Washer M12
-
47293720029 GrommetGrommet
-
48414580600 Elbow Male ConnectorElbow Male Connector
-
49415080200 Hose, PolyurethaneHose, Polyurethane
-
50207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
51705400563 Wheel Cap. STDWheel Cap. STD
-
52705400680 Wheel Cap. XTWheel Cap. XT
-
53705500385 Rear Tire. STD Except EuropeRear Tire. STD Except Europe
-
53705500934 Rear Tire. STD EuropeRear Tire. STD Europe
-
53705500933 Rear Tire. XT Except EuropeRear Tire. XT Except Europe
-
53705500598 Rear Tire. XT EuropeRear Tire. XT Europe
-
54705501607 Black Rear Rim. STDBlack Rear Rim. STD
-
55705500986 Rear Rim. XTRear Rim. XT
-
56705400193 Rim Valve With CapRim Valve With Cap
-
57705501385 1/2 OZ Weight1/2 OZ Weight
-
58293000110 Valve CapValve Cap
-
59250100042 Wheel Nut. STDWheel Nut. STD
-
60250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
61211200041 WasherWasher
-
62250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
63250400036 Cotter PinCotter Pin
-
64705501485 LH Homocinetic Joint. Includes 64 to 69. Up to February 2013LH Homocinetic Joint. Includes 64 to 69. Up to February 2013
-
65705501782 CV Joint. Up to February 2013CV Joint. Up to February 2013
-
66705501783 Wheel Boot Kit. Up to February 2013Wheel Boot Kit. Up to February 2013
-
67705501784 Differential Boot Kit. Up to February 2013Differential Boot Kit. Up to February 2013
-
69705501781 Circlip. Up to February 2013Circlip. Up to February 2013
-
64705501485 LH Homocinetic Joint. Includes 64 to 69. From March 2013 and UpLH Homocinetic Joint. Includes 64 to 69. From March 2013 and Up
-
65705501776 CV Joint. From March 2013 and UpCV Joint. From March 2013 and Up
-
66705501777 Rubber Boot Kit. From March 2013 and UpRubber Boot Kit. From March 2013 and Up
-
67705501777 Rubber Boot Kit. From March 2013 and UpRubber Boot Kit. From March 2013 and Up
-
68705501780 Plunging Joint. From March 2013 and UpPlunging Joint. From March 2013 and Up
-
69705501781 Circlip. From March 2013 and UpCirclip. From March 2013 and Up
-
70705501486 RH Homocinetic Joint. Includes 70 to 75. Up to February 2013RH Homocinetic Joint. Includes 70 to 75. Up to February 2013
-
71705501782 CV Joint. Up to February 2013CV Joint. Up to February 2013
-
72705501783 Wheel Boot Kit. Up to February 2013Wheel Boot Kit. Up to February 2013
-
73705501784 Differential Boot Kit. Up to February 2013Differential Boot Kit. Up to February 2013
-
75705501781 Circlip. Up to February 2013Circlip. Up to February 2013
-
70705501486 RH Homocinetic Joint. Includes 70 to 75. From March 2013 and UpRH Homocinetic Joint. Includes 70 to 75. From March 2013 and Up
-
71705501776 CV Joint. From March 2013 and UpCV Joint. From March 2013 and Up
-
72705501777 Rubber Boot Kit. From March 2013 and UpRubber Boot Kit. From March 2013 and Up
-
73705501777 Rubber Boot Kit. From March 2013 and UpRubber Boot Kit. From March 2013 and Up
-
74705501780 Plunging Joint. From March 2013 and UpPlunging Joint. From March 2013 and Up
-
75705501781 Circlip. From March 2013 and UpCirclip. From March 2013 and Up
-
76250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
77233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
78293350040 Cone BearingCone Bearing
-
79705500901 Wear SleeveWear Sleeve
-
80705501121 Wear SleeveWear Sleeve
-
81293370019 CirclipCirclip
-
82250200049 Spring WasherSpring Washer
